Locating Front Panel Features

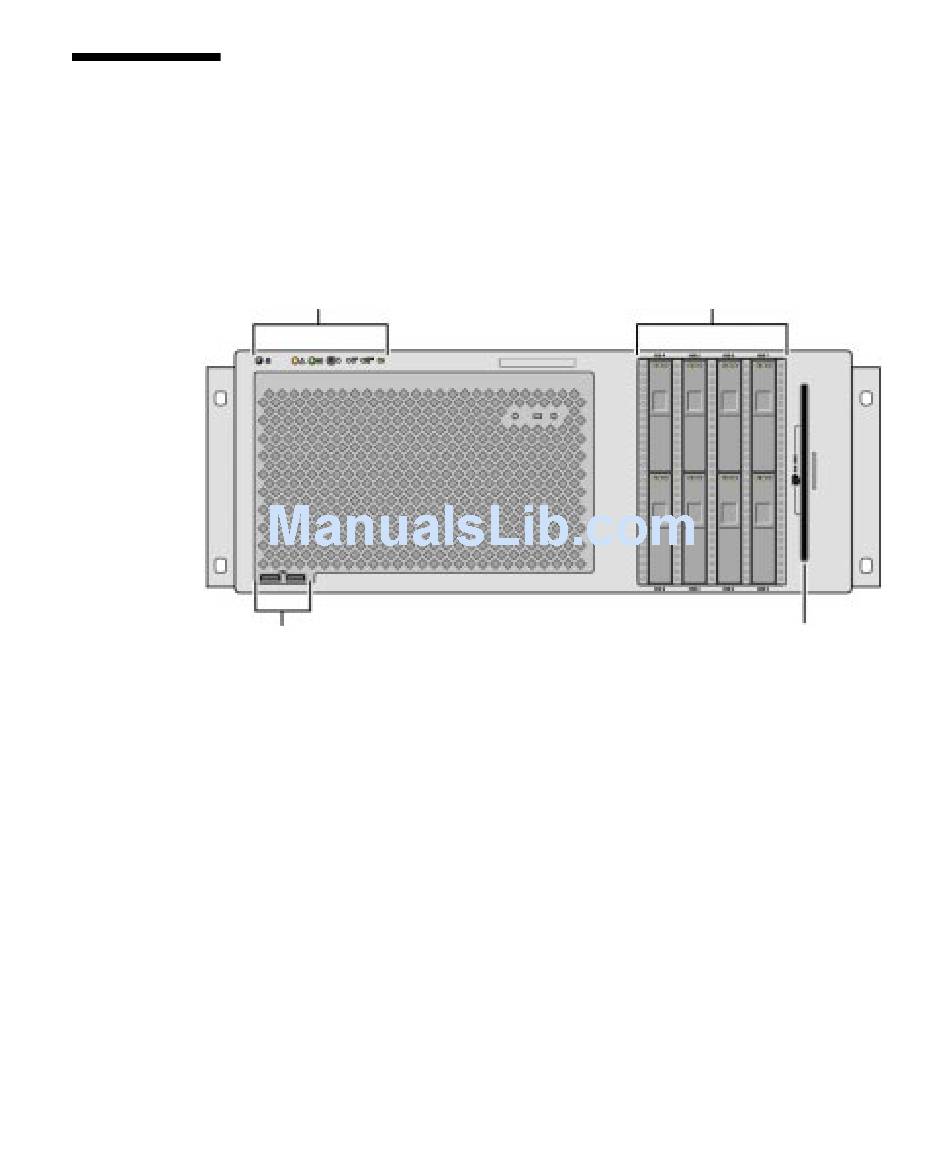

The illustration below shows the system features that you can access from the front
panel.
SAS disk drives (8)
Status Indicators/control panel
USB ports Removable media drive
Front Panel Features
FIGURE 1-1
For information about front panel controls and indicators, see "Front Panel
Indicators" on page 10.
The system is configured with up to eight disk drives, which are accessible from the
front of the system.
Front Panel Indicators
Several front panel indicators provide general system status, alert you to system
problems, and help you to determine the location of system faults.
During system startup, the indicators are toggled on and off to verify that each one
is working correctly. Indicators located on the front panel work in conjunction with
specific fault indicators. For example, a fault in the power supply subsystem
Chapter 1 System Overview 9
