System Fan Trays and Fan Indicators

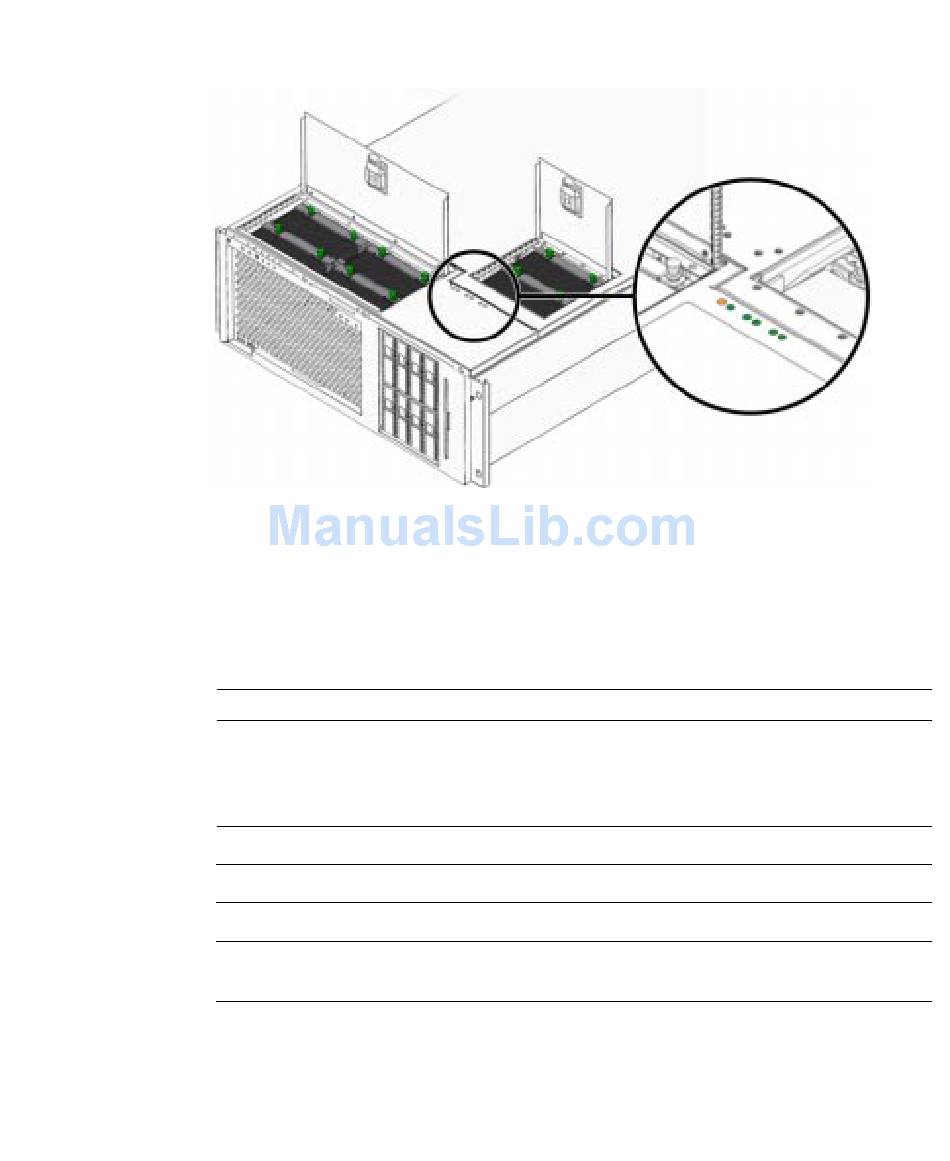

FIGURE 4-7
Refer to these indicators to determine which fan tray needs to be replaced.
provides a description of the fan tray indicators.
TABLE 4-6
Fan Tray Status Indicators
TABLE 4-6
Indicator Color
Power/OK Green
Service Required Yellow
Note – If a fan tray is not present, its corresponding indicator is not lit.
Note – If a fan tray is faulty, the system Service Required indicator is also lit. See
"Front Panel Indicators" on page 10
Notes
This indicator is lit when the system is running and the
fan tray is operating normally.
This indicator is lit when the system is running and the
fan tray is faulty.
for more information.
Chapter 4 Configuring Hardware 93
