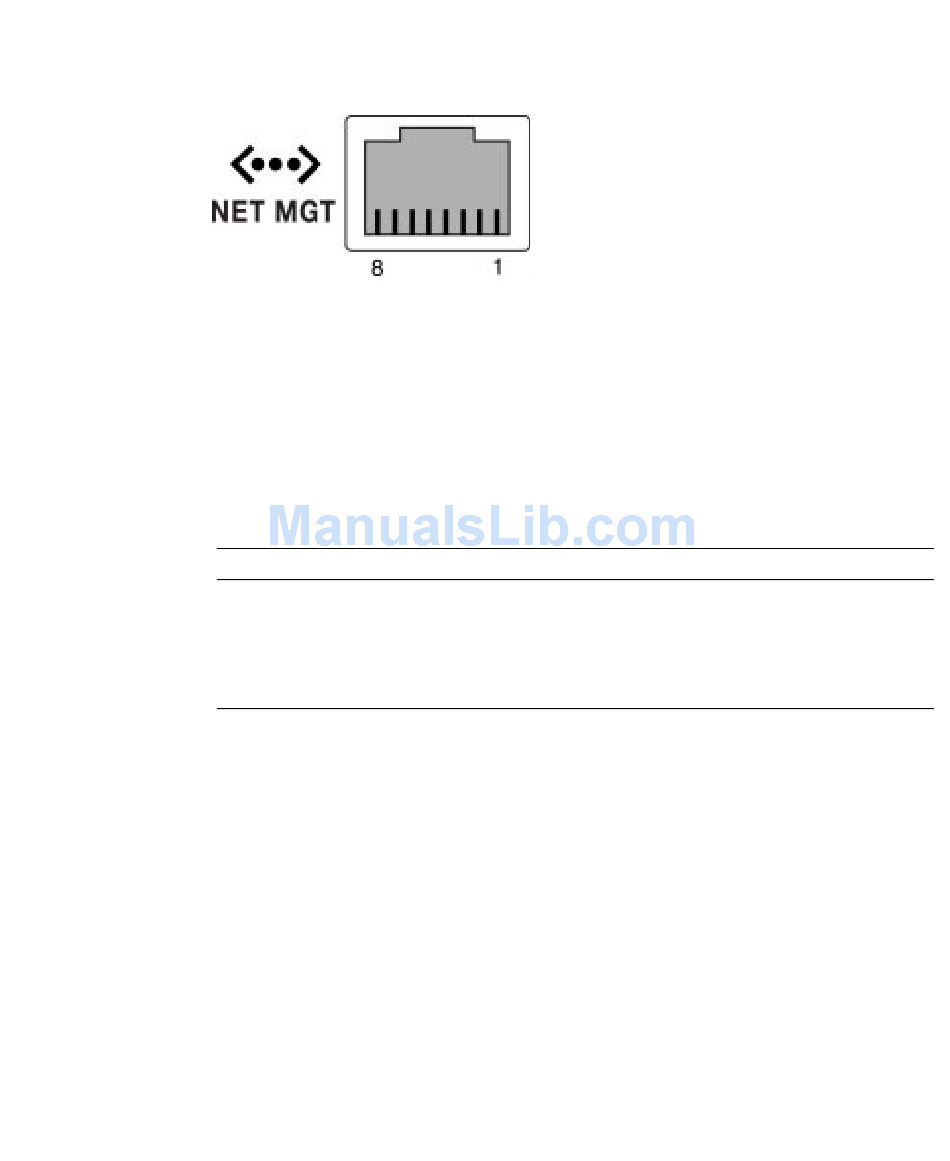

Network Management Connector Diagram
Network Management Connector Diagram
FIGURE A-2
Network Management Connector Signals
For Network Management connector signals, see
Network Management Connector Signals
TABLE A-2
Pin
Signal Description
1
Transmit Data +
2
Transmit Data –
3
Receive Data +
4
Common Mode Termination
.
TABLE A-2
Pin
Signal Description
5
Common Mode Termination
6
Receive Data –
7
Common Mode Termination
8
Common Mode Termination
Appendix A
Connector Pinouts
237
