4.1.11

ExpressCard and PCI Express Mini Card

4.1.11.1

ExpressCard

The conga‑CEVAL is equipped with an ExpressCard slot (connector X16). ExpressCard is a small, modular add‑in card designed to replace
common PCMCIA and PC Cards. It takes advantage of the scalable, high-bandwidth serial PCI Express and USB 2.0 interfaces to provide
much higher data rates. COM Express™ modules offer support for up to two ExpressCard slots. More information about the ExpressCard
Standard can be found at http://www.expresscard.org.
The following table lists the default pinout of the ExpressCard slot. It utilizes USB port 6 and PCI Express lane 2 by default.
Pin Signal
1 GND
USB6-
2
USB6+
3
CPUSB#
4
5 RSVD
6 RSVD
SMB_CK
7
SMB_DAT
8
9 +1.5V
10 +1.5V
11 WAKE0#
12 +3.3V Standby
13 EXCD0_PERST#

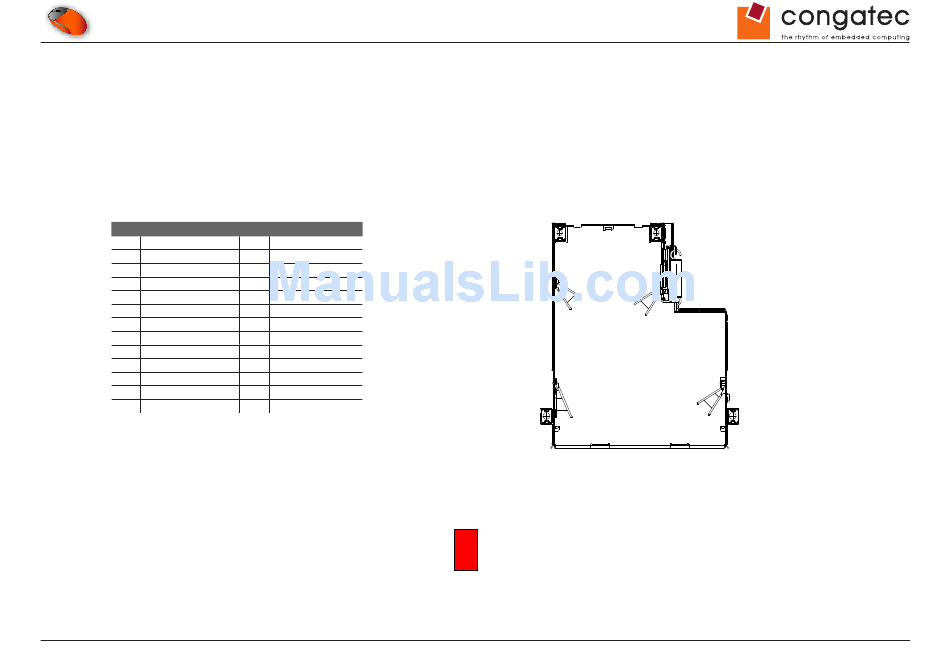

LED D24 is a red LED that indicates an 'Overcurrent Event' has occurred in the ExpressCard slot.
Copyright © 2012 congatec AG
Pin Signal
14 +3.3V
15 +3.3V
16 CLKREQ#
17 EXCD0_CPPE#
18 PCIE_CLKC0‑
19 PCIE_CLKC0+
20 GND
21 PCIE_RX2‑
22 PCIE_RX2+
23 GND
24 PCIE_TX2‑
25 PCIE_TX2+
26 GND
D24
