4.1.11.2

PCI Express Mini Card

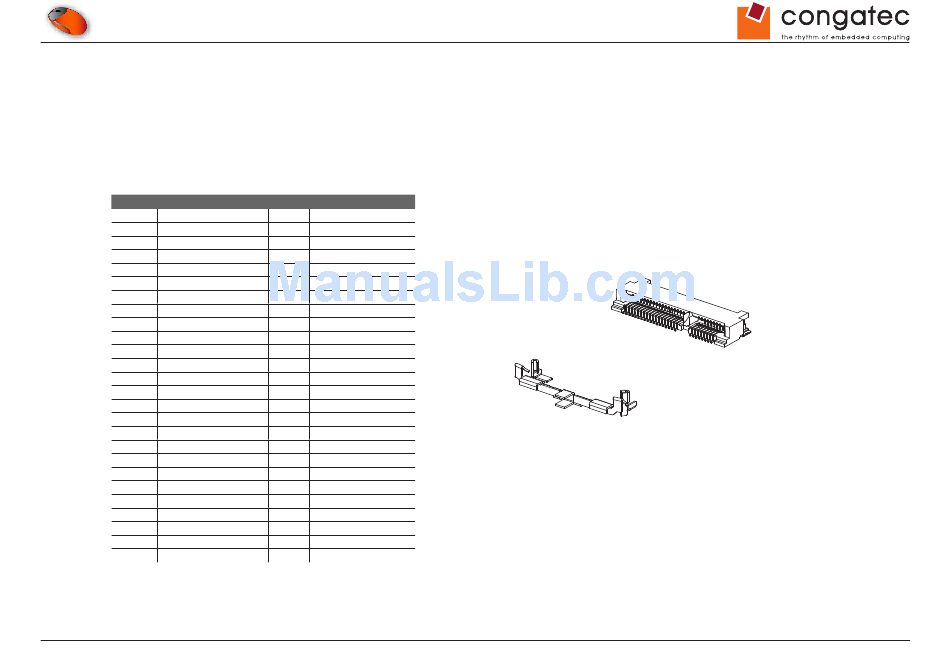

The conga‑CEVAL is equipped with a PCI Express Mini Card socket (M40). PCI Express Mini Card is a unique small size form factor optimized
for mobile computing platforms equipped with communication applications such as Wireless LAN. The small footprint connector can be
implemented on carrier board designs providing the ability to insert different removable PCI Express Mini Cards. Using this approach gives the
flexibility to mount an upgradable, standardized PCI Express Mini Card device to the carrier board without additional redesign cost. The PCI
Express Mini Card uses USB port 7 and PCI Express lane 5 by default.
The following table lists the default pinout of the PCI Express Mini Card.
Pin Signal
1 WAKE0#
3 RSVD
5 RSVD
7 CLKREQ#
9 GND
11 PCIE_CLKC1‑
13 PCIE_CLKC1+
15 GND
17 RSVD
19 RSVD
21 GND
23 PCIE_RX5‑
25 PCIE_RX5+
27 GND
29 GND
31 PCIE_TX5‑
33 PCIE_TX5+
35 GND
37 RSVD
39 RSVD
41 RSVD
43 RSVD
45 RSVD
47 RSVD
49 RSVD
51 RSVD
Copyright © 2012 congatec AG
Pin Signal
2 +3.3V
4 GND
6 +1.5V
8 N.C.
10 N.C.
12 N.C.
14 N.C.
16 N.C.
18 GND
20 RSVD
22 EXCD1_PERST#
24 +3.3V Standby
26 GND
28 +1.5V
SMB_CK
30
SMB_DAT
32
34 GND
USB7-
36
USB7+
38
40 GND
42 LED_WWAN#
44 LED_WLAN#
46 LED_WPAN#
48 +1.5V
50 GND
52 +3.3V
