4.2.3

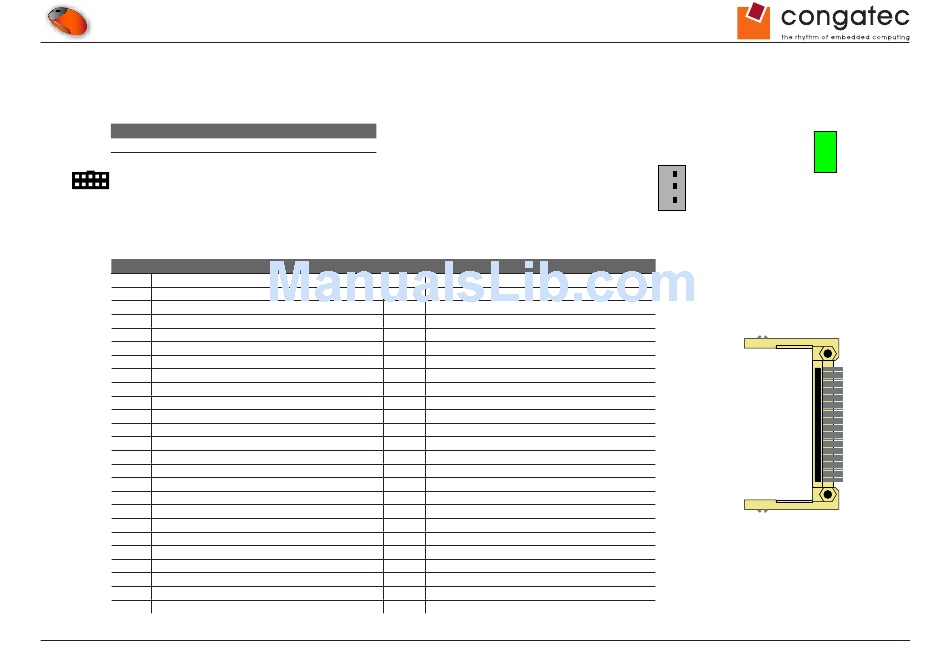

CompactFlash Socket

The conga-CEVAL has a CompactFlash socket (X26) that is connected to the PATA port. The CF card can be configured as either a Master or
Slave device through the use of jumper X21. LED D25 indicates activity on the PATA port.
Configuration
Jumper X21
1 ‑ 2 CF Slave (default)
2 ‑ 3 CF Master
Connector Type
X21: 2.54mm grid jumper.
The following table lists the pinout of the CompactFlash socket.
Pin Signal
1 GND
2 IDE_D3
3 IDE_D4
4 IDE_D5
5 IDE_D6
6 IDE_D7
7 IDE_CS1#
8 A10
9 OE
10 A9
11 A8
12 A7
13 +3.3V
14 A6
15 A5
16 A4
17 A3
18 IDE_A2
19 IDE_A1
20 IDE_A0
21 IDE_D0
22 IDE_D1
23 IDE_D2
24 N.C.
25 CD2
Copyright © 2012 congatec AG
Pin Signal
26 CD1
27 IDE_D11
28 IDE_D12
29 IDE_D13
30 IDE_D14
31 IDE_D15
32 IDE_CS2#
33 VS1
34 IDE_IOR#
35 IDE_IOW#
36 CF_WE#
37 IDE_INTRQ
38 +3.3V
39 CSEL
40 N.C.
41 HDRST#
42 IDE_RDY
43 IDE_DRQ
44 IDE_ACK
45 DASP_CF
CBLID_P#
46
47 IDE_D8
48 IDE_D9
49 IDE_D10
50 GND
CEVA_c_m10
CF Master/Slave
Config
(X21)
3
2
1
D25
40/47
