Row C
Pin
C40 PCI_AD19
C41 GND (FIXED)
C42 PCI_AD21
C43 PCI_AD23
PCI_C/BE3#
C44
C45 PCI_AD25
C46 PCI_AD27
C47 PCI_AD29
C48 PCI_AD31
C49 PCI_IRQA#
PCI_IRQB#
C50
C51 GND (FIXED)
C52 PEG_RX0+
C53 PEG_RX0‑
C54 TYPE0#
C55 PEG_RX1+
4.2.1

PCI Express Graphics (PEG)

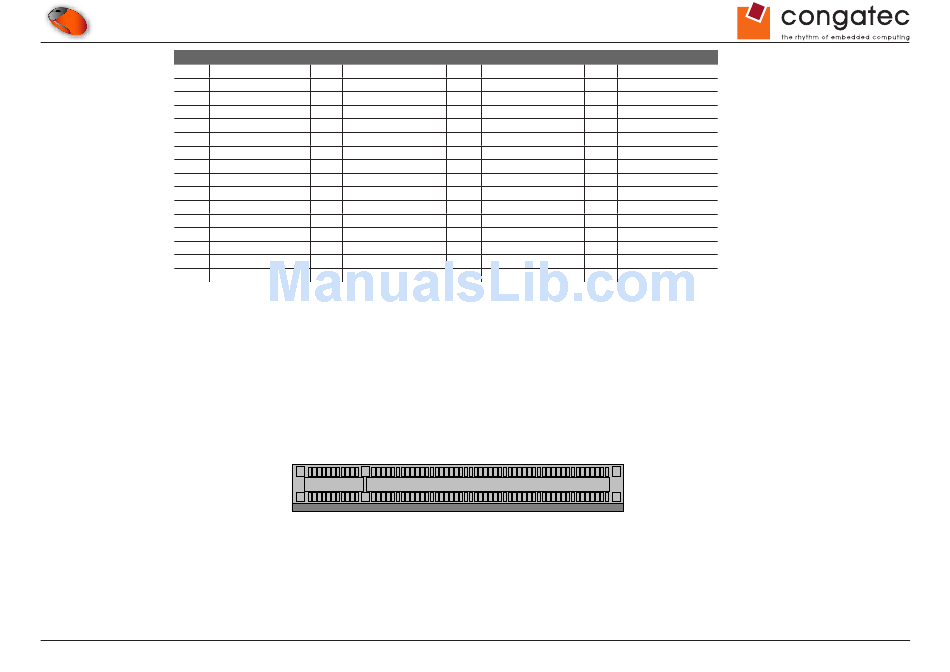

The PEG Port (connector X29) utilizes PCI Express lanes 16‑32 and is suitable to drive a x16 link for an external high‑performance PCI
Express Graphics card. It supports a theoretical bandwidth of up to 4 GB/s. For information about the pinout of the PEG port connector refer to
the 'PCI Express Card Electromechanical Specification, Rev. 1.1'.
Copyright © 2012 congatec AG
Row D Row C
Pin Pin
D40 PCI_AD22 C95 PEG_RX13‑
D41 GND (FIXED) C96 GND
D42 PCI_AD24 C97 DDPD_CTRLCLK
D43 PCI_AD26 C98 PEG_RX14+
D44 PCI_AD28 C99 PEG_RX14‑
D45 PCI_AD30 C100 GND (FIXED)
D46 PCI_IRQC# C101 PEG_RX15+
D47 PCI_IRQD# C102 PEG_RX15‑
D48 PCI_CLKRUN# C103 GND
D49 PCI_M66EN C104 VCC_12V
D50 PCI_CLK C105 VCC_12V
D51 GND (FIXED) C106 VCC_12V
D52 PEG_TX0+ C107 VCC_12V
D53 PEG_TX0‑ C108 VCC_12V
D54 PEG_LANE_RV# C109 VCC_12V
D55 PEG_TX1+ C110 GND (FIXED)
(X29)
CEVA_c_m10
Row D
Pin
D95 PEG_TX13‑
D96 GND
PEG_ENABLE#
D97
D98 PEG_TX14+
D99 PEG_TX14‑
D100 GND (FIXED)
D101 PEG_TX15+
D102 PEG_TX15‑
D103 GND
D104 VCC_12V
D105 VCC_12V
D106 VCC_12V
D107 VCC_12V
D108 VCC_12V
D109 VCC_12V
D110 GND (FIXED)
