VGA

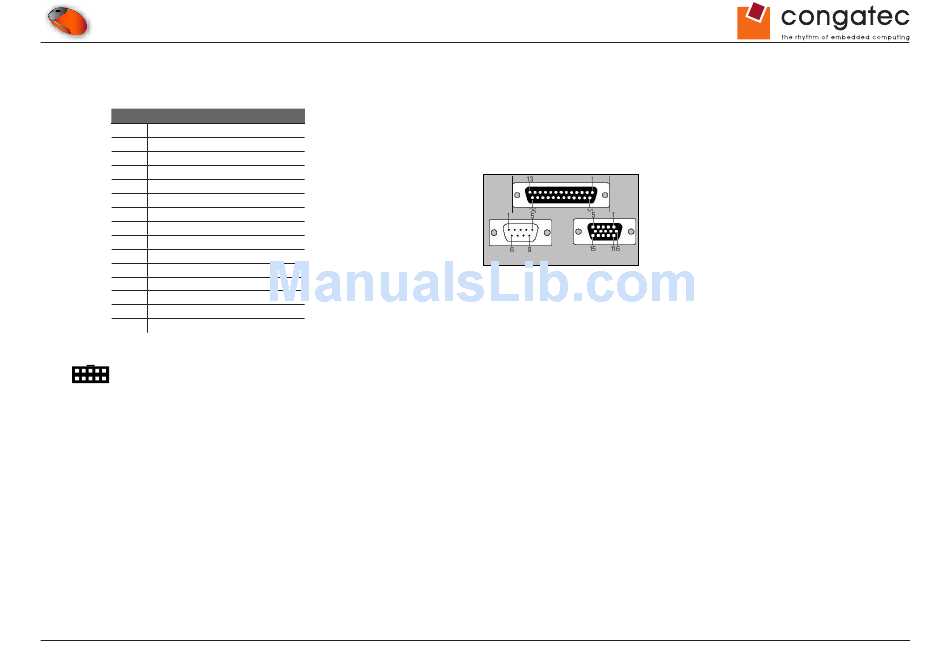

A CRT monitor can be connected using the X55 connector.
Pin Signal
1 RED
2 GREEN
BLUE
3
4 N.C.
5 GND
6 GND
7 GND
8 GND
9 DDC Power
10 GND
11 N.C.
12 DDC DAT
13 HSYNC
14 VSYNC
15 DDC CLK
Connector Type
VGA (X55): 15 pin, high density DSUB female
