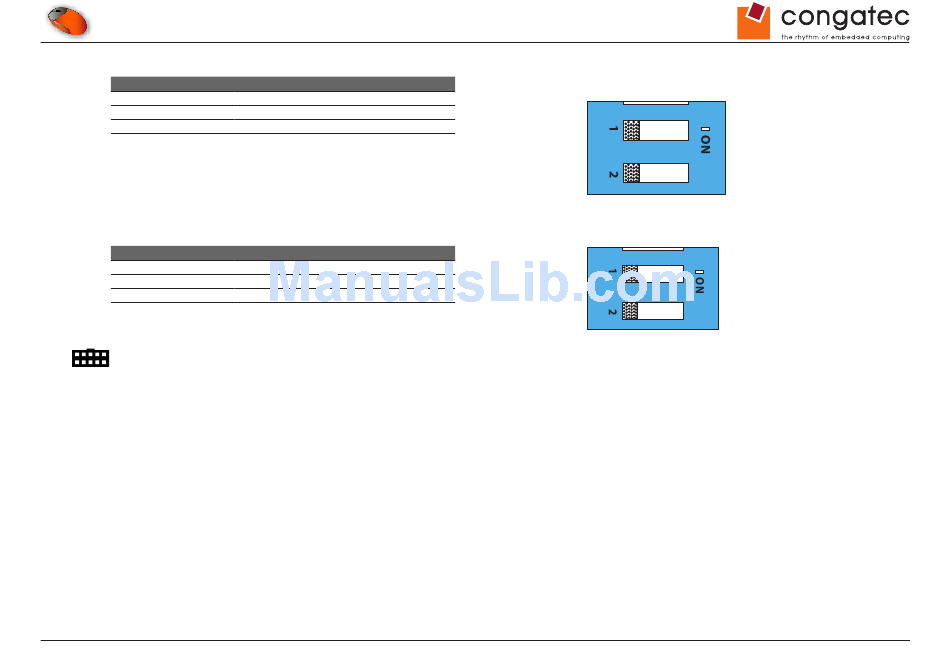

The DIP switch M52 enables or disables the Super I/O and the KB Controller.
DIP Switch M52
SW1 On
SW1 Off
SW2 On
SW2 Off
The LPC Super IO address can be selected with the DIP switch M53.
DIP Switch M53
SW1 On
SW1 Off
SW2 On
SW2 Off
Connector Type
Mouse and Keyboard (X54): 6 pin MINI-DIN female
COM1 (X55): 9 pin, D-SUB male.
LPT1 (X55): 24 pin, D-SUB female. VGA: 15 pin, high density D-SUB female.
COM2 (X28): 10 pin, 2 row 2.54mm grid header.
Copyright © 2012 congatec AG
Configuration
Super I/O Controller Enabled (default)
Super I/O Controller Disabled
KB Controller Enabled (default)
KB Controller Disabled
Configuration
Super I/O Controller PnP reg. 4Eh
Super I/O Controller PnP reg. 2Eh (default)
No defaults for FDC UARTs LPT
Default setting for FDC UARTs LPT
DIP SWITCH
DIP SWITCH
CEVA_c_m10
(M52)
(M53)
