Flat Panel and Backlight Power Supply Connection
4.1.9.2

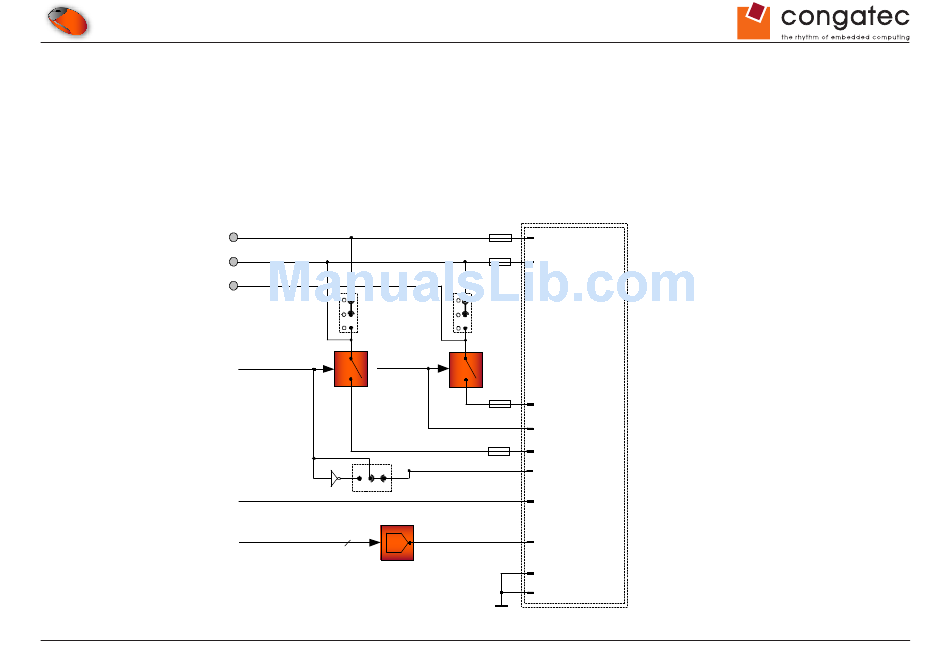

The following diagram shows a typical connection possibility for powering panel/backlight by either the SW_VDD/SW_BACK signals or by
using DIGON/BL_ON for external power switches.
• Signals 1‑10 correspond to signals 1‑10 found on the X2 connector.
• X66, X67 and X69 represent jumpers X66, X67 and X69 found on the conga-CEVAL.
• The conga‑CEVAL carrier board is equipped with a Maxim MAX5362 device referred to in the diagram below as "DAC". The DAC is a 6‑bit
digital to analog converter..
+12V
+5V
+3.3V
Copyright © 2012 congatec AG
1
X67
2
3
LVDS_VDD_EN
LVDS_BKLT_EN
X69
3
2 1
LVDS_BKLT_CTRL
I2C
2
DAC
X2
2.0A
[4] +12V
1.5A
[3] +5V
1
X66
2
3
1.5A
[1] SW_VDD
[5] DIGON
2.0A
[2] SW_BACK
[6] BL_ON
[8] Backlight Control
from COM Express Module
[7] Backlight Control
from DAC
[9] GND
[10] GND
CEVA_c_m10
30/47
