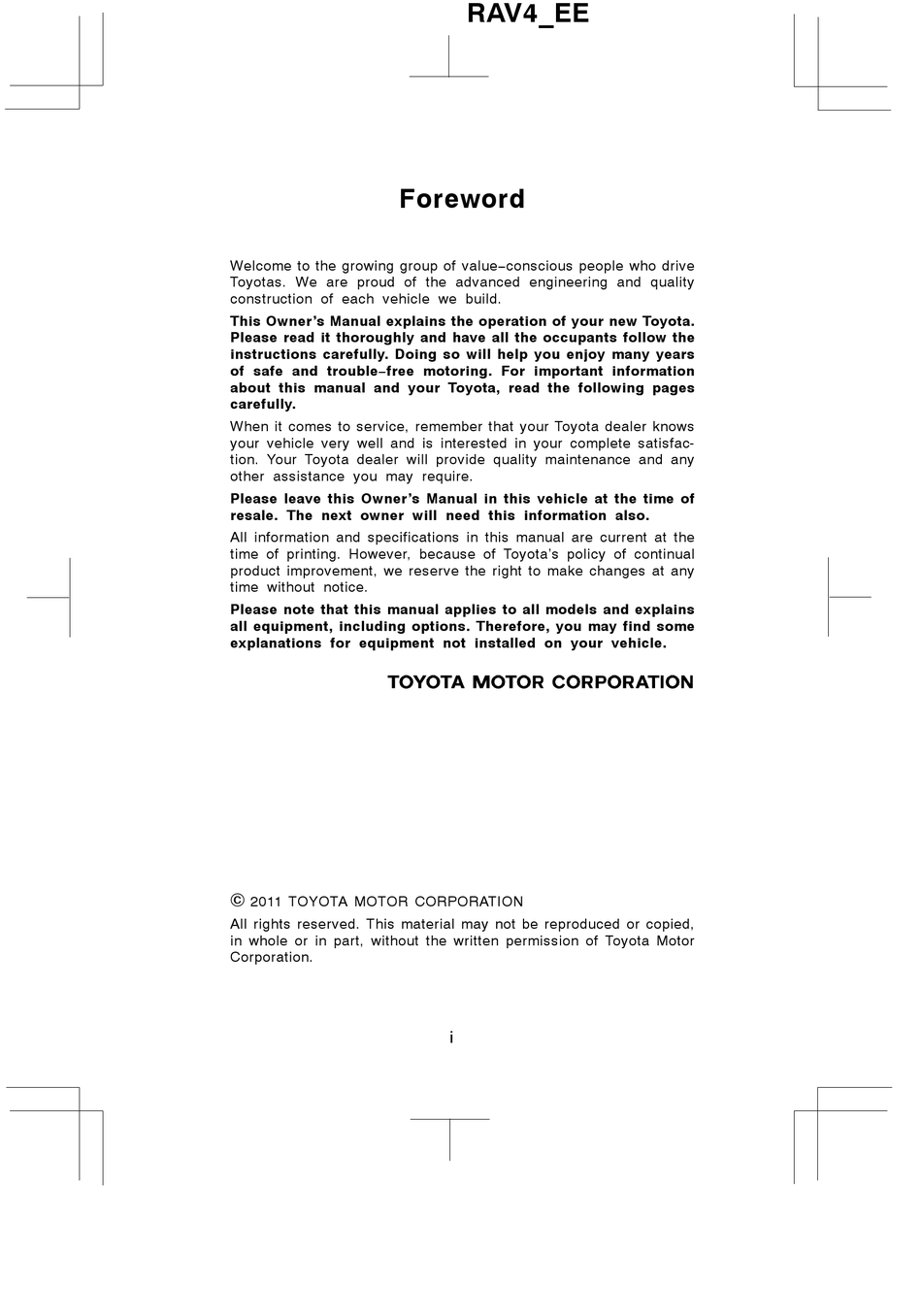

Foreword
Welcome to the growing group of value−conscious people who drive
Toyotas. We are proud of the advanced engineering and quality
construction of each vehicle we build.
This Owner's Manual explains the operation of your new Toyota.
Please read it thoroughly and have all the occupants follow the
instructions carefully. Doing so will help you enjoy many years
of safe and trouble−free motoring. For important information
about this manual and your Toyota, read the following pages
carefully.
When it comes to service, remember that your Toyota dealer knows
your vehicle very well and is interested in your complete satisfac-
tion. Your Toyota dealer will provide quality maintenance and any
other assistance you may require.
Please leave this Owner's Manual in this vehicle at the time of
resale. The next owner will need this information also.
All information and specifications in this manual are current at the
time of printing. However, because of Toyota's policy of continual
product improvement, we reserve the right to make changes at any
time without notice.
Please note that this manual applies to all models and explains
all equipment, including options. Therefore, you may find some
explanations for equipment not installed on your vehicle.
ã
2011 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied,
in whole or in part, without the written permission of Toyota Motor
Corporation.
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAV4 EE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Toyota RAV4 EE

  • Page 1 Therefore, you may find some explanations for equipment not installed on your vehicle. ã 2011 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corporation.
  • Page 2: Important Information About This Manual

    Finish RAV4_EE Important information about this manual Safety and vehicle damage Safety symbol warnings Throughout this manual, you will see safety and vehicle damage warnings. You must follow these warnings carefully to avoid possible injury or damage. The types of warnings, what they look like, and how they are used in this manual are explained as follows: CAUTION...
  • Page 3 Toyota Occupant restraint systems Toyota encourages you and your family to take the time to read Sec- tion 1−3 of this Owner’s Manual carefully. In terms of helping you understand how you can receive the maximum benefit of the occu- pant restraint systems this vehicle provides, Section 1−3 of this Own-...
  • Page 4 Toyota recommends you to read the provisions in Section 1−3 care- fully and refer to them as needed during your time of ownership of...
  • Page 5 Accessories, spare parts and modification of your Toyota Both genuine Toyota and a wide variety of other spare parts and accessories for Toyota vehicles are currently available on the market. Should it be determined that any of the genuine Toyota parts or...
  • Page 6 Further information regarding frequency bands, power levels, antenna positions and installation provisions for the installation of RF−trans- mitters, is available on request at any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. Smart entry and start system...
  • Page 7: Maintenance Schedule

    Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified ser- vice shop or by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional, before you dispose of your vehicle.
  • Page 8: Driving Tips

    Finish RAV4_EE On−pavement and off−road driving tips This vehicle belongs to the utility vehicle class. Utility vehicles have a significantly higher rollover rate than other types of vehicles. This vehicle will handle and maneuver differently from an ordinary passen- ger car because it is designed for off−road use also. In addition, this vehicle has a higher ground clearance and center of gravity than that of an ordinary passenger car.
  • Page 9: Table Of Contents

    ........10 Other equipment 2 INFORMATION BEFORE DRIVING YOUR TOYOTA ..
  • Page 10: Model Code

    ACA: Models with 1AZ−FE engine ALA: Models with 2AD−FTV or 2AD−FHV engine Z S A − The model code appears on the manufacturer’s label with the heading “MODEL”. See “Your Toyota’s identification” on page 404 in Section 2 for the manufacturer’s label location.
  • Page 11: Operation Of Instruments And Controls

    Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS Section 1−1 OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls D Instrument panel overview ......D Instrument cluster overview .
  • Page 12 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS Instrument panel overview (left−hand drive vehicles) "View A 1. Side defroster outlets 11. Rear console box 2. Side vents 12. AUX port/USB port 3. Instrument cluster 13. Power outlet 4. Center vents 14. Power rear view mirror control switches 5.
  • Page 13 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS "View B (without smart entry and start system and manual air conditioning controls) 1. Instrument panel light control dial 10. Air conditioning controls 2. Headlight, turn signal, front fog and 11. Clock display rear fog light switches 12.
  • Page 14 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS 19. Engine (ignition) switch 20. Tilt and telescopic steering lock release lever 21. “SPORT” mode switch 22. Headlight beam level control dial 23. Headlight cleaner switch...
  • Page 15 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS "View B (without smart entry and start system and automatic air conditioning controls) 1. Instrument panel light control dial 9. Front passenger airbag on−off indicator light 2. Headlight, turn signal, front fog and rear fog light switches 10.
  • Page 16 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS 18. Security indicator light 19. Engine (ignition) switch 20. Tilt and telescopic steering lock release lever 21. “SPORT” mode switch 22. Headlight beam level control dial 23. Headlight cleaner switch : Refer to “Navigation system Owner’s manual”.
  • Page 17 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS "View B (with smart entry and start system) 1. Instrument panel light control dial 9. Front passenger airbag on−off indicator light 2. Headlight, turn signal, front fog and rear fog light switches 10. Air conditioning controls 3.
  • Page 18 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS 18. Security indicator light 19. “ENGINE START STOP” switch 20. Tilt and telescopic steering lock release lever 21. “SPORT” mode switch 22. Headlight beam level control dial 23. Headlight cleaner switch : Refer to “Navigation system Owner’s manual”.
  • Page 19 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS Instrument panel overview (right−hand drive vehicles) "View A X11301t 1. Side vents 12. Parking brake lever 2. Side defroster outlets 13. Power rear view mirror control switches 3. Microphone 14. Power outlet 4. Auxiliary box 15.
  • Page 20 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS "View B (without smart entry and start system and manual air conditioning controls) 1. Emergency flasher switch 10. Engine (ignition) switch 2. Audio system 11. Tilt and telescopic steering lock release lever 3. Four−wheel drive lock switch 12.
  • Page 21 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS 18. Clock display 19. Front passenger’s seat belt reminder light 20. Security indicator light...
  • Page 22 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS "View B (without smart entry and start system and automatic air conditioning controls) 1. Emergency flasher switch 9. Headlight beam level control dial 2. Audio system/navigation system 10. Engine (ignition) switch including audio system/“touch 11.
  • Page 23 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS 18. Rear window and outside rear view mirror defogger switch 19. Front passenger’s seat belt reminder light 20. Security indicator light : Refer to “Navigation system Owner’s manual”. : Refer to ““touch screen” Owner’s manual”.
  • Page 24 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS "View B (with smart entry and start system) 1. Emergency flasher switch 9. Headlight beam level control dial 2. Audio system/navigation system 10. Tilt and telescopic steering lock including audio system/“touch release lever screen”...
  • Page 25 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS "Steering switches 18. Rear window and outside rear view mirror defogger switch 19. Front passenger’s seat belt reminder light 20. Security indicator light : Refer to “Navigation system Owner’s manual”. : Refer to ““touch screen” Owner’s manual”.
  • Page 26 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS "Overhead console Type D Type A 1. Audio remote control switches 2. Telephone switch 3. “DISP” switch 4. Talk switch 5. Cruise control switch 6. Paddle shift switches Type B Type C...
  • Page 27 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS 1. Front personal lights 2. Auxiliary box 3. Electric moon roof switch 4. Intrusion sensor cancelling switch...
  • Page 28 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS Instrument cluster overview 1. Tachometer 5. Fuel gauge 2. Service reminder indicators and 6. “ODO/TRIP” knob indicator lights 7. Multi−information display 3. Speedometer 8. Shift position indicator 4. Engine coolant temperature gauge...
  • Page 29 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS Indicator symbols on the instrument panel Brake system warning light Driver’s seat belt reminder light Front passenger’s seat belt reminder light Charging system warning light Malfunction indicator lamp Low fuel level warning light Anti−lock brake system warning light SRS warning light VSC OFF indicator light...
  • Page 30 Finish RAV4_EE OVERVIEW OF INSTRUMENTS AND CONTROLS Headlight high beam indicator light Turn signal indicator lights Front fog light indicator light Rear fog light indicator light “SPORT” indicator light Four−wheel drive lock indicator light Slip indicator light “AUTO LSD” indicator light Cruise control indicator light Downhill assist control system indicator light Engine preheating indicator light...
  • Page 31: Keys And Doors

    Finish RAV4_EE KEYS AND DOORS Section 1−2 OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors D Keys ..........D Engine immobilizer system .
  • Page 32: Keys And Doors

    Your vehicle is supplied with two kinds of keys. 1. Master keys (black)—These keys work in every lock. Your authorized Toyota dealer or repairer, or another duly qual- ified and equipped professional, will need one of them to make a new key with a built−in transponder chip.
  • Page 33 Finish RAV4_EE KEYS AND DOORS NOTICE z When starting the engine, do not use the key with other transponder When using a key containing a trans- keys around (including keys of oth- ponder chip, observe the following er vehicles) and do not press other precautions: key plates against the key grip.
  • Page 34 Do not knock the key hard against need additional keys, duplicates can be other objects. made by any authorized Toyota dealer or z Do not leave the key exposed to repairer, or another duly qualified and high temperatures for a long period,...
  • Page 35: Start System

    If necessary, the entry func- wireless remote control function or tion can be disabled. Ask any au- entry function of the smart entry and thorized Toyota dealer or repairer, start system. another duly qualified 2.
  • Page 36 Finish RAV4_EE KEYS AND DOORS NOTICE When using a electronic key, observe the following precautions: z Do not affix any material that cuts off electromagnetic waves (such as a metal seal) on the electronic key. z Do not knock the electronic key hard against other objects.
  • Page 37: Engine Immobilizer System

    If the ID code is veri- need additional keys, duplicates can be fied, you can start the engine. made by any authorized Toyota dealer or repairer, or another duly qualified and Never leave the keys inside the vehicle equipped professional, using the key num- when you leave the vehicle.
  • Page 38 In the following cases, contact any autho- system). However, there is a limit to the rized Toyota dealer or repairer, or another number of additional keys that can be duly qualified and equipped professional: made for you. The indicator light remains on.
  • Page 39 Finish RAV4_EE KEYS AND DOORS...
  • Page 40 Finish RAV4_EE KEYS AND DOORS Hereby, Tokai Rika Co., Ltd., declares that this RI−20BTY is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 41 Finish RAV4_EE KEYS AND DOORS...
  • Page 42 Finish RAV4_EE KEYS AND DOORS...
  • Page 43 Finish RAV4_EE KEYS AND DOORS...
  • Page 44 Finish RAV4_EE KEYS AND DOORS...
  • Page 45: Wireless Remote Control

    Section. within approximately 1 m (3 ft.) of the If you lose your key, contact any autho- vehicle. rized Toyota dealer or repairer, or another When you operate any switch, push it duly qualified and equipped professional, slowly and securely.
  • Page 46 At this time, the turn signal lights flash once. The turn signal lights can be not to flash. For details, contact any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional. Check to see that all the doors are se- curely locked.
  • Page 47 Toyota dealer or repairer or continuously for 10 seconds. If the key another duly qualified and equipped pro- left in the vehicle, locking cannot be per- fessional.
  • Page 48 Finish RAV4_EE KEYS AND DOORS 1. Open the cover using a flathead screw- 2. Remove the module from the key driver wrapped with plastic tape. frame.
  • Page 49 Finish RAV4_EE KEYS AND DOORS 3. Open and remove the battery case 4. Take out the discharged battery and cover using a coin. put in a new battery with the positive (+) side up. 5. Install the battery case cover and then install the module into the key frame.
  • Page 50 If the key still does ity that can damage the electronic not operate properly, contact any autho- key. rized Toyota dealer or repairer, or another z When replacing the battery, be care- duly qualified and equipped professional. ful not to lose the components.
  • Page 51 Finish RAV4_EE KEYS AND DOORS 1. Push the release button and take out 2. Using a flathead screwdriver or equiva- the mechanical key. lent, open the electronic key case.
  • Page 52 Close the electronic key case se- curely. After replacing the battery, check that the electronic key operates properly. If the electronic key still does not operate prop- erly, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
  • Page 53 Finish RAV4_EE KEYS AND DOORS...
  • Page 54 Finish RAV4_EE KEYS AND DOORS Hereby, Tokai Rika Co., Ltd., declares that this Electronic Key, model B51EA, is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
  • Page 55 Finish RAV4_EE KEYS AND DOORS...
  • Page 56 Finish RAV4_EE KEYS AND DOORS Hereby, Tokai Rika Co., Ltd., declares that this B90EA is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
  • Page 57: Double Locking System

    Finish RAV4_EE KEYS AND DOORS —Double locking system SETTING THE SYSTEM 1. Vehicles without smart entry and start system—Turn the engine switch to the “LOCK” position and remove the key. Vehicles with smart entry and start system—Turn off the engine. 2.
  • Page 58 “How to start the engine” on page If the system does not work properly, 410 in Section 3.) have it checked by any authorized Toyota Entry function and start function (See dealer or repairer, or another duly quali- “ENTRY...
  • Page 59 Finish RAV4_EE KEYS AND DOORS User of any electrical medical de- vice other than implanted pacemak- ers and implanted cardiac defibrilla- tors should consult the manufactur- er of the device for information about its operation under the influ- ence of radio waves. Radio waves could have unexpected effects on the operation of such medical de- vices.
  • Page 60 Finish RAV4_EE KEYS AND DOORS STEERING LOCK FUNCTION When the each door is opened after turn- ing off the engine, the steering wheel will lock. The steering lock is automatically un- locked when the “ENGINE START STOP” switch is pressed. If the indicator light on the “ENGINE START STOP”...
  • Page 61 Finish RAV4_EE KEYS AND DOORS 3. Start function actuation area (UK only)—Inside of the cabin. When the back door is opened, the start function can only be used in ac- tuation area 3. When the back door is closed, the start function can be used in actuation area 2.
  • Page 62 “ENGINE START STOP” switch mode can be changed by following procedure. 1. While the brake pedal is depressed, touch the Toyota logo side of the elec- tronic key to the “ENGINE START STOP” switch. 2. To start the engine: Within 5 seconds...
  • Page 63 (−) terminal or disable Warning lights and buzzers the smart entry and start system. (For details about disable the smart entry and For details, contact any authorized Toyota start system, “DISABLING dealer or repairer, or another duly quali- SMART ENTRY AND START SYSTEM”...
  • Page 64 Finish RAV4_EE KEYS AND DOORS...
  • Page 65 Finish RAV4_EE KEYS AND DOORS Hereby, Tokai Rika Co., Ltd., declares that this B51UA is in compliance with the essen- tial requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 66 Finish RAV4_EE KEYS AND DOORS...
  • Page 67 Finish RAV4_EE KEYS AND DOORS...
  • Page 68 Finish RAV4_EE KEYS AND DOORS...
  • Page 69 Finish RAV4_EE KEYS AND DOORS...
  • Page 70 Finish RAV4_EE KEYS AND DOORS Doors— —Side doors Vehicles with smart entry and start sys- tem—All the side doors and back door are locked and unlocked simultaneously with the driver’s door. When the driver’s door is opened, all the doors cannot lock simul- taneously with the key.
  • Page 71 Finish RAV4_EE KEYS AND DOORS LOCKING UNLOCKING WITH LOCKING UNLOCKING WITH INSIDE LOCK KNOB POWER DOOR LOCK SWITCH Move the lock knob. Push the switch. To lock: Push the knob forward. To lock: Push the switch down on the To unlock: Pull the knob backward. right side.
  • Page 72: Back Door Precautions

    Finish RAV4_EE KEYS AND DOORS —Back door precautions CAUTION Keep the back door closed while driv- ing. If the back door is left open, it may hit near−by objects while driving luggage unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard.
  • Page 73 Finish RAV4_EE KEYS AND DOORS —Operating back door CAUTION When operating the back door, ob- serve the following precautions. Fail- ure to do so may cause parts of the body to be caught, resulting in death or serious injury. When opening or closing the back door, thoroughly check to make sure the surrounding area is safe.
  • Page 74 Make sure that the back door is Do not attach any accessories other fully open and secure before using than genuine Toyota parts to the the luggage compartment. back door. Such additional weight on the back door may interfere with the safety opening and closing op- eration of the back door.
  • Page 75 Finish RAV4_EE KEYS AND DOORS —Locking and unlocking with smart entry and start system When you carry the registered key with smart entry and start system into the ac- tuation area, you can lock and unlock all the doors without using the key. For fur- ther information of actuation area, see “Smart entry and start system”...
  • Page 76 Finish RAV4_EE KEYS AND DOORS You have 30 seconds to open a door after operating the unlocking function. If a door is not opened by then, all the doors will be automatically locked again. The doors may unlock if the key is within the entry function actuation area and a large amount of water splashes on the door handle (for example, in the rain or...
  • Page 77: Power Windows

    Finish RAV4_EE KEYS AND DOORS Power windows Jam protection function: During automat- ic closing operation, the window stops and opens half way if something gets caught between the window and window frame. If the window receives a strong impact, this function may work even if nothing is caught.
  • Page 78 If the window continues to close but then re−open slightly even after performing the Window above procedure correctly, have the ve- lock hicle inspected by any authorized Toyota switch dealer or repairer, or another duly quali- fied and equipped professional. CAUTION...
  • Page 79 Finish RAV4_EE KEYS AND DOORS CAUTION To avoid death or serious personal injury, you must do the following. Before you close the power win- dows, always make sure there is nobody around the power windows. must also make sure heads, hands and other parts of the bodies of all occupants are kept completely inside the vehicle.
  • Page 80 Finish RAV4_EE KEYS AND DOORS Hood To open the hood: 2. In front of the vehicle, pull up the auxiliary catch lever and lift the 1. Pull the hood lock release lever. The hood. hood will spring up slightly. CAUTION Before driving, be sure that the hood is closed and securely locked.
  • Page 81 Finish RAV4_EE KEYS AND DOORS Theft deterrent system 3. Hold the hood open by inserting the The system sounds alarm and flashes support rod into the slot. lights when forcible entry is detected. The alarm is triggered if any of the To insert the support rod into the slot, side doors, back door or hood is forci- move it straight up.
  • Page 82 Finish RAV4_EE KEYS AND DOORS Cancelling the intrusion sensor 1. Push the switch on the overhead con- sole. The security indicator light will flash rapid- ly for 5 minutes. 2. Set the theft deterrent system while the indicator light is flashing. The intrusion sensor is deactivated as long as the system remains armed.
  • Page 83 Finish RAV4_EE KEYS AND DOORS CAUTION Never activate the double locking sys- tem when there are people in the ve- hicle, because all the doors cannot be opened from inside the vehicle. If locked accident, push unlock switch of the key. Cancelling the system When you unlock any door using entry function, wireless remote control or a...
  • Page 84 Finish RAV4_EE KEYS AND DOORS The intrusion sensor detects an intrud- er moving inside the vehicle. The indicator light will come on when the system is activated. If the alarm has been activated, all the side doors and back door will re−lock au- tomatically.
  • Page 85 Finish RAV4_EE KEYS AND DOORS Hereby, FUJITSU TEN LIMITED, declares that this FTL313 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The sensor installed to vehicles sold other than UK and Ireland is not allowed to operate in UK.
  • Page 86 Finish RAV4_EE KEYS AND DOORS Fuel tank cap This indicates that the fuel filler door 1. To open the fuel filler door, pull the is on the left side of your vehicle. lever up. When refueling, turn off the engine. CAUTION Do not smoke, cause sparks or al- low open flames when refueling.
  • Page 87 Finish RAV4_EE KEYS AND DOORS 2. To remove the fuel tank cap, turn 3. The removed cap can be hanged on counterclockwise. Pause the cap hanger. slightly before removing it. When installing the cap, turn it clock- It is not unusual to hear a slight swoosh wise until one click is heard, in order when the cap is opened.
  • Page 88: Electric Moon Roof

    Due to the regulation of fuel tank pressure that these caps provide, Toyota recommends to use a genu- ine Toyota fuel tank cap. Another fuel tank cap of matching quality can also be used.
  • Page 89 Finish RAV4_EE KEYS AND DOORS To operate the moon roof, use the Automatic tilting operation— switch on the overhead console. To tilt up: Push the switch on the “TILT Vehicles without smart entry and start sys- UP” side. tem—The moon roof works when the en- To tilt down: Push the switch on the gine switch is set at the “ON”...
  • Page 90 3. Check to make sure that the moon roof rectly, have the vehicle inspected by any is completely closed and then release authorized Toyota dealer or repairer, or the switch. another duly qualified and equipped pro- If the moon roof tilts down but then fessional.
  • Page 91 Finish RAV4_EE KEYS AND DOORS CAUTION To avoid death or serious injury, you must do the following: While the vehicle is moving, always keep the heads, hands, etc. away from the roof opening. Failure to do so could result in death or serious injury.
  • Page 92 Finish RAV4_EE KEYS AND DOORS...
  • Page 93: Occupant Restraint Systems

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Section 1−3 OPERATION OF INSTRUMENTS AND CONTROLS Occupant restraint systems D Seats ..........D Front seats .
  • Page 94: D Seats

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Front seats— Seats —Front seat precautions While the vehicle is being driven, all ve- Driver seat hicle occupants should have the seatback upright, sit well back in the seat and prop- CAUTION erly wear the seat belts provided. The SRS driver airbag deploys with considerable force, and can cause CAUTION...
  • Page 95 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Seat adjustment precautions Front passenger seat CAUTION CAUTION Do not adjust the seat while the vehicle is moving as the seat may The SRS front passenger airbag also unexpectedly move and cause the deploys with considerable force, and driver to lose control of the vehicle.
  • Page 96 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Adjusting front seats (manual seat) Driver’s seat Passenger’s seat...
  • Page 97: Adjusting Front Seats

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Adjusting front seats (power seat) 1. SEAT POSITION ADJUSTING LEVER Hold the center of the lever and pull it up. Then slide the seat to the desired position with slight body pressure and release the lever. 2.
  • Page 98 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Active head restraints (on some models) 1. SEAT POSITION, SEAT CUSHION ANGLE AND SEAT HEIGHT ADJUST- ING SWITCH Move the control switch in the desired direction. Releasing the switch will stop the seat at that position. Do not place anything under the front seats, as this might interfere with the seat movement.
  • Page 99: D Rear Seats

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Rear seats— —Seat adjustment precautions Inner CAUTION structure During rear−end Adjustment should not be made collision while the vehicle is moving. When adjusting the seat, be careful that the seat does not hit a passen- ger or luggage.
  • Page 100: Adjusting Rear Seats

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Adjusting rear seats When a person sits in the rear center position, align all seatbacks at the same angle. CAUTION Adjustments should not be made while the vehicle is moving. Adjust both seat cushions to the same position and align all seat- backs at the same angle when a person sits in the rear center posi-...
  • Page 101 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Fold−down rear seats 2. Insert the tabs of the center seat belt into the cover. Make sure the tabs are securely locked in the cov- NOTICE The seat belt tabs must be stowed before you fold the seatback. BEFORE FOLDING DOWN REAR SEATS 1.
  • Page 102 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS 3. Make sure the outer seat belt passes 4. Stow the rear seat belt buckles as through the hanger when folding the shown in the illustration. rear seat. This prevents the buckles from falling out This prevents the shoulder belt from being when you fold down the rear seat.
  • Page 103 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS FOLDING DOWN REAR SEATS 2. Lower the head restraint to the low- est position. 1. Hold the center of the lever and pull it up. Then slide the rear seat fully backward and pull it forward slightly till it locks.
  • Page 104 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS 3. Raise the armrest until it locks. 4. Pull down the seatback angle adjust- ing lever and fold down the seat- back. Folding down the seats will enlarge the luggage compartment. See “Luggage stow- age precautions” on page 402 in Section 2 for precautions when loading luggage.
  • Page 105 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS CAUTION Do not fold the rear seatback when the rear passengers sit on the rear seats or the luggage is placed on the seat. Make sure that no passengers or luggage are on the rear seats. RETURNING SEATBACKS Raise the seatback until it locks.
  • Page 106: D Armrest

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Armrest Head restraints Lock release button Front seats To use the armrest, lower the center head restraint. Pull the lock release strap and pull the armrest down. NOTICE To prevent damage to the armrest, avoid putting heavy loads on it. Lock release button Rear seats For your safety and comfort, adjust the...
  • Page 107 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Lock release button Front seats Adjust the center of the head re- straint so that it is closest to the top of your ears. Lock release button Rear seats REMOVING THE HEAD RESTRAINTS Pull the head restraint up while pressing the lock release button.
  • Page 108: D Seat Heater

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Seat heater CAUTION Occupants must use caution when op- erating the seat heater because it may make them feel too hot or cause burns at low temperatures (erythema, varicella). Use extra caution for; Babies, small children, elderly per- sons, sick persons or persons with physical disabilities Persons who have sensitive skin...
  • Page 109: D Seat Belts

    RAV4_EE OCCUPANT RESTRAINT SYSTEMS Seat belts— —Seat belt precautions Toyota strongly urges that the driver and If seat belt regulations exist in the country passengers in the vehicle be properly re- where you reside, please contact any au- strained at all times with the seat belts thorized Toyota dealer or repairer, or provided.
  • Page 110 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Fastening front and rear seat belts Keep the belts clean and dry. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive clean- ers, or allow them to come into contact with the belts—they may severely weaken the belts.
  • Page 111 If the seat belt does not function Keep as low on normally, immediately contact any hips as possible authorized Toyota dealer or repairer, another duly qualified Adjust the position of the lap and equipped professional. Do not use shoulder belts.
  • Page 112 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Seat belts with an adjustable shoulder To release the belt, press the buckle anchor— release button and allow the belt to retract. Adjust the shoulder anchor position to your size. If the belt does not retract smoothly, pull it out and check for kinks or twists.
  • Page 113 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS REAR CENTER SEAT BELT Two buckles and tabs for rear center seat belt The rear center seat belt is a 3−point type restraint with 2 buckles. Both seat belt The two tabs have different shape for its buckles must be correctly located and se- end so that the belt is not buckled in the curely latched for proper operation.
  • Page 114 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Buckle 1 Without smart entry and start system CAUTION Do not use the rear center seat belt with either buckle released. Fastening only the shoulder belt or lap belt may cause death or serious injury in case Buckle 1 of sudden braking or a collision.
  • Page 115: Seat Belt

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Stowing the rear center —Stowing the rear seat belt seat belt buckles The rear seat belt buckles can be STOWING THE REAR CENTER SEAT stowed when not in use. BELT The seat belt buckles must be stowed Insert the tabs of the center seat belt before you fold the seatback.
  • Page 116: Seat Belt Pretensioners

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Seat belt pretensioners The driver and front passenger seat The seat belt pretensioner system con- belt pretensioners are designed to be sists mainly of the following components activated in response to a severe fron- and their locations are shown in the il- tal impact.
  • Page 117 Modification of the front end struc- rounding area or wiring. Consult ture any authorized Toyota dealer or re- pairer, or another duly qualified and z Attachment of a grille guard (bull equipped professional about any re- bar, kangaroo bar, etc.), snowplow,...
  • Page 118 220 in Section 1−6.) If any of the following conditions occurs, this indicates a malfunction of the airbags or seat belt pretensioners. Contact your any authorized Toyota dealer or repairer, or another duly qualified and equipped professional, as soon as possible.
  • Page 119: Srs Driver Airbag And Front Passenger Airbag

    SRS driver airbag and front passenger airbag In the following cases, contact any autho- The SRS (Supplemental Restraint Sys- rized Toyota dealer or repairer, or another tem) front airbags are designed to pro- duly qualified and equipped professional, vide further protection for the driver...
  • Page 120 Toyota underride collision (e.g. a collision in strongly recommends that all in- which the front of the vehicle “underrides”, fants and children be placed in the or goes under, the bed of a truck, etc.).
  • Page 121 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Hitting a curb, Falling into or Collision from the rear edge of pavement jumping over a or hard surface deep hole Collision from the side Vehicle rollover Landing hard or vehicle falling The SRS front airbags are not generally The SRS front airbags may also deploy designed to inflate if the vehicle is in- if a serious impact occurs to the under-...
  • Page 122 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS When the airbags inflate, they produce a loud noise and release some smoke and residue along with non−toxic gas. This does not indicate a fire. This smoke may remain inside the vehicle for some time, and may cause some minor irritation to the eyes, skin or breathing.
  • Page 123 Toyota strongly recommends that: The driver sit as far back as pos- sible from the steering wheel while still maintaining control of the ve- hicle.
  • Page 124 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Toyota strongly recommends that all Do not put anything or any part of infants and children be placed in your body or install anything such the rear seat of the vehicle and be as accessories or turbo timers on properly restrained.
  • Page 125 OCCUPANT RESTRAINT SYSTEMS NOTICE Do not perform any of the following changes without consulting any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional. Such changes can inter- fere with proper operation of the SRS front airbag system in some cases.
  • Page 126 6 seconds. The light comes on while driving. In the following cases, contact any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional, as soon as possible: The SRS front airbags have been in- flated.
  • Page 127: Front Passenger Airbag

    Toyota seat. strongly recommends that all in- See “Passenger airbag manual on−off fants and children be placed in the switch” on page 134 in this Section for rear seat of the vehicle and proper- detail.
  • Page 128 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Do not turn off the passenger air- bag manual on−off switch except when the rear−facing child restraint system is installed on the front Collision from the rear passenger seat. When the passenger airbag manual on−off switch is turned off, the front passenger airbag will not in- flate in a collision and turning off Collision from the side...
  • Page 129 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Hitting a curb, Falling into or edge of pavement jumping over a or hard surface deep hole Landing hard or vehicle falling The SRS front airbags may also deploy The SRS front airbag system consists if a serious impact occurs to the under- mainly of the following components, and their locations are shown in the illustra-...
  • Page 130 This be killed or seriously injured. Toyota does not indicate a fire. This smoke may strongly recommends that: remain inside the vehicle for some time,...
  • Page 131 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Do not sit on the edge of the seat Toyota strongly recommends that all or lean against the dashboard when infants and children be placed in the vehicle is in use, since the the rear seat of the vehicle and be front passenger airbag could inflate properly restrained.
  • Page 132 Likewise, the driver Consult any authorized Toyota dealer and front passenger should not or repairer, or another duly qualified hold objects in their arms or on and equipped professional, about any their knees.
  • Page 133 OCCUPANT RESTRAINT SYSTEMS NOTICE Do not perform any of the following changes without consulting any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional. Such changes can inter- fere with proper operation of the SRS front airbag system in some cases.
  • Page 134 6 seconds. The light comes on while driving. In the following cases, contact any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional, as soon as possible: The SRS front airbags have been in- flated.
  • Page 135: D Srs Side Airbags And Curtain Shield Airbags

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS SRS side airbags and curtain shield airbags CAUTION The SRS side airbag and curtain shield airbag system is designed only as a supplement to the prima- ry protection of the driver, and front passenger and rear outside passenger side seat belt systems.
  • Page 136 Toyota strongly recommends that all in- fants and children be placed in the rear seats of the vehicle and prop- erly restrained. The rear seats are the safest for infants and children.
  • Page 137 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Collision from the rear Collision from the front Vehicle rollover The SRS side airbags and curtain shield The SRS side airbag and curtain shield airbags are not generally designed to airbag system consists mainly of the fol- inflate if the vehicle is involved in a lowing components, and their locations are front or rear collision, if it rolls over,...
  • Page 138 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS When the airbags inflate, they produce a fairly loud noise and release some smoke and residue along with non−toxic gas. This does not indicate a fire. This smoke may remain inside the vehicle for some time, and may cause some minor irritation to the eyes, skin or breathing.
  • Page 139 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Do not allow anyone to get his/her Do not allow anyone to kneel on head closer to the area where the the passenger seat, facing the pas- side airbag and curtain shield air- senger’s side door, since the side bag inflate, since these airbags airbag and curtain shield airbag could...
  • Page 140 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Do not allow anyone to get his/her Do not attach a cup holder or any head or hands out of windows other device or object on or around since the curtain shield airbags the door. When the side airbag in- could inflate with...
  • Page 141 Do not hook a hanger, heavy or changes without consulting any autho- sharp pointed objects on the coat rized Toyota dealer or repairer, or hook. If the curtain shield airbag another duly qualified and equipped inflates, those items will be thrown professional.
  • Page 142 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS If either of the following conditions occurs, this indicates a malfunction of the airbags or seat belt pretensioners. Contact any authorized Toyota dealer or repairer, or another duly qualified equipped professional, as soon as possible.
  • Page 143 (shaded in the illustration) is scratched, cracked, or otherwise damaged. In the following cases, contact any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional, as soon as possible: Any of the SRS side airbags and cur- tain shield airbags have been inflated.
  • Page 144: D Passenger Airbag Manual On−Off Switch

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Passenger airbag manual on−off switch Operate on−off switch as follows: Vehicles without smart entry and start sys- tem— Insert key into the keyhole. Before operating the front passenger air- bag manual on−off switch, stop the vehicle and turn off the engine.
  • Page 145 “OFF” indicator light will come on if there is a malfunction in the passenger airbag manual on−off switch. Contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional if any of the follow- ing occur.
  • Page 146 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Vehicles without smart entry and start CAUTION system—The indicator lights do not come on when the engine switch is set You must turn off the front passen- at the “ON” position. ger airbag and side airbag on the Vehicles with smart entry and start front passenger side when it is un- system—The indicator lights do not...
  • Page 147: Child Restraint

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Child restraint— —Child restraint precautions Toyota strongly urges the use of ap- A forward−facing child restraint sys- propriate child restraint systems for should allowed children. installed on the front passenger If a child is too large for a child restraint seat only when it is unavoidable.
  • Page 148: Child Restraint System

    Toyota dealer or repairer, or another duly system. qualified and equipped professional. To provide proper restraint, use a child Locking clip for child restraint system restraint system following the manufactur- (Part No.
  • Page 149: Types Of Child Restraint System

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Types of child restraint system Child restraint systems are classified into the following 5 groups according to the regulation ECE No.44. Group 0: Up to 10 kg (22 lb.) (0—9 months) Group 0 : Up to 13 kg (28 lb.) (0—2 years) Group I: 9—18 kg (20 to 39 lb.)
  • Page 150 (without ISOFIX, 9 to 18 kg [20 to 39 lb.])” approved for the use in this mass group L3: Suitable for “TOYOTA KID (15 to 36 kg [34 to 79 lb.])” approved for the use in this mass group X: Not suitable seat position for children in this mass group...
  • Page 151 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Child restraint system suitability for various seating positions (with ISOFIX rigid anchor) Provided information in the table shows your child restraint system suitability for various seating positions. Vehicle ISOFIX positions Mass groups Mass groups Size class Size class Fixture Fixture...
  • Page 152 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS The child restraint system mentioned in the table may not be available outside of the EU area. Other child restraint system which is dif- ferent from the system mentioned in the table can be used, but the suitability of the systems must be carefully checked with the child restraint system manufactur- er concerned and the seller of those...
  • Page 153 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS There is a sticker on the passenger side of the instrument panel and a label on both sides of the passen- ger side sun visor, both indicating it is forbidden to attach a rear−fac- ing child restraint system to the front passenger seat.
  • Page 154 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Type A Type B...
  • Page 155 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Type C...
  • Page 156 If the seat belt does not function normally, it cannot protect your child from death or serious injury. Contact authorized Toyota dealer or repairer, or another duly qualified and equipped professional, immediately. Do not install the child Move seat restraint system on the seat until fully back the seat belt is fixed.
  • Page 157 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Most upright position ILLUSTRATION 1 Adjust the front seatback and fix it at the Push and pull the child restraint most upright position. system in different directions to be sure it is secure. Follow all the installation instructions provided by its manufacturer.
  • Page 158: Rear Seat

    If your child restraint system does not provide a locking clip, you can purchase one at any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. (See “—Child re- straint system” on page 138 for details.)
  • Page 159 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Same Same position angle CAUTION When installing a child restraint system in the rear center position, Do not install a child restraint sys- adjust both seat cushions to the tem on the rear seat if it interferes rear most position and align all with the lock mechanism of the seatbacks at the same angle.
  • Page 160 If your child restraint system does not Make sure that the belt is not twisted. provide a locking clip, you can purchase Keep the lap portion of the belt tight. Fol- one at any authorized Toyota dealer or instructions provided repairer, or another duly qualified and manufacturer of the baby seat and install equipped professional.
  • Page 161 If the seat belt does not function normally, it cannot protect your child from death or serious injury. Contact authorized Toyota Push and pull the child restraint dealer or repairer, or another duly system in different directions to be qualified and equipped professional, sure it is secure.
  • Page 162 If your child restraint system does not provide a locking clip, you can purchase one at any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. (See “—Child re- straint system” on page 138 for details.)
  • Page 163 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Same Same angle position CAUTION When installing a child restraint system in the rear center position, Do not install a child restraint sys- adjust both seat cushions to the tem on the rear seat if it interferes rear most position and align all with the lock mechanism of the seatbacks at the same angle.
  • Page 164 If your child restraint system does not Make sure that the belt is not twisted. provide a locking clip, you can purchase Keep the lap portion of the belt tight. Fol- one at any authorized Toyota dealer or instructions provided repairer, or another duly qualified and manufacturer of the child seat and install equipped professional.
  • Page 165 If the seat belt does not function normally, it cannot protect your child from death or serious injury. Contact authorized Toyota Push and pull the child restraint dealer or repairer, or another duly system in different directions to be qualified and equipped professional, sure it is secure.
  • Page 166 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS To remove the child seat: (C) JUNIOR SEAT INSTALLATION Press the buckle release button and allow A junior seat must be used in forward− the belt to retract completely. facing position only.
  • Page 167 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Same Same position angle To install the junior seat: CAUTION Sit the child on a junior seat. Run the lap and shoulder belt through or around the When installing a child restraint sys- junior seat and across the child following tem in the rear center position, adjust the instructions provided by its manufac- both seat cushions to the same posi-...
  • Page 168 If the seat belt does not function normally, it cannot protect your child from death or serious injury. Contact authorized Toyota dealer or repairer, or another duly qualified and equipped professional, immediately. Do not install the child restraint system on the seat until...
  • Page 169 “ON” position. provide a locking clip, you can purchase In the event of an accident, force one at any authorized Toyota dealer or resulting from the rapid inflation of repairer, or another duly qualified and front...
  • Page 170 If the seat belt does not function normally, it cannot protect your child from death or serious injury. Contact authorized Toyota dealer or repairer, or another duly qualified and equipped professional, immediately. Do not install the child Move seat restraint system on the seat until fully back the seat belt is fixed.
  • Page 171: Using A Top Strap

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Using a top strap Follow the procedure below for a child Push and pull the child restraint restraint system that requires the use system in different directions to be of a top strap. sure it is secure. Follow all the installation instructions provided by its manufacturer.
  • Page 172 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Child restraint anchor fittings Use the anchor brackets on the rear side TO USE THE ANCHOR BRACKET: trim as shown above to attach the top 1. Remove the head restraint. strap. Anchor brackets are installed for both out- side rear seating positions.
  • Page 173 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS 2. Fix the child restraint system with 3. Insert the head restraint and push it the seat belt. down to the lock position. Latch the hook onto the anchor bracket and tighten the top strap. For instructions to install the child re- straint system, see “Child restraint”...
  • Page 174: Restraint System

    Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS —Installation with ISOFIX rigid anchor (ISOFIX child restraint system) After installing child restraint The exclusive fixing bars for child re- system, move the rear seat to the straint systems using ISO specifications rear−most lock position to prevent the are installed in the rear seat.
  • Page 175 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS Middle point NOTE: When using the “universal” category child restraint system in the rear seat the front seat must be adjusted forward from the middle point and the seatback must be in the upright position. CHILD RESTRAINT SYSTEM...
  • Page 176 Finish RAV4_EE OCCUPANT RESTRAINT SYSTEMS CAUTION When using the exclusive fixing bars for a child restraint system, be sure that there are no irregular ob- jects around the bars or that the seat belt is not caught. Push and pull the child restraint system in different directions to be sure it is secure.
  • Page 177: Steering Wheel And Mirrors

    Finish RAV4_EE STEERING WHEEL AND MIRRORS Section 1−4 OPERATION OF INSTRUMENTS AND CONTROLS Steering wheel and Mirrors D Tilt and telescopic steering wheel ....D Outside rear view mirrors .
  • Page 178: Steering Wheel And Mirrors

    Finish RAV4_EE STEERING WHEEL AND MIRRORS Tilt and telescopic steering Outside rear view mirrors— wheel To adjust the steering wheel position, Adjust the mirror so that you can just push down the lock release lever. Then see the side of your vehicle in the mir- tilt the steering wheel to the desired ror.
  • Page 179 Finish RAV4_EE STEERING WHEEL AND MIRRORS —Power rear view mirror control NOTICE If ice should jam the mirror, do not operate the control or scrape the mir- ror face. Use a spray de−icer to free the mirror. Type A Type B To adjust a mirror, use the switches.
  • Page 180 Finish RAV4_EE STEERING WHEEL AND MIRRORS —Folding rear view mirrors FOLDING MIRRORS (type B only) The rear view mirrors can be folded backward for parking in compact areas. To fold mirrors for parking in restricted areas, push the mirror folding button. To fold the rear view mirror, push back- ward.
  • Page 181 Finish RAV4_EE STEERING WHEEL AND MIRRORS Anti−glare inside rear view Auto anti−glare inside rear mirror view mirror Type A Adjust the mirror so that you can just see the rear of your vehicle in the mir- ror. To reduce glare from the headlights of the vehicle behind you during night driving, operate the lever on the lower edge of the mirror.
  • Page 182 Finish RAV4_EE STEERING WHEEL AND MIRRORS Vehicles with smart entry and start sys- tem—When the “ENGINE START STOP” switch is set at IGNITION ON mode, the inside rear view mirror always turns on in the automatic function mode. The indicator illuminates to show you that the function is on.
  • Page 183 Finish RAV4_EE STEERING WHEEL AND MIRRORS Vanity mirrors To use the vanity mirror, swing down the sun visor and slide the cover. The vanity light comes on when you slide the cover.
  • Page 184 Finish RAV4_EE STEERING WHEEL AND MIRRORS...
  • Page 185: Lights, Wipers And Defogger

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Section 1−5 OPERATION OF INSTRUMENTS AND CONTROLS Lights, Wipers and Defogger D Headlights and turn signals ......D Headlight beam level control .
  • Page 186: D Headlights And Turn Signals

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Headlights and turn signals (without automatic light control system) Automatic light cut off system When the headlight switch is on, the headlights and front fog lights automatical- ly turn off with the engine turned off. Vehicles without smart entry and start sys- tem—To turn on the lights again, set the engine switch at the “ON”...
  • Page 187 Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER High−Low beams—For high beams, turn TURN SIGNALS the headlights on and push the lever away To signal a turn, push the headlight/ from you (position 1). Pull the lever to- turn signal lever up or down to position ward you (position 2) for low beams.
  • Page 188 Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Headlights and turn signals (with automatic light control system) HEADLIGHTS The automatic light control sensor is on the top of the driver’s side instrument To turn on the following lights: Twist panel. the headlight/turn signal lever knob. Do not place anything on the instrument Position 1—Parking, tail, license plate and panel, and/or do not affix anything on the...
  • Page 189 Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Automatic light cut off system This buzzer will not sound if the headlight switch is in the “AUTO” position. Vehicles without double locking system: When the headlight switch is on, the NOTICE headlights and front fog lights automatical- ly turn off with the engine turned off.
  • Page 190 Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER High−Low beams—For high beams, turn TURN SIGNALS the headlights on and push the lever away To signal a turn, push the headlight/ from you (position 1). Pull the lever to- turn signal lever up or down to position ward you (position 2) for low beams.
  • Page 191: Headlight Beam Level Control

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Headlight beam level control ALA30R−AWFXYW, ALA30R−AWFGYW, ALA30L−AWFXYW, ALA30L−AWFGYW, ACA30L−AWMXKW, ACA30L−AWMGKW, ACA30L−AWPXKW ACA30L−AWPGKW models Loading condition Dial position Driver only Driver + front passenger Full passengers (including driver) Full passengers (including driver) + full luggage loading to the luggage compartment Left−hand drive vehicles Driver + full luggage loading...
  • Page 192: Emergency Flashers

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Emergency flashers Instrument panel light control Left−hand drive vehicles To turn on the emergency flashers, push the switch. All the turn signal lights will flash. To turn them off, push the switch once again. Turn on the emergency flashers to warn other drivers if your vehicle must be stopped where it might be a traffic hazard.
  • Page 193: D Front And Rear Fog Lights

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Front and rear fog lights Rear fog lights To turn on the following lights, twist To turn on the rear fog lights, twist the the band of the headlight and turn sig- band of the headlight and turn signal nal switch lever when the tail lights switch lever.
  • Page 194: Interior Light

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Interior light Personal lights Type A To turn on the interior light, slide the switch. The interior light switch has the following positions: “ON”—Keeps the light on all the time. “OFF”—Turns the light off. “DOOR”—Turns the light on when any of the side doors are opened.
  • Page 195: Luggage Compartment Light

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Luggage compartment light INTERIOR LIGHT CUT OFF OPERATION To prevent the battery being discharged, the light will automatically turn off when the engine is turned off and the door is left opened with the switch at “DOOR” position for 20 minutes or more.
  • Page 196: D Illuminated Entry System

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Illuminated entry system Without smart entry and start system With smart entry and start system...
  • Page 197 Vehicles with smart entry and start sys- changed. For details, ask any authorized tem— Toyota dealer or repairer, or another duly With the automatic transmission or Multi- qualified and equipped professional. drive: The foot lights also come on when Vehicles without smart entry and start sys- the “ENGINE START STOP”...
  • Page 198: D Windshield Wipers And Washer

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Windshield wipers and washer (intermittent operation type) ILLUMINATIONS OF ENTRY FUNCTION (vehicles with smart entry and start system) The interior light, personal lights and foot lights come on and remain on for about 15 seconds when you carry the registered key into the entry function actuation area.
  • Page 199 If a nozzle becomes blocked, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional to have the vehicle serviced. NOTICE If a nozzle becomes blocked, do not try to clear it with a pin or other object.
  • Page 200 Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER However, when the windshield gets ex- tremely hot (at more than 90_C [194_F]), the wipers do not operate even if the wiper lever is in position 1. If the windshield wipers cease operation while in “AUTO” mode, change to a mode other than “AUTO”.
  • Page 201 Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER If the windshield vibrates. If you touch the sensor. NOTICE AUTO Do not apply detergent to or wet the automatic wiper control sensor when cleaning the inside of the windshield. When using an automatic car wash, set the wiper lever to the OFF position.
  • Page 202: D Rear Window Wiper And Washer

    If a nozzle becomes blocked, contact any authorized Toyota dealer or For instructions on adding washer fluid, repairer, or another duly qualified and see “Adding washer fluid” on page 531 in equipped professional to have the vehicle Section 7−3.
  • Page 203: D Headlight Cleaner

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Headlight cleaner Windshield wiper de−icer To spray fluid on the headlights, turn To deice the windshield wiper blades, the headlights on and push the switch. push the switch. Vehicles without smart entry and start sys- Vehicles without smart entry and start sys- tem—The engine switch must be set at tem—The engine switch must be set at...
  • Page 204: Rear Window And Outside Rear View Mirror Defoggers

    Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER Rear window and outside rear view mirror defoggers To defog or defrost the rear window, push the switch. Vehicles without smart entry and start sys- tem—The engine switch must be set at the “ON” position. Vehicles with smart entry and start sys- tem—The “ENGINE START STOP”...
  • Page 205 Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER NOTICE z Without timer: To prevent the bat- tery from being discharged, turn the switch off when the engine is not running. z When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires or connectors.
  • Page 206 Finish RAV4_EE LIGHTS, WIPERS AND DEFOGGER...
  • Page 207: Gauges, Meters And Service Reminder Indicators

    Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS Section 1−6 OPERATION OF INSTRUMENTS AND CONTROLS Gauges, Meters and Service reminder indicators D Fuel gauge ........D Engine coolant temperature gauge .
  • Page 208 GAUGES, METERS AND SERVICE REMINDER INDICATORS Fuel gauge The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional, as soon as possible.
  • Page 209 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS Engine coolant temperature gauge NOTICE z Do not remove the thermostat in the engine cooling system as this may cause the engine to overheat. The thermostat is designed to con- trol the flow of coolant to keep the temperature of the engine within the specified operating range.
  • Page 210: Multi−Information Display

    Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS Tachometer Multi−information display— The tachometer indicates engine speed in thousands of rpm (revolutions per minute). Use it while driving to select correct shift points and to prevent en- gine lugging and over−revving. Driving with the engine running too fast causes excessive engine wear and poor fuel economy.
  • Page 211 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS Type B Type C 1. “ODO/TRIP” knob 1. “ODO/TRIP” knob 2. Cruise information display 2. Cruise information display 3. Odometer and two trip meters 3. Odometer and two trip meters 4. Outside temperature display 4.
  • Page 212 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS The multi−information display provides various information, including the driv- ing condition, outside temperature, and warning messages if the vehicle mal- functions or is in trouble. During ordinary driving, cruise information is displayed. When the vehicle is stopped, you can select the units or language of the display.
  • Page 213 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS —Cruise information Vehicles without smart entry and start system—The following information is displayed when you push the “DISP” switch with the engine switch set at the “ON” position. Vehicles with smart entry and start sys- tem—The following information is dis- played when you push the “DISP”...
  • Page 214 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS Average fuel consumption— CAUTION Average fuel consumption is calculated after the engine is started based on Do not adjust the display while the total driving distance and total fuel vehicle is moving. Be sure to adjust consumed.
  • Page 215 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS 2. Driving range (“RANGE km” The units of the meters can be changed. “RANGE miles”) For details, see “—Selecting the units and language” on page 206. The distance the vehicle can travel with the remaining fuel is calculated based 4.
  • Page 216 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS —Selecting the units and language The units or language of the multi−in- formation display can be selected with set up information display. To select the units or language of the display, stop the vehicle and change to the set up information display by pushing the “DISP”...
  • Page 217 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS Each time the “DISP” switch is pushed, the “LANGUAGE”, “UNIT” or “EXIT” is se- lected. Pushing and holding the “DISP” switch when the “LANGUAGE” is selected, the display is changed to the setting lan- guage display.
  • Page 218 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS —Odometer and two trip meters Type A The following meters are displayed in the multi−information display. Pushing the “ODO/TRIP” knob changed the me- ters. 1. Odometer—Shows the total distance the vehicle has been driven. 2.
  • Page 219: Outside Temperature

    If an abnormality exists in the connection of the outside air temperature sensor, “−−_C” will appear on the display. If “−−_C” appears on the display, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. Vehicles without smart entry and start sys- tem—If the outside temperature falls below...
  • Page 220 Brake system malfunction is or repairer, or another duly detected. qualified and equipped professional. Take vehicle to any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. If Anti−lock brake system brake system warning light is malfunction is detected.
  • Page 221 GAUGES, METERS AND SERVICE REMINDER INDICATORS Message Status Action Take vehicle to any authorized Charging system malfunction Toyota dealer or repairer, or is detected. another duly qualified and equipped professional. Side doors and/or back door Side doors and/or back door are opened.
  • Page 222 Fill up tank. empty. Oil change is due. Replace engine oil. Electronic key battery is low. Replace key battery. Contact any authorized Toyota Steering lock system dealer or repairer, or another malfunction is detected. duly qualified and equipped professional. Steering lock is stuck.
  • Page 223 If the message appears, the SRS airbag immediately and contact any authorized system and front seat belt pretensioners Toyota dealer or repairer, or another duly may not operate properly. Contact any au- qualified and equipped professional. (See thorized Toyota dealer or repairer, or “Service reminder indicators and warning...
  • Page 224 If the message goes off, you may warning light. start the vehicle again. If the message does not go off, call an authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional or qualified repair shop for assistance.
  • Page 225 The message may occasionally flicker vehicle again. If the message does not go when the engine is idling or it may appear off, call an authorized Toyota dealer or briefly after a hard stop. There is no repairer, or another duly qualified and...
  • Page 226 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS Vehicles with smart entry and start sys- tem— This message will be displayed for a cer- tain period of time if the outside tempera- Vehicles with smart entry and start sys- ture is below 3_C (37_F) when the “EN- tem only—...
  • Page 227 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS Resetting the engine oil maintenance data The engine oil maintenance data must be reset after replacement of the engine oil. This message is to remind the driver Reset the data by the following procedure: that the fuel level in the tank becomes nearly empty.
  • Page 228 The message can be turned off by push- The engine will not start in this case. ing and holding the “DISP” switch. Contact any authorized Toyota dealer or repairer, or another duly qualified and Vehicles with smart entry and start sys- equipped professional as soon as pos- tem—If the data fails to reset, the mes-...
  • Page 229 IGNITION ON mode, the above message appears. After a few seconds, the message disappears. If this message does not appear, the warning messages will not function. Con- tact any authorized Toyota dealer or re- pairer, another duly qualified and equipped professional as soon as pos- sible.
  • Page 230 If the indicator or buzzer Do this. comes on... If parking brake is off, stop immediately and contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. Fasten driver’s seat belt. (indicator and buzzer) Fasten front passenger’s seat belt.
  • Page 231 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS If the indicator or buzzer Do this. comes on... Read a warning message on multi−information display. Remove key. Key reminder buzzer Turn off lights. Light reminder buzzer Parking brake remind- Release parking brake. er buzzer...
  • Page 232 It is dangerous to continue driving low. normally when the brake fluid level is low. Have your vehicle checked authorized Toyota dealer or repairer, or Have your vehicle checked another duly qualified and equipped authorized Toyota dealer or repairer, or professional, in the following cases:...
  • Page 233 90 more seconds. Even if the vehicle thorized Toyota dealer or repairer, or speed drops below 20 km/h (12 mph), the another duly qualified and equipped buzzer will continue to sound.
  • Page 234 “ENGINE START STOP” switch is set case b, have your vehicle checked/re- at IGNITION ON mode, and goes off when paired by any authorized Toyota dealer or the engine is started. repairer, or another duly qualified and When there are problems in the charging...
  • Page 235 “Low fuel” appears on the multi−infor- your vehicle checked/repaired by any au- mation display. Depending on the condi- thorized Toyota dealer or repairer, or tions a warning tone may sound. another duly qualified and equipped pro- (g) “ABS” Warning Light fessional, as soon as possible.
  • Page 236 Con- switch is set at the “ON” position. If the tact any authorized Toyota dealer or anti−lock brake system and the brake as- repairer, or another duly qualified and...
  • Page 237 Contact any the engine switch is set at the “ON” authorized Toyota dealer or repairer, or position. It goes off after about 6 sec- another duly qualified and equipped onds. This means the SRS airbags and...
  • Page 238 “ON” position. If the elec- hicle to any authorized Toyota dealer tric power steering system warning light or repairer, or another duly qualified...
  • Page 239 The SRS warning light goes off after about 6 seconds. If any service reminder indicator or warn- ing buzzer does not function as described above, have it checked by any authorized Toyota dealer or repairer, or another duly qualified and equipped professional, as soon as possible.
  • Page 240 Finish RAV4_EE GAUGES, METERS AND SERVICE REMINDER INDICATORS...
  • Page 241: Engine (Ignition) Switch, Transmission And Parking Brake

    Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Section 1−7 OPERATION OF INSTRUMENTS AND CONTROLS Engine (ignition) switch, Transmission and Parking brake D Engine (ignition) switch ......D Automatic transmission .
  • Page 242 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Engine (ignition) switch (without smart entry and start system) When starting the engine, the engine switch may seem stuck at the “LOCK” position. To free it, first be sure the key is pushed all the way in, and then rotate the steering wheel slightly while turning the key gently.
  • Page 243 ACCESSORY, IGNITION ON system. Turn off the engine immediately mode or OFF. and contact any authorized Toyota dealer When the brake pedal and clutch pedal or repairer, or another duly qualified and (manual transmission) are not depressed, equipped professional.
  • Page 244 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Automatic transmission (4−speed) Shift lever Shift with the brake pedal depressed. (Vehicles without smart entry and start system—The engine switch must be in the “ON” position./Vehicles with smart entry and start system—The “ENGINE START STOP”...
  • Page 245 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE (b) Normal driving (c) Using engine braking 1. Start the engine as instructed in “How To use engine braking, you can downshift to start the engine” on page 410 in the transmission as follows: Section 3.
  • Page 246 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE (d) Using the “2” and “L” positions (e) Backing up The “2” and “L” positions are used for 1. Bring the vehicle to a complete stop. strong engine braking as described pre- 2.
  • Page 247 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE (g) Good driving practice If the transmission repeatedly shifts up and down between third gear and over- drive when climbing a gentle slope, shift the shift lever to the “3” position. Be sure to shift the shift lever to the “D”...
  • Page 248 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Automatic transmission (6−speed) Shift lever Shift with the brake pedal depressed. (Vehicles without smart entry and start system—The engine switch must be in the “ON” position./Vehicles with smart entry and start system—The “ENGINE START STOP”...
  • Page 249 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE (b) Normal driving AI (Artificial Intelligence) shifting con- trol— 1. Start the engine as instructed in “How to start the engine” on page 410 in AI shifting control selects the most Section 3.
  • Page 250 2: Downshift range there may be a problem in the system. Have your vehicle checked/repaired by any authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible. In this case, you can drive in the same condition...
  • Page 251 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Shift range positions Downshift restriction warning buzzer “D6” (Sixth range): To help ensure safety and driving perfor- The most suitable gear is selected au- mance, downshifting operation may some- tomatically between first and overdrive times be restricted.
  • Page 252 “M6” (sixth gear) and “M1” (first tem. Have your vehicle checked/repaired gear) by moving the shift lever up to by any authorized Toyota dealer or repair- the “+” side or down to the “–” side. er, or another duly qualified and equipped Using the paddle shift switches—...
  • Page 253 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Shift lever Paddle shift switch...
  • Page 254 The gear is fixed at second gear. vehicle inspected authorized “M1” (First gear): Toyota dealer or repairer, or another duly The gear is fixed at first gear. qualified and equipped professional. Downshift restriction warning buzzer To help ensure safety and driving perfor- mance, downshifting operation may some- times be restricted.
  • Page 255 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE (d) Using engine braking Move the shift lever down to the “−” side or operate the “−” paddle shift To use engine braking, you can downshift switch to select the “M3” gear. The the transmission as follows: transmission will downshift to third gear Using engine braking in the “M”...
  • Page 256 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Using engine braking in the “D” position— Operate the “−” paddle shift switch to select the “D3” range. The transmission Firstly, operate the “−” paddle shift will downshift to third range when the switch.
  • Page 257 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE (e) Backing up (g) Good driving practice 1. Bring the vehicle to a complete stop. If the transmission repeatedly shifts up and down between fourth gear and 2. With the brake pedal held down with overdrive when climbing a gentle slope, your foot, shift the shift lever to the shift the shift lever into sequential posi-...
  • Page 258 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE “SPORT” MODE Push the “SPORT” mode switch to turn the “SPORT” mode on. The “SPORT” indicator light will come on. The “SPORT” mode can be used for powerful acceleration and driving in moun- tainous regions.
  • Page 259 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Multidrive Shift lever Shift with the brake pedal depressed. (Vehicles without smart entry and start system—The engine switch must be in the “ON” position./Vehicles with smart entry and start system—The “ENGINE START STOP” switch must be in IGNITION ON mode.) Shift normally.
  • Page 260 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE (b) Normal driving (c) Driving in “M” position 1. Start the engine as instructed in “How Using the shift lever— to start the engine” on page 410 in You can change the gear step in the Section 3.
  • Page 261 “M” position, there may be a problem somewhere in the system. Have your vehicle checked/repaired by any au- thorized Toyota dealer or repairer, or another duly qualified and equipped pro- fessional as soon as possible. In this case, you can drive in the same condition as in the “D”...
  • Page 262 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE 1: Upshifting 2: Downshifting Gear step functions “M7” (Seventh gear step): The gear step is fixed at seventh gear step. “M6” (Sixth gear step): The gear step is fixed at sixth gear step.
  • Page 263 Have your vehicle checked/repaired by any authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible. In this case, you can drive in the same condition...
  • Page 264 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Gear step functions (e) Using engine braking “D7” (Seventh gear step): To use engine braking, you can downshift The gear step is fixed at seventh gear the transmission as follows: step. Using engine braking in the “M”...
  • Page 265 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Move the shift lever down to the “–” Using engine braking in the “D” position— side or operate the “–” paddle shift To drive in temporary gear step selec- switch to select the “M4” gear step. tion mode, operate the “–”...
  • Page 266 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Vehicles with cruise control—when the NOTICE cruise control is being used, even if you downshift the transmission, engine Never shift into reverse while the ve- braking will not be enabled because hicle is moving.
  • Page 267: Manual Transmission

    Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Manual transmission “SPORT” MODE Push the “SPORT” mode switch to turn the “SPORT” mode on. The “SPORT” indicator light will come on. In the “SPORT” mode, optimum engine brake force can be achieved by limiting the higher ratio, and good response is achieved.
  • Page 268 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE 5−speed manual transmission NOTICE The shift pattern is as shown above. In 3ZR−FAE engine only: To prevent case driving your vehicle with damage to the transmission, observe 6−speed manual transmission, you must the following precautions.
  • Page 269 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Maximum allowable speeds Good driving practice To get on a highway or to pass slower If it is difficult to shift into reverse, put traffic, maximum acceleration may be nec- the transmission in neutral, release the essary.
  • Page 270: Active Torque Control 4Wd

    “ON” position. If the indicator light does not come on when the engine switch is set at the “ON” position or the four−wheel drive lock switch is pushed, contact any authorized Toyota dealer or repairer, or duly qualified and equipped professional.
  • Page 271 If the indicator light does not come on when the “ENGINE START STOP” switch is set at IGNITION ON mode or the four− wheel drive lock switch is pushed, contact any authorized Toyota dealer or repairer, or duly qualified and equipped profession- SYSTEM FAILURE WARNING NOTICE The master warning light and the warning Use the four−wheel drive lock only...
  • Page 272: Traction Control System

    This indicates that the system may not faces. work properly. Contact any authorized Toyota dealer or repairer, or duly qualified Vehicles without smart entry and start sys- and equipped professional to service your tem—When the engine switch is turned to vehicle.
  • Page 273 STOP” switch is in IGNITION ON mode. If the indicator light does not come on when the “ENGINE START STOP” switch is in IGNITION ON mode, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped pro- fessional. SYSTEM FAILURE WARNING...
  • Page 274 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE In the following cases, contact any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional: Vehicles without smart entry and start system—The slip indicator light does not come on when the engine switch is turned to the “ON”...
  • Page 275 (VSC+) system” on page 267 in this Sec- to the “ON” position, contact any autho- tion. rized Toyota dealer or repairer, or another If only the traction control system is duly qualified and equipped professional. turned off, the traction control system will Vehicles with smart entry and start sys- turn on when vehicle speed increases.
  • Page 276 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE —“AUTO LSD” function (on some models) The “AUTO LSD” function aids traction by using the traction control system to control engine performance and braking when either of the front wheels begins to spin.
  • Page 277 VSC+ system may not function correctly. When replacing the tires or wheels, con- tact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. (See “Checking and replacing tires”...
  • Page 278 In the following cases, contact any autho- a few seconds when the “ENGINE START rized Toyota dealer or repairer, or another STOP” switch is in IGNITION ON mode. duly qualified and equipped professional:...
  • Page 279 “ON” position. If the indicator light does not come on when the engine switch is turned to the “ON” position, contact any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional.
  • Page 280: Downhill Assist Control System

    If the vehicle is traveling at a switch is in IGNITION ON mode, contact speed of 25 km/h (15 mph) or less, you any authorized Toyota dealer or repairer, can descend at a constant speed. or another duly qualified and equipped professional.
  • Page 281 If the indicator light does not come on when the switch is pushed, or the indica- tor light flashes when the transmission is in “M1”, “D1”, “L” or “R”, contact any au- thorized Toyota dealer or repairer, or another duly qualified and equipped pro- fessional.
  • Page 282 “ON” position. If any of the indicator lights does not come on when the engine switch is turned to the “ON” position, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
  • Page 283 The slip indicator light comes on when In the following cases, contact any autho- there is a problem somewhere in the fol- rized Toyota dealer or repairer, or another lowing systems: duly qualified and equipped professional: Traction control system...
  • Page 284 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Hill−start assist control system The hill−start assist control system as- TO ACTIVATE THE HILL−START ASSIST sists in starting to drive a steep or a CONTROL SYSTEM slippery hill. When you start to move The hill−start assist control system will up a hill slope, the system helps to operate for maximum of 2 seconds.
  • Page 285 “ENGINE START STOP” is operating, the slip indicator light flashes switch is in IGNITION ON mode, contact and the stoplights and high mounted stop- any authorized Toyota dealer or repairer, light are lit. or another duly qualified and equipped professional.
  • Page 286: Parking Brake

    ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Parking brake In the following cases, contact any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional: The slip indicator light does not come on when the engine switch is turned to the “ON”...
  • Page 287: Cruise Control

    Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE Cruise control The cruise control is designed to main- tain a set cruising speed without requir- ing the driver to operate the accelera- tor. Cruising speed can be set to any speed above approximately 40 km/h (25 mph).
  • Page 288 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE If you need acceleration—for example, when passing—depress the accelerator pedal enough for the vehicle to exceed the set speed. When you release it, the vehicle will return to the speed set prior to the acceleration.
  • Page 289 To decrease the your vehicle checked by any authorized vehicle speed, reset to a slower speed Toyota dealer or repairer, or another duly with the cruise control lever or depress qualified and equipped professional, at the the brake pedal.
  • Page 290 Finish RAV4_EE ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE...
  • Page 291: Audio And Hands−Free Phone Systems

    Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS Section 1−8 OPERATION OF INSTRUMENTS AND CONTROLS Audio and hands−free phone systems D Reference ........D Using your audio system .
  • Page 292 Using your audio system— —Some basics (except type Reference This section describes some of the basic features on Toyota audio systems. Some information may not pertain to your sys- tem. Vehicles without smart entry and start sys- tem—Your audio system works when the engine switch is set at the “ACC”...
  • Page 293 The player is intended for use with 12 cm NOTICE (4.7 in.) discs only. z To prevent damage to the antenna, make sure it is removed before driving your Toyota through an au- tomatic car wash. z Before driving, ensure that the an- tenna is installed.
  • Page 294 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS NOTICE z Do not stack up two discs for in- sertion, or it will cause damage to the compact disc player. Insert only one compact disc into slot at a time. z Never try to disassemble or oil any part of the compact disc player.
  • Page 295: Controls And Features

    Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Controls and features "Type 1 Details of specific buttons, controls and features are described in the alphabetical list that follows.
  • Page 296 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS 1 2 3 4 5 6 (Preset buttons) To turn the AF function off, push the but- ton once again. These buttons are used to preset and tune in radio stations. To preset a station to a button: Tune in AM−DAB the desired station.
  • Page 297 MP3/WMA data disc. If the malfunction still exists, take your DISC·AUX (Compact Disc) vehicle to any authorized Toyota dealer or Push the “DISC·AUX” button to play a repairer, or another duly qualified and compact disc. Each time you push this equipped professional.
  • Page 298 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS MP3/WMA player PTY (Program Type) This button is used to change the display When you push the “PTY” button while for the MP3/WMA file that contains text receiving an RDS station, the current pro- data.
  • Page 299 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS RAND (Random) RPT (Repeat) Compact disc player Compact disc player There are two random features—You can There are two repeat features—You can either listen to the tracks on one compact either replay a disc track or a whole com- disc in random order, or listen to the pact disc.
  • Page 300 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS SEEK/TRACK (Seeking/Track up/down) ST (Stereo reception) display Radio Your radio automatically changes to stereo reception when a stereo broadcast is re- In the seek mode, the radio finds and ceived. “ST” appears on the display. If the plays the next station up or down the signal becomes weak, the radio reduces station band.
  • Page 301 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS In the TA mode, the radio will begin seek- TUNE·FILE (Tuning/file up/down) ing a TP station. It sounds only when a Radio TP station is received. When a TP station Turn the “TUNE·FILE” knob clockwise to is received, the program service name will step up the frequency.
  • Page 302 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS "Type 2 Details of specific buttons, controls and features are described in the alphabetical list that follows.
  • Page 303 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS 1 2 3 4 5 6 (Preset buttons) AF (Alternative Frequency) These buttons are used to preset and This button is used for seeking RDS (Ra- tune in radio stations. dio Data System) stations all over the band.
  • Page 304 If the malfunction still exists, take your even if noise levels rise while driving. vehicle to any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. DISC·AUX (Compact Disc) Push the “DISC·AUX” button to play a compact disc.
  • Page 305 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS TEXT  FOLDER  (Folder up/down) Compact disc player To skip up or down to a different folder: Push the “” (preset button 5) or “” This button is used to change the display (preset button 6) until the number of the for the compact disc that contains text folder you want to listen to appears on...
  • Page 306 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS PTY (Program Type) RAND (Random) When you push the “PTY” button while Compact disc player receiving an RDS station, the current pro- There are two random features—You can gram type appears on the display. either listen to the tracks on one compact Each time you push the “PTY”...
  • Page 307 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS RPT (Repeat) SEEK/TRACK (Seeking/Track up/down) Compact disc player Radio There are two repeat features—You can In the seek mode, the radio finds and either replay a disc track or a whole com- plays the next station up or down the pact disc.
  • Page 308 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS ST (Stereo reception) display In the TA mode, the radio will begin seek- ing a TP station. It sounds only when a Your radio automatically changes to stereo TP station is received. When a TP station reception when a stereo broadcast is re- is received, the program service name will ceived.
  • Page 309 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS TUNE·FILE (Tuning/file up/down) Radio Turn the “TUNE·FILE” knob clockwise to step up the frequency. Turn the knob counterclockwise to step down the fre- quency. MP3/WMA player Turn the knob clockwise to file up. Turn the knob counterclockwise to file down.
  • Page 310 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS "Type 3 Refer to separate ““touch screen” Owner’s manual”.
  • Page 311 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS...
  • Page 312 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS...
  • Page 313 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS...
  • Page 314: Audio Remote Controls

    Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS Audio remote controls AUX port (steering switches) Type A An AUX port is installed in the rear console box. By inserting a mini plug into the AUX port, you can listen to music from a portable audio device through the vehicle’s speaker system.
  • Page 315 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS “+ −” switch Compact disc player Push “+” side to increase the volume. The To select a desired track: volume continues to increase while the Quickly push and release the “” or “” switch is being pushed.
  • Page 316 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS Audio system operating hints CARING FOR YOUR COMPACT DISC NOTICE PLAYER AND DISCS To ensure correct audio system op- Your compact disc player is intended erations: for use with 12 cm (4.7 in.) discs only. z Be careful not to spill beverages Extremely high temperatures can keep over the audio system.
  • Page 317 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS Special shaped discs Use only compact discs marked as shown above. The following products may not be playable on your compact disc player. Copy−protected CD CD−ROM Transparent/translucent discs Low quality discs...
  • Page 318 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS Correct Wrong Labeled discs Handle compact discs carefully, espe- cially when you set them into the mag- azine. Hold them on the edge and do NOTICE not bend them. Avoid getting finger- z Do not use special shaped, trans- prints on them, particularly on the shiny side.
  • Page 319 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS MP3/WMA FILES MP3 (MPEG Audio Layer 3) and WMA (Windows Media Audio) are audio com- pression standards. The MP3/WMA player can play MP3 and WMA files on CD−ROM, CD−R and CD−RW discs. The unit can play disc recordings com- patible with ISO 9660 level 1 and level 2 and with the Romeo and Joliet file system.
  • Page 320 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS The sound quality of MP3/WMA files generally improves with higher rates. In order to achieve a reasonable 001.mp3 level of sound quality, discs recorded 002.wma with a bit rate of at least 128 kbps are recommended.
  • Page 321 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS CD−R and CD−RW discs TERMS CD−R/CD−RW discs that have not been Packet write— subject to the “finalizing process” (a This is a general term that describes the process that allows discs to be played process of writing data on−demand to on a conventional CD player) cannot CD−R, etc., in the same way that data is...
  • Page 322 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS Hands−free phone system— —Reference ISO 9660 format— Phone Setup (see page 320) Pair phone This is the international standard for the formatting of CD−ROM folders and files. To use the hands−free system, you For the ISO 9660 format, there are two need to register your phone in the sys- levels of regulations.
  • Page 323 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Some basics Delete Speed Dial The registered speed dial can be de- leted. List names The registered names can be checked. Set Speed Dial Speed dials can be set Redial (see page 329) Callback (see page 330) Making a phone call (see page 331) Receiving a phone call (see page 331)
  • Page 324 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS This system supports Bluetoothr, a The system may not function in the follow- wireless system that allows you to ing conditions and places: make or receive calls without taking The cellular phone is turned off. your hands from the steering wheel and The current position is outside the without using cables to connect the...
  • Page 325 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS When transferring ownership of the ve- hicle: A lot of personal data is registered when you use the hands−free system. When transferring ownership of the ve- hicle, initialize the system. If you initialize it, the former state will never come back again.
  • Page 326 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS...
  • Page 327 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS...
  • Page 328 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Control and features "Steering switches and microphone 1. Volume control switch To increase the volume: Push “+”. To decrease the volume: Push “−”. The volume continues increasing or de- creasing while the switch is being pushed. When driving at 80 km/h (50 mph) or more, the volume automatically increases without switch adjustment.
  • Page 329 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS "Audio unit 1. Display 3. “TEXT” button Displays such items as the reception lev- When the party’s name or phone number el, a party’s name and phone number. See is too long to be displayed, pushing and “DISPLAY”...
  • Page 330: Phone Setup

    Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Phone Setup The phone setup menu includes the fol- lowing: Pair Phone To use the hands−free system, you need to register your phone in the system. Once you have registered it, you can make a hands−free call.
  • Page 331 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS To pair phones To select a phone 1. Turn the “AUDIO/CONTROL” knob until Turn the “AUDIO/CONTROL” knob until “Pair Phone” is displayed and push the “Select Phone” is displayed and push the knob. knob.
  • Page 332 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS When the phone is selected by using Delete the knob: Turn the “AUDIO/CONTROL” knob until Turn the “AUDIO/CONTROL” knob until “Delete” is displayed and push the knob. the phone name that you want to change For further details on deleting a phone, is displayed and push the knob.
  • Page 333 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Security When using the knob: The security menu includes the following: Turn the “AUDIO/CONTROL” knob until Set PIN (Personal Identification Num- the phone name you want to delete is ber) displayed and push the knob. The PIN can be set or changed.
  • Page 334 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS When using the knob: “Locked” is displayed. 1. Turn the “AUDIO/CONTROL” knob to The system may not function in the follow- select a number. Push the “AUDIO/ ing cases: CONTROL” knob to set. If the current number is not correct.
  • Page 335: System Setup

    Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —System Setup —Phone Book The system setup menu includes the fol- The phone book menu includes the follow- lowing: ing: Adjust Guidance Volume Add Entry Initialize Phone numbers and voice tags can be registered.
  • Page 336 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS (a) By Phone (b) Call History 1. Turn the “AUDIO/CONTROL” knob until 1. Turn the “AUDIO/CONTROL” knob until “By Phone” is displayed and push the “Call history” is displayed and push the knob. knob.
  • Page 337 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS To list names When using a voice command: The voice tags can be edited during the Push the talk switch and say the name to name playback. delete. Turn the “AUDIO/CONTROL” knob until “XXXX”...
  • Page 338 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS When using a voice command: When using the knob: Push the talk switch and say the name to 1. Turn the “AUDIO/CONTROL” knob until change. the dial number that you want to regis- ter is displayed and push the knob.
  • Page 339 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Redial The following can be performed: If the phone book is locked. Dial INFORMATION Delete z Up to five outgoing calls can be Store stored in the system. To enter the redial z When five outgoing calls are stored 1.
  • Page 340 Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Callback The following can be performed: If the phone book is locked. Dial INFORMATION Delete z Up to five incoming calls can be Store stored in the system. To enter the callback z When five incoming calls are stored 1.
  • Page 341: Making A Phone Call

    Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Making a phone call —Receiving a phone call If the cellular phone is not registered, this When receiving a phone call, a ring tone system cannot be used. See page 320 for is audible and the system changes into registering a cellular phone.
  • Page 342: Talking On The Phone

    Finish RAV4_EE AUDIO AND HANDS−FREE PHONE SYSTEMS —Talking on the phone While talking on the phone, the display is as follows. The display differs depending on whether or not the vehicle is in motion. When the vehicle is stopped: Number is displayed. When the vehicle is in motion: “Talking”...
  • Page 343: Air Conditioning System

    Finish RAV4_EE AIR CONDITIONING SYSTEM Section 1−9 OPERATION OF INSTRUMENTS AND CONTROLS Air conditioning system D Manual air conditioning system Controls ..........Air flow selector settings .
  • Page 344: Manual Air Conditioning System

    Finish RAV4_EE AIR CONDITIONING SYSTEM Manual air conditioning system— —Controls 1. Air flow selector 4. “A/C” button (on some models) 2. Fan speed selector 5. Air intake selector 3. Temperature selector...
  • Page 345 Finish RAV4_EE AIR CONDITIONING SYSTEM Fan speed selector Turn the dial to adjust the fan speed—to the right to increase, to the left to de- crease. Temperature selector Turn the dial to adjust the temperature—to the right to warm, to the left to cool. Air flow selector Turn the dial to select the vents used for air flow.
  • Page 346 Finish RAV4_EE AIR CONDITIONING SYSTEM “A/C” button (on some models) To turn on the air conditioning, press the “A/C” button. The “A/C” button indicator will come on. To turn the air conditioning off, press the button again. Air intake selector Press the button to select the air source.
  • Page 347 AIR CONDITIONING SYSTEM —Air flow selector settings —Operating tips To cool off your Toyota after it has been parked in the hot sun, drive with the windows open for a few minutes. This vents the hot air, allowing the air conditioning to cool the interior more quickly.
  • Page 348 Finish RAV4_EE AIR CONDITIONING SYSTEM Ventilation NOTICE For best results, set controls to: To prevent battery discharge, do not Fan speed—Any setting except “0” leave the air conditioning system on Temperature—Towards COLD longer than necessary when the en- (blue zone) gine is stopped.
  • Page 349 Finish RAV4_EE AIR CONDITIONING SYSTEM Defrosting The outside of the windshield For best results, set controls to: Fan speed—Any setting except “0” Temperature—Towards WARM (red zone) Air intake—FRESH (outside air) Air flow—WINDSHIELD Air conditioning—OFF When turning the air flow selector to wind- shield position, the air intake selects FRESH automatically.
  • Page 350: Automatic Air Conditioning System

    Finish RAV4_EE AIR CONDITIONING SYSTEM Automatic air conditioning system— —Controls "Left−hand drive vehicles 1. “TEMP” (driver side temperature 7. “PASS TEMP” (front passenger side control) button temperature control) button 2. Air intake selector 8. Pollen removal mode button 3. Air flow selector 9.
  • Page 351 Finish RAV4_EE AIR CONDITIONING SYSTEM "Right−hand drive vehicles 1. “PASS TEMP” (front passenger side 7. “TEMP” (driver side temperature temperature control) button control) button 2. “DUAL” button 8. “AUTO” button 3. “A/C” button 9. “OFF” button 4. Air flow selector 10.
  • Page 352 Finish RAV4_EE AIR CONDITIONING SYSTEM “AUTO” button “TEMP” (driver side temperature con- trol) button For automatic operation of the air condi- tioning, push the “AUTO” button. An indi- To increase the temperature, press the cator light will illuminate to show that the “”...
  • Page 353 Finish RAV4_EE AIR CONDITIONING SYSTEM Windshield air flow button When this button is pressed, air flows mainly from the windshield vents and the FRESH mode is automatically set if the temperature is 5_C (41_F) or below. This setting clears the front view more quickly. If you want to return the setting to RECIRCULATE mode, press the air intake selector button once again.
  • Page 354 Finish RAV4_EE AIR CONDITIONING SYSTEM “A/C” button To turn on the air conditioning, press the “A/C” button. The “A/C” button indicator will come on. To turn the air conditioning off, press the button again. Pollen removal mode button Push the button to remove the airborne pollen from the cabin as soon as possible.
  • Page 355 AIR CONDITIONING SYSTEM —Air flow selector settings —Operating tips To cool off your Toyota after it has been parked in the hot sun, drive with the windows open for a few minutes. This vents the hot air, allowing the air conditioning to cool the interior more quickly.
  • Page 356 Finish RAV4_EE AIR CONDITIONING SYSTEM Air conditioning NOTICE For best results, set controls to: To prevent battery discharge, do not —For automatic operation leave the air conditioning system on longer than necessary when the en- Press in the “AUTO” button. gine is stopped.
  • Page 357 Finish RAV4_EE AIR CONDITIONING SYSTEM Defogging and defrosting —The outside of the windshield —The inside of the windshield For best results, set controls to: For best results, set controls to: —For automatic operation —For automatic operation Temperature—Towards high temperature Air intake—FRESH (outside air) Temperature—Towards high temperature Air flow—WINDSHIELD to heat;...
  • Page 358 Finish RAV4_EE AIR CONDITIONING SYSTEM Instrument panel vents Center vents You can change air flow direction by turn- ing the side vents. Open Close Side vents If air flow control is not satisfactory, check the instrument panel vents. The instrument panel vents may be opened or closed as shown.
  • Page 359: Power Heater

    Finish RAV4_EE AIR CONDITIONING SYSTEM Power heater When the power heater is turned on or off, some white smoke and a slight odor may be emitted from the exhaust located under the floor. If the power heater is being used under extremely cold condi- tions, vapor may be visible from the ex- haust.
  • Page 360 If you notice anything unusual, such as a fluid leak, smoke or poor operation, turn off the power heater and have your vehicle checked by any authorized Toyota dealer or re- pairer, or another duly qualified and equipped professional.
  • Page 361: Air Conditioning Filter

    To maintain the air conditioning efficiency, inspect, clean and replace the air condi- tioning filter according to the maintenance schedule. (For scheduled maintenance in- formation, please refer to the “Toyota Ser- vice Booklet” or “Toyota Warranty Book- let”.) The air conditioning filter is behind the glove box.
  • Page 362 Finish RAV4_EE AIR CONDITIONING SYSTEM 1. Open the glove box. Slide off the 2. Push in each side of the glove box damper as shown. to disconnect the claws.
  • Page 363 Finish RAV4_EE AIR CONDITIONING SYSTEM 3. Remove the filter cover as shown in 4. Pull the filter out of the filter outlet. the illustration. Inspect the filter on the surface. If it is dirty, it should be replaced.
  • Page 364 The use of air condi- If it is not available, have the filter tioning with the air filter removed cleaned by any authorized Toyota dealer may cause deteriorated dustproof per- or repairer, or another duly qualified and formance and then affect air condi- equipped professional.
  • Page 365: Other Equipment

    Finish RAV4_EE OTHER EQUIPMENT Section 1−10 OPERATION OF INSTRUMENTS AND CONTROLS Other equipment D Rear view monitor system ......D Clock .
  • Page 366: Other Equipment

    Finish RAV4_EE OTHER EQUIPMENT Rear view monitor system The rear view monitor system assists To temporarily disable the rear view the driver by displaying an image of monitor system the view behind the vehicle while back- Push the “AUTO” button. The indicator will ing up.
  • Page 367 Finish RAV4_EE OTHER EQUIPMENT To re−enable the rear view monitor sys- Push the “AUTO” button. The indicator will turn green. SELECTING A LANGUAGE You can select English, French or Span- ish for message on the screen. 1. While the screen is on, push and hold the “AUTO”...
  • Page 368 If the back of the vehicle is hit, the position and mounting angle of the camera may change. Be sure to have the camera’s position and mounting angle checked at any au- thorized Toyota dealer or repairer, another duly qualified equipped professional.
  • Page 369 Finish RAV4_EE OTHER EQUIPMENT THE REAR VIEW MONITOR SYSTEM CAMERA The rear view monitor system camera is located on the back door as shown in the illustration. On screen In the following cases, it may become difficult to see the images on the screen, even when the system is functioning.
  • Page 370 Finish RAV4_EE OTHER EQUIPMENT NOTICE z As the camera has a water proof construction, do not detach, disas- semble or modify it. This may cause incorrect operation. z When washing the vehicle, do not apply intensive bursts of water to the camera or camera area.
  • Page 371 Finish RAV4_EE OTHER EQUIPMENT Clock If the electrical power source has been disconnected from the clock, the time dis- play will automatically be set to 1:00 (one o’clock). Manual air conditioning system Automatic air conditioning system To reset the hour: Push the “H” button. To reset the minutes: Push the “M”...
  • Page 372 Vehicles with smart entry and start sys- tem—If the engine is not running, the “ENGINE START STOP” switch must be set at ACCESSORY mode. Do not hold the cigarette lighter pressed Use a Toyota genuine cigarette lighter or equivalent for replacement.
  • Page 373: Power Outlets

    Finish RAV4_EE OTHER EQUIPMENT Power outlets Rear console box The ashtray can be removed and used outside the vehicle. To remove the ashtray, press the adapter (1) and pull it out. CAUTION To reduce the chance of injury in case of an accident or sudden stop while driving, always completely close the ashtray after use.
  • Page 374 Finish RAV4_EE OTHER EQUIPMENT Storage precautions NOTICE CAUTION z To prevent the fuse from being Do not leave glasses, lighters or blown, do not use the electricity spray cans in the storage spaces, as over the total vehicle capacity of 12 this may cause the following when V/120W (front and rear outlets to- cabin temperature becomes high:...
  • Page 375 Finish RAV4_EE OTHER EQUIPMENT Glove box To use the glove box, open by pulling USING GLOVE BOX VENT the lever. On some models— You can lock and unlock the glove box Air from the air conditioner can be distrib- by the master key (vehicles without uted into the glove box by opening and smart entry and start system) or me- closing the vent.
  • Page 376: Auxiliary Box

    Finish RAV4_EE OTHER EQUIPMENT Auxiliary box Auxiliary box (overhead console) (instrument panel) To use the box, open it as shown To open the box, push the “OPEN above. CLOSE” button. To close the box, push the “OPEN CLOSE” button again. CAUTION Do not attempt to open the box forcibly To reduce the chance of injury in...
  • Page 377 Finish RAV4_EE OTHER EQUIPMENT Luggage storage boxes To use the box, do the following. Front: Remove the deck board. Rear (type A): Open the deck board by pulling up the strap. Rear (type B): Fold up the deck board. CAUTION To reduce the chance of injury in case of an accident or a sudden stop, always...
  • Page 378 Finish RAV4_EE OTHER EQUIPMENT Rear console box CONSOLE BOX To access the rear console box, pull up the lock release lever while raising the rear console box lid. CAUTION To reduce the chance of injury in case of an accident or a sudden stop, always keep the console box closed while driving.
  • Page 379 Finish RAV4_EE OTHER EQUIPMENT Front cup holders Rear cup holders The cup holders are designed for hold- The cup holders are designed for hold- ing cups or drink−cans securely. ing cups or drink−cans securely. A detachable adapter is provided for each To use the holder, push down the armrest cup holder.
  • Page 380: Bottle Holders

    Finish RAV4_EE OTHER EQUIPMENT Bottle holders NOTICE Do not put a cup or open bottle in the bottle holder because the con- tents may spill when the door opens or closes. Front door Rear door The bottle holders are designed to hold bottles.
  • Page 381 Finish RAV4_EE OTHER EQUIPMENT Tie−down hooks Grocery bag hooks To secure your luggage, use the tie− This hook is designed to hang things down hooks as shown above. such as grocery bags. See “Luggage stowage precautions” on NOTICE page 402 in Section 2 for precautions when loading luggage.
  • Page 382 Finish RAV4_EE OTHER EQUIPMENT Luggage cover BEFORE USING LUGGAGE COVER Move the rear seats to the rear−most lock position. USING LUGGAGE COVER To use the luggage cover: 1. Attach the front hooks of the lug- gage cover to the head restraint. 2.
  • Page 383 Finish RAV4_EE OTHER EQUIPMENT CAUTION Do not place anything on the lug- gage cover. Such items may be thrown about and possibly injure people in the vehicle during sudden braking or a collision. To reduce the chance of death or serious injury in case of an acci- dent or sudden stop, make sure the luggage cover is secured in place.
  • Page 384 Finish RAV4_EE OTHER EQUIPMENT REMOVING LUGGAGE COVER STOWING LUGGAGE COVER Compress the end of the luggage cover 1. Open the deck board and remove the and lift the cover up. side deck cover. After you remove the luggage cover, stow it under deck board as described below.
  • Page 385 Finish RAV4_EE OTHER EQUIPMENT 2. Insert the right end of the luggage 3. Compress the left end of the lug- cover into the hole in the luggage gage cover, and fit it into the hollow compartment as shown. on the other side of the luggage compartment.
  • Page 386 You can use the tie−down hooks to net which is the option installment kit hooks the claw of the separation net for any authorized Toyota dealer or re- strap. pairer, or another duly qualified and Make sure the net does not interfere with equipped professional.
  • Page 387 Finish RAV4_EE OTHER EQUIPMENT Rear cargo net CAUTION To reduce the chance of injury in case of an accident or sudden stop, make sure the net is secured in place. Do not climb on or hang on the net. To prevent cargo and luggage from sliding forward during braking, do not place anything on the net high- er than the rear seatbacks.
  • Page 388 Finish RAV4_EE OTHER EQUIPMENT USING CARGO NET Compress the left end of the pipe, and fit it into the hole on the other side of the To use the net, insert the right end of the luggage compartment. pipe into the hole. If the cargo net is left to be removed, place it somewhere other than the passen- ger compartment.
  • Page 389 Do not use floor mats designed for other models or different model year vehicles, even if they are Toyota Genuine floor mats. Only use floor mats designed for the driver’s seat. Always install the floor mat secure- ly using the retaining hooks (clips) provided.
  • Page 390 Finish RAV4_EE OTHER EQUIPMENT Before driving: Check that the floor mat is securely fixed in the correct place with all the provided retaining hooks (clips). Be especially careful to perform this check after cleaning the floor. With the engine stopped and the shift lever in “P”...
  • Page 391: Information Before Driving Your Toyota

    Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Section 2 INFORMATION BEFORE DRIVING YOUR TOYOTA D Utility vehicle precautions ......
  • Page 392 Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Utility vehicle precautions CAUTION Always observe the following precau- tions to minimize the risk of death, serious injury or damage to the ve- hicle: In a rollover crash, an unbelted per- son has a significantly higher risk of death or serious injury than a person wearing a seat belt.
  • Page 393 Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Break−in period Drive gently and avoid high speeds. When driving off−road or in rugged Your vehicle does not need an elaborate terrain, do not drive at excessive break−in. But following a few simple tips...
  • Page 394 EU area: Engine damage caused by use of improp- Your vehicle must use only unleaded gasoline conforming to European stan- er fuels is not covered under Toyota’s new dard EN228. vehicle warranty. For optimum engine performance, se- NOTICE...
  • Page 395 Engine damage caused by use of improp- hear steady knocking while holding a er fuels is not covered under Toyota’s new steady speed on level roads, consult any vehicle warranty. authorized Toyota dealer or repairer, or...
  • Page 396 Toyota dealer or repairer, or quality can be guaranteed. In case another duly qualified and equipped pro- of any doubt, ask any authorized fessional.
  • Page 397: Gasoline Engine

    Operation in foreign (gasoline engine) countries Vehicles without smart entry and start sys- If you plan to drive your Toyota in tem—The fuel pump shut off system stops another country... supplying fuel to the engine to minimize First, comply with the vehicle registration the risk of fuel leakage when the engine laws.
  • Page 398 Toyota Maintenance Schedule. For A large amount of unburned gases scheduled maintenance information, following into the three−way catalytic refer to the “Toyota Service Book- converter may cause it to overheat let” or “Toyota Warranty Booklet”. and create a fire hazard. To prevent...
  • Page 399: Catalytic Converters

    To ensure that the catalytic convert- er and the entire emission control system operate properly, your ve- hicle must receive the periodic in- spections required by the Toyota Maintenance Schedule. For sched- uled maintenance information, refer to the “Toyota Service Booklet” or “Toyota Warranty Booklet”.
  • Page 400 To ensure that the catalytic convert- ers and the entire emission control system operate properly, your ve- hicle must receive the periodic in- spections required by the Toyota Maintenance Schedule. For sched- uled maintenance information, refer to the “Toyota Service Booklet” or “Toyota Warranty Booklet”.
  • Page 401 To ensure that the catalytic convert- ers and the entire emission control system operate properly, your ve- hicle must receive the periodic in- spections required by the Toyota Maintenance Schedule. For sched- uled maintenance information, refer to the “Toyota Service Booklet” or “Toyota Warranty Booklet”.
  • Page 402 Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Engine exhaust cautions CAUTION If the smell of exhaust is noticed inside the vehicle, open the win- Exhaust gases include harmful car- dows. Large amounts of exhaust in bon monoxide (CO) that is colorless the vehicle can cause driver drowsi- odorless.
  • Page 403 Oil is also used to lubricate the stems is essential that the oil level be checked of the intake valves. Some of this oil regularly. Toyota recommends that the oil is sucked into the combustion chamber level be checked every time you refuel together with the intake air and is the vehicle.
  • Page 404 Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Long reach iridium−tipped spark plugs (3ZR−FAE Iridium−tipped spark plugs engine) (1AZ−FE engine) Long reach type Your engine is fitted with long reach Your engine is fitted with iridium−tipped iridium−tipped spark plugs. spark plugs.
  • Page 405: Brake System

    Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Brake system The tandem master cylinder brake system ANTI−LOCK BRAKE SYSTEM is a hydraulic system with two separate The anti−lock brake system is designed sub−systems. If either sub−system should to help prevent lock−up of the wheels fail, the other will still work.
  • Page 406 Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA When the anti−lock brake system is ac- Driving over the steps such as the tivated, the following conditions may joints on the road. occur. They do not indicate a malfunc- tion of the system:...
  • Page 407 Con- tact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional, as soon as pos- sible to service the vehicle.
  • Page 408 Contact any switch is set at the “ON” position. If the authorized Toyota dealer or repairer, or anti−lock brake system and the brake as- another duly qualified and equipped...
  • Page 409: Brake Pad Wear Indicators

    Your vehicle has a drum−in−disc type parking brake system. This type of brake system needs bedding−down of the brake shoes periodically or whenever the parking brake shoes and/or drums are replaced. Have any authorized Toyota dealer or re- pairer, another duly qualified and equipped professional, perform the bed- ding−down.
  • Page 410: Electric Power Steering System

    Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Electric power steering system The electric power steering system, us- INFORMATION ing an electric motor, assists the turn- ing of the steering wheel. When the steering wheel is turned, a motor operating sound...
  • Page 411 Vehicles with smart entry start hicle to any authorized Toyota dealer system—The light comes on when the or repairer, or another duly qualified “ENGINE START STOP” switch is in and equipped professional, as soon IGNITION ON mode. If the electric power as possible.
  • Page 412: Luggage Stowage Precautions

    Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Luggage stowage precautions When stowing cargo and luggage in the To prevent cargo and luggage from vehicle, observe the following: sliding forward during braking, do Put cargo and luggage in the luggage not place anything on the net high- compartment when at all possible.
  • Page 413 To use the roof rails as a roof luggage carrier, you must fit the roof rails with two or more genuine Toyota cross rails or their equivalent. Follow the manufacturer’s instructions and precautions when installing the cross rails or their equivalent.
  • Page 414: Vehicle Identification

    This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.
  • Page 415: Engine Number

    Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA —Engine number 3ZR−FAE engine The vehicle identification number (VIN) is also on the manufacturer’s label. 1AZ−FE engine 2AD−FTV and 2AD−FHV engines...
  • Page 416 Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Theft prevention labels (right−hand drive vehicles) The engine number is stamped on the Your new vehicle carries theft preven- engine block as shown. tion labels which are approximately 47 mm (1.85 in.) by 12 mm (0.47 in.).
  • Page 417 Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA Suspension and chassis CAUTION Do not modify the suspension/chassis with lift kits, spacers, springs, etc. It can cause dangerous handling charac- teristics, resulting in loss of control.
  • Page 418 Finish RAV4_EE INFORMATION BEFORE DRIVING YOUR TOYOTA...
  • Page 419: Starting And Driving

    Finish RAV4_EE STARTING AND DRIVING Section 3 STARTING AND DRIVING D Before starting the engine ......D How to start the engine .
  • Page 420: Starting And Driving

    Finish RAV4_EE STARTING AND DRIVING How to start the engine— Before starting the engine —Cranking hold function 1. Check the area around the vehicle be- With smart entry and start system fore entering it. only— 2. Adjust seat position, seatback angle, Once you press the “ENGINE START seat cushion height, head restraint STOP”...
  • Page 421 Finish RAV4_EE STARTING AND DRIVING (b) Starting the engine (without smart entry and (a) Before cranking start system) 1. Apply the parking brake firmly. Before starting the engine, be sure to fol- low the instructions in “(a) Before crank- 2. Turn off unnecessary lights and acces- ing”.
  • Page 422 Finish RAV4_EE STARTING AND DRIVING NOTICE z Do not crank for more than 30 se- conds at a time. This may overheat the starter and wiring systems. z Do not race a cold engine. z If the engine becomes difficult to start or stalls frequently, have the engine checked immediately.
  • Page 423 Finish RAV4_EE STARTING AND DRIVING (b) Starting the engine (with smart entry and start system) Normal starting procedure Gasoline engine—The multiport fuel injec- tion system/sequential multiport fuel injec- tion system in your engine automatically controls the proper air−fuel mixture for starting.
  • Page 424 Section 1−2.) ant temperature is within normal range. You can start the engine by touching the Toyota logo side of the electronic If the engine stalls... key to the “ENGINE START STOP” Simply restart it, using the correct proce- switch.
  • Page 425 Contact any authorized Toyota dealer person. or repairer, or another duly qualified For this reason, it is possible that a pas-...
  • Page 426 Finish RAV4_EE STARTING AND DRIVING SYSTEM FUNCTION REMINDERS (B) A warning buzzer sounds once from the instrument cluster, accompanied Follow the instructions described below if by three warning sounds from the any of the following warnings occur: vehicle when the driver gets out of (A) A warning buzzer sounds once from the vehicle and closes the door the instrument cluster when the...
  • Page 427 Finish RAV4_EE STARTING AND DRIVING (D) A warning buzzer sounds continu- (F) A warning buzzer sounds once from ously from the instrument cluster the instrument cluster and three when opening the driver’s door times from the vehicle when a pas- senger is getting out of the vehicle For automatic transmission and Multidrive only—...
  • Page 428 This indicates a problem with the steering lock function. Have your vehicle checked Get out of the vehicle only after turning at any authorized Toyota dealer or repair- off the engine by pressing the “ENGINE er, or another duly qualified and equipped START STOP”...
  • Page 429: Diesel Engine

    Driving condition and required idling eye! Or, if you would like, any authorized time Toyota dealer or repairer, or another duly qualified and equipped professional, will Normal city driving be pleased to make this check for you at Idling time—Not necessary...
  • Page 430 Finish RAV4_EE STARTING AND DRIVING BEFORE STARTING THE ENGINE AFTER STARTING THE ENGINE Outside the vehicle Exhaust system. Listen for any leakage. Have any leaks fixed immediately. (See Tires (spare included). Check the pres- “Engine exhaust cautions” on page 392 in sure with a gauge and look carefully for Section 2.) cuts, damage, or excessive wear.
  • Page 431 If they still do not work safely, pull to the side of the road and call any authorized Toyota dealer or repairer, or another duly qualified and equipped professional, for assis-...
  • Page 432 Finish RAV4_EE STARTING AND DRIVING Driving in the rain Driving on a slippery road surface CAUTION Drive carefully when it is raining, because visibility will be reduced, the windows may Before driving off, make sure the become fogged−up, and the road will be parking brake is fully released and slippery.
  • Page 433 Keep both hands flooded, be sure to have any autho- and especially your thumbs on the rized Toyota dealer or repairer, or outside of the rim. another duly qualified and equipped Always check your brakes for effec-...
  • Page 434: Winter Driving Tips

    Water entering the engine air intake will cause severe engine damage. “Toyota Super Long Life Coolant” is a mix- ture of 50% coolant and 50% deionized Water can wash the grease from water. This coolant provides protection wheel bearings, causing rusting and down to about −35_C (−31_F).
  • Page 435: Trailer Towing

    Your safety and satisfaction depend This product is available at any authorized on the proper use of correct equipment Toyota dealer or repairer and most auto and cautious driving habits. For your parts stores or another qualified profes- safety and the safety of others, you must sional.
  • Page 436 100 kg (220.5 lb.). : To distinguish the vehicle category, ask The load on the rear axle must not any authorized Toyota dealer or repair- exceed the maximum permissible rear another duly qualified axle capacity by more than 15%.
  • Page 437 : To distinguish the vehicle catego- mum weight rating of the particular ry, ask any authorized Toyota deal- hitch assembly and never exceed er or repairer, or another duly the maximum weight rating speci- qualified and equipped profession- fied for the trailer−hitch.
  • Page 438 Finish RAV4_EE STARTING AND DRIVING Vehicles without over fender mm (in.) 546 (21.5) 550 (21.7) 551 (21.7) 582 (23.0) 591 (23.3) 696 (27.4) 739 (29.1) 761 (30.0) (0.2) (0.9) (1.8) (1.9) (2.2) (2.8) (3.0) 357 (14.1) 387 (15.2) 388 (15.3) 502 (19.8) 504 (19.8) 523 (20.6)
  • Page 439 Finish RAV4_EE STARTING AND DRIVING Vehicles with over fender mm (in.) 546 (21.5) 550 (21.7) 551 (21.7) 582 (23.0) 591 (23.3) 696 (27.4) 739 (29.1) 761 (30.0) (0.2) (0.9) (1.8) (1.9) (2.2) (2.8) (3.0) 358 (14.1) 319 (12.6) 320 (12.6) 433 (17.0) 435 (17.1) 454 (17.9)
  • Page 440 After driving a short distance, BREAK−IN SCHEDULE stop and recheck the lights and con- Toyota recommends that you do not nections. Before actually towing a trail- tow a trailer with a new vehicle or a er, practice turning, stopping and back-...
  • Page 441 Finish RAV4_EE STARTING AND DRIVING Avoid jerky starts or sudden accelera- Be careful when passing other ve- tion. If your vehicle has a manual hicles. Passing requires considerable transmission, prevent excessive clutch distance. After passing a vehicle, do slippage by keeping engine rpm low not forget the length of your trailer and and not racing the engine.
  • Page 442 Finish RAV4_EE STARTING AND DRIVING How to save fuel and make your vehicle last longer When restarting out after parking on a Improving fuel economy is easy—just take slope: it easy. It will help make your vehicle last longer, too. Here are some specific tips 1.
  • Page 443 Finish RAV4_EE STARTING AND DRIVING Avoid unnecessary stopping CAUTION braking. Maintain a steady pace. Try to time the traffic signals so you only Never turn off the engine to coast need to stop as little as possible or down hills. Your power steering and take advantage of through streets to brake booster will not function with- avoid traffic lights.
  • Page 444 Finish RAV4_EE STARTING AND DRIVING...
  • Page 445: In Case Of An Emergency

    Finish RAV4_EE IN CASE OF AN EMERGENCY Section 4 IN CASE OF AN EMERGENCY D If your vehicle will not start ......D If your engine stalls while driving .
  • Page 446 If the engine again. they work, your key may be broken. Have Vehicles with smart entry and start the key checked at any authorized Toyota system—Set “ENGINE START dealer or repairer, or another duly quali- STOP”...
  • Page 447: Diesel Engine

    If they work, your key may be bro- ken. Have the key checked at any autho- If the engine turns over at its normal rized Toyota dealer or repairer, or another speed but will not start— duly qualified and equipped professional.
  • Page 448 2 and step 3 once adjustment or repair. Call any authorized again. Toyota dealer or repairer, or another duly If the engine still does not start, con- qualified and equipped professional, for tact any authorized Toyota dealer or assistance.
  • Page 449 Finish RAV4_EE IN CASE OF AN EMERGENCY (d) Jump starting To avoid serious personal injury and JUMP STARTING PROCEDURE damage to your vehicle which might re- 1. If the booster battery is installed in sult from battery explosion, acid burns, another vehicle, make sure the vehicles electrical burns, or damaged electronic are not touching.
  • Page 450 Finish RAV4_EE IN CASE OF AN EMERGENCY Jumper cable Discharged battery Discharged Jumper cable battery Positive Positive Booster terminal terminal battery (“+” mark) Booster Negative terminal (“+” mark) battery (“−” mark) 3. Make the cable connections in the or- c. Connect the clamp of the negative der a, b, c, d.
  • Page 451 If the cause of your battery discharging is not apparent (for example, lights left on), you should have it checked at any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional. If the first start attempt is not success- ful...
  • Page 452 Finish RAV4_EE IN CASE OF AN EMERGENCY (e) Starting the engine after a If your engine stalls while battery discharge driving With smart entry and start system If your engine stalls while driving... only— 1. Reduce your speed gradually, keeping In the event that the battery is dis- a straight line.
  • Page 453 Stop the ve- hicle and contact any authorized Toyota At this time, vibration may occur. Howev- dealer or repairer, or another duly quali- er, if you depress the accelerator pedal...
  • Page 454: If Your Vehicle Overheats

    Call any authorized perience a loss of power, or if you hear Toyota dealer or repairer, or another a loud knocking or pinging noise, the duly qualified and equipped profession- engine has probably overheated. You al, for assistance.
  • Page 455 After using the kit, the sealant must be collected at any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. Take your vehicle to them for tire repair or replace.
  • Page 456 Finish RAV4_EE IN CASE OF AN EMERGENCY INFORMATION CAUTION If sealant gets on your clothes, it may Never drink sealant in the emergen- stain. cy tire puncture repair kit. If you In the following cases, a tire may go accidentally drink it, drink a large flat.
  • Page 457 −30_C 3. Core turner (−22_F) to 60_C (140_F). 4. Valve core INFORMATION 5. Compressor The sealant should be replaced before the expired date. Consult any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional, for replacement.
  • Page 458 Finish RAV4_EE IN CASE OF AN EMERGENCY —Before putting the sealant into use Before applying the sealant in the emer- gency tire puncture repair kit, check the degree of tire damage. A tire should only be repaired if the damage is caused by a nail or screw passing through the tire tread.
  • Page 459 Emergency repair with the sealant in the kit is not possible in the following cases. Contact any authorized Toyota dealer or repairer, or another duly qual- ified and equipped professional. When the wheel is damaged...
  • Page 460 Finish RAV4_EE IN CASE OF AN EMERGENCY —Emergency repair method Protruding part Valve Valve Core turner 1. Position the nail or screw that has 2. Bring the protruding part of the core punctured the tire at the bottom, in turner into contact with the valve to contact with the ground.
  • Page 461 Finish RAV4_EE IN CASE OF AN EMERGENCY Sealant Valve core Core turner 3. Pull out the valve core by turning it 4. Shake the sealant bottle up and down counterclockwise using the core turner. several times. CAUTION If you turn the core turner forcefully while air is left in the tire, special care should be taken because the valve core could fly out.
  • Page 462 Finish RAV4_EE IN CASE OF AN EMERGENCY Injection hose Sealant 5. Remove the cap of the sealant bottle. 6. Connect the injection hose by screwing onto sealant bottle. NOTICE screwed in, the aluminum seal on the bottle will be torn. Do not remove the inside cap.
  • Page 463 Finish RAV4_EE IN CASE OF AN EMERGENCY Plug Valve Injection hose Injection hose 7. Remove the plug from the injection 8. Connect the injection hose to the hose. valve.
  • Page 464 NOTICE After using sealant, bring the empty bottle of sealant to any authorized Toyota dealer or repairer, or another duly qualified and equipped profes- sional, and purchase a new bottle. Keep the new bottle in your vehicle.
  • Page 465 Finish RAV4_EE IN CASE OF AN EMERGENCY Compressor Power outlet Hose Power plug Pressure gauge Rear console box (for front tire) 11. Connect the air compressor hose by threading it on the valve. CAUTION Power outlet Connect the valve and hose securely with the tire installed on the vehicle.
  • Page 466 “OFF”. If the inflation pressure is not attained within 7 minutes, emergency repair is not possible due to severe damage. Contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. CAUTION Do not touch the inside of the com-...
  • Page 467 Finish RAV4_EE IN CASE OF AN EMERGENCY NOTICE z Do not operate the compressor con- tinuously for more than 10 minutes. The motor may overheat and be damaged. Cool the compressor be- fore using it again. z The compressor is a pneumatic fill- ing type for passenger vehicles.
  • Page 468 Finish RAV4_EE IN CASE OF AN EMERGENCY Pressure gauge 19. Read the inflation pressure on the If the pressure is 130 kPa (1.3 kgf/cm pressure gauge. bar, 18 psi) or above, fill the tire with air using the compressor until the specified inflation pressure is reached.
  • Page 469 Finish RAV4_EE IN CASE OF AN EMERGENCY If you have a flat tire— —Standard tires information 1. Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place well away from the traffic. Avoid stopping on the center divider of a highway.
  • Page 470 Finish RAV4_EE IN CASE OF AN EMERGENCY —Required tools and spare tire 1. Get the required tools and spare tire To remove the spare tire cover (vehicles on the back door. with spare tire): 1. Tool bag 1. Open the back door. Unhook the latch 2.
  • Page 471 Finish RAV4_EE IN CASE OF AN EMERGENCY 2. Close the back door. Remove the If the spare tire is equipped with a wheel spare tire cover by holding the bottom ornament, remove the wheel ornament. and lifting it up and away from the Pry off the wheel ornament, using the vehicle.
  • Page 472 Finish RAV4_EE IN CASE OF AN EMERGENCY —Blocking the wheel To remove the spare tire, turn the hold− 2. Block the wheel diagonally opposite down nuts counterclockwise with the flat tire to keep the vehicle from wheel nut wrench and remove them. rolling when it is jacked up.
  • Page 473 Finish RAV4_EE IN CASE OF AN EMERGENCY —Removing wheel ornament —Loosening wheel nuts Type A 4. Loosen all the wheel nuts. Always loosen the wheel nuts before rais- ing the vehicle. Turn the wheel nuts counterclockwise to loosen. To get maximum leverage, fit the wrench to the nut so that the handle is on the right side, as shown above.
  • Page 474: Positioning The Jack

    Finish RAV4_EE IN CASE OF AN EMERGENCY —Jacking up precaution —Positioning the jack CAUTION When jacking, be sure to observe the following to reduce the possibility of death or serious injury: Follow jacking instructions. Do not put any part of your body under the vehicle supported by the jack.
  • Page 475 Finish RAV4_EE IN CASE OF AN EMERGENCY —Raising your vehicle Type A Type A only: Assemble the jack handle extension. Type B 6. After making sure that no one is in the vehicle, raise it high enough so that the spare tire can be installed. Remember you will need more ground clearance when putting on the spare tire than when removing the flat tire.
  • Page 476: Changing Wheels

    Finish RAV4_EE IN CASE OF AN EMERGENCY —Changing wheels 7. Remove the wheel nuts and change Before putting on wheels, remove any cor- tires. rosion on the mounting surfaces with a wire brush or such. Installation of wheels Lift the flat tire straight off and put it without good metal−to−metal contact at the aside.
  • Page 477 Finish RAV4_EE IN CASE OF AN EMERGENCY —Reinstalling wheel nuts Tapered portion 8. Reinstall all the wheel nuts finger CAUTION tight. Reinstall the wheel nuts (tapered end in- Be sure to install the wheel nuts with ward) and tighten them as much as you the tapered end facing inward.
  • Page 478 Finish RAV4_EE IN CASE OF AN EMERGENCY —Stowing flat tire —Lowering your vehicle (vehicles with spare tire) 10. Install the flat tire and spare tire cover on the back door. CAUTION Make sure flat tire and spare tire cov- er are securely in place in their stor- age location to reduce the possibility of personal injury during a collision or sudden braking.
  • Page 479 Finish RAV4_EE IN CASE OF AN EMERGENCY On some models, before stowing the flat On some models, reinstall the wheel orna- tire, remove the center wheel ornament by ment to the flat tire. pushing from the reverse side. 1. Put the wheel ornament into position. Be careful not to lose the wheel ornament.
  • Page 480 Finish RAV4_EE IN CASE OF AN EMERGENCY Guides To install the spare tire cover: 2. Attach the cover by hooking the 2 in- ner protrusions. 1. Insert the hooks under the guides to the upper slots and lower the cover. Check that the cover is securely attached.
  • Page 481 Finish RAV4_EE IN CASE OF AN EMERGENCY —Reinstalling wheel ornament Type A 3. Open the back door. Lock the latch handle which is on the bottom of the cover. 4. Close the back door. Check that the cover is securely in place. Type B 11.
  • Page 482 Finish RAV4_EE IN CASE OF AN EMERGENCY —After changing wheels 12. Check the air pressure of the re- CAUTION placed tire. Adjust the air pressure to the specification Take due care in handling the orna- designated on page 557 in Section 8. If ment to avoid unexpected personal the pressure is lower, drive slowly to the injury.
  • Page 483 Finish RAV4_EE IN CASE OF AN EMERGENCY If your vehicle becomes If your vehicle needs to be stuck towed— If your vehicle becomes stuck in snow, (a) Towing with wheel lift type truck— mud, sand, etc., then you may attempt to rock the vehicle free by moving it forward and backward.
  • Page 484 If towing is necessary, we recommend (a) Towing with wheel lift type truck— you to have it done by any authorized Toyota dealer or repairer, or qualified professional, such as a commercial tow —From front truck service. In consultation with them, have your vehicle towed using either (a) or (b).
  • Page 485 Finish RAV4_EE IN CASE OF AN EMERGENCY TOWING PRECAUTIONS: Use a safety chain system for all towing, and abide by the state/provincial and local laws. Two−wheel drive models—If towing your vehicle with a wheel lift type truck from the front, the vehicle’s rear wheels and axles must be in good conditions.
  • Page 486 Finish RAV4_EE IN CASE OF AN EMERGENCY Four−wheel drive models— All models— (a) Towing with wheel lift type truck (b) Using flat bed truck Use a towing dolly under the wheels not If you use chains or cables to tie down lifted by the truck.
  • Page 487: Emergency Towing

    Rear If towing is necessary, we recommend you to have it done by any authorized Toyota dealer or repairer, or qualified professional, such as a commercial tow truck service. If towing service is not available in an...
  • Page 488 Finish RAV4_EE IN CASE OF AN EMERGENCY To install the front towing eyelet, see A driver must be in the vehicle to steer “—Installing front towing eyelet” described it and operate the brakes. below. Towing in this manner may be done only on hard−surfaced roads for a short dis- NOTICE tance and at low speeds.
  • Page 489 Finish RAV4_EE IN CASE OF AN EMERGENCY —Installing front towing eyelet Vehicles without smart entry and start sys- tem—Before towing, release the parking brake and put the transmission in neutral (manual transmission) or “N” (automatic transmission or Multidrive). The engine switch must be set at the “ACC”...
  • Page 490 Finish RAV4_EE IN CASE OF AN EMERGENCY 2. Use the front towing eyelet in the tool 3. Tighten the front towing eyelet securely bag. Secure it to the hole on the by a wheel nut wrench. bumper by turning clockwise. (For the tool bag location, see “—Required tools CAUTION and spare tire”...
  • Page 491 If the towing vehicle can hardly move, do not forcibly continue the towing. Contact authorized Toyota dealer repairer, qualified professional, such as a commercial tow truck service. Tow the vehicle as straight ahead as possible.
  • Page 492: If You Lose Your Keys

    Vehicles without smart entry and start sys- tem—Even if you lose only one key, con- tact any authorized Toyota dealer or re- pairer, another duly qualified and equipped professional, to make a new key.
  • Page 493 Finish RAV4_EE IN CASE OF AN EMERGENCY If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle us- ing the following procedure: 1.
  • Page 494 Finish RAV4_EE IN CASE OF AN EMERGENCY Press and hold for 3 seconds or more 4. Vehicles with a smart entry and start system—Stop the engine by pressing holding “ENGINE START STOP” switch for 3 consecutive sec- onds or more. 5.
  • Page 495: Corrosion Prevention And Appearance Care

    Section 5 CORROSION PREVENTION AND APPEARANCE CARE D Protecting your Toyota from corrosion ....D Washing and waxing your Toyota ....
  • Page 496: Protecting Your Toyota From

    Now, it is up to clean by regular washing, but to prevent you. Proper care of your Toyota can help corrosion, the following points should be ensure long−term corrosion prevention. observed:...
  • Page 497 The following cases may cause weak- shields are installed be treated to resist ness to the paint or corrosion to the corrosion. Your authorized Toyota dealer body components. (aluminum or repairer, or another duly qualified and wheels etc.) Wash your vehicle as...
  • Page 498 Finish RAV4_EE CORROSION PREVENTION AND APPEARANCE CARE Hand−washing your Toyota Plastic wheel ornaments: plastic wheel ornaments are damaged easily by Work in the shade and wait until the organic substances. If any organic sub- vehicle body is not warm to the touch.
  • Page 499 If you accidentally make sure it is removed before put wax on the light surfaces, wipe or driving your Toyota through an au- wash it off. tomatic car wash. 3. Wax the vehicle again when water...
  • Page 500: Cleaning The Interior

    Finish RAV4_EE CORROSION PREVENTION AND APPEARANCE CARE Cleaning the interior Touch−up paint CAUTION Touch−up paint may be used to cover small chips or scratches. Do not splash or spill liquid in the Apply the paint soon after the damage vehicle. Doing so may cause electri- occurs or corrosion may set in.
  • Page 501 Finish RAV4_EE CORROSION PREVENTION AND APPEARANCE CARE Vinyl interior Seat belts The vinyl upholstery may be easily The seat belts may be cleaned with cleaned with a mild soap or detergent mild soap and water or with lukewarm and water. water.
  • Page 502 Improper cleaning of the leather up- holstery could result in discolor- ation or staining. If you have any questions about the cleaning of your Toyota, any authorized Toyota dealer or repairer, or another duly qualified equipped professional, will be pleased to answer them.
  • Page 503 Finish RAV4_EE CORROSION PREVENTION AND APPEARANCE CARE Rain clearing mirrors (on some models) The outside rear view mirrors have NOTICE been coated to produce a “rain clear- ing” effect. This coating causes the To maintain the rain clearing ability, raindrops to spread, clearing the driv- and prevent the mirrors from being er’s rear view when it rains.
  • Page 504 Finish RAV4_EE CORROSION PREVENTION AND APPEARANCE CARE...
  • Page 505: Maintenance Requirements

    Finish RAV4_EE MAINTENANCE REQUIREMENTS Section 6 MAINTENANCE REQUIREMENTS D Maintenance facts ....... . . D Does your vehicle need repairing? .
  • Page 506: Maintenance Requirements

    Toyota vehicles, members of We urge you to protect your new vehicle the Toyota network will be able to expertly by having your Toyota serviced according assist you with any difficulties you may to the maintenance schedule given in the encounter.
  • Page 507 Engine missing, stumbling, or pinging that repairs and maintenance be con- Appreciable loss of power ducted by an authorized Toyota dealer or repairer, or another duly qualified and Strange engine noises equipped professional.
  • Page 508 Finish RAV4_EE MAINTENANCE REQUIREMENTS...
  • Page 509: Do−It−Yourself Maintenance

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction Section 7−1 DO−IT−YOURSELF MAINTENANCE Introduction D Engine compartment overview ..... . D Fuse locations ........D Do−it−yourself service precautions .
  • Page 510: Engine Compartment Overview

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction Engine compartment overview "3ZR−FAE engine 1. Fuse blocks 6. Condenser 2. Engine coolant reservoir 7. Electric cooling fans 3. Engine oil filler cap 8. Engine oil level dipstick 4. Battery 9. Windshield, rear window washer, and headlight cleaner fluid tank 5.
  • Page 511 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction "1AZ−FE engine 1. Fuse blocks 6. Radiator 2. Engine coolant reservoir 7. Condenser 3. Engine oil filler cap 8. Electric cooling fans 4. Air cleaner 9. Engine oil level dipstick 5. Battery 10. Windshield, rear window washer, and headlight cleaner fluid tank...
  • Page 512 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction "2AD−FTV and 2AD−FHV engines 1. Fuse blocks 7. Intercooler 2. Engine coolant reservoir 8. Condenser 3. Engine oil filler cap 9. Electric cooling fans 4. Fuel filter 10. Engine oil level dipstick 5. Battery 11. Windshield, rear window washer, and headlight cleaner fluid tank 6.
  • Page 513 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction —Removing the engine compartment cover Removing clip Before performing do−it−yourself main- tenance, remove the cover clips. Take off the engine compartment cover as shown in the following illustrations. Be careful not to lose the removed clips. Installing clip...
  • Page 514 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction Fuse locations Left−hand drive vehicles Right−hand drive vehicles...
  • Page 515 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction Do−it−yourself service precautions If you perform maintenance by yourself, be sure to follow the correct procedure Spare fuses given in this Section. You should be aware that improper or in- complete servicing may result in operating problems.
  • Page 516 Be careful of accidentally where you may be exposed to flying causing a short circuit. or falling material, fluid spray, etc. z Add only “Toyota Super Long Life Used engine oil contains potentially Coolant” or similar high quality eth- harmful contaminants which may...
  • Page 517: Positioning A Floor Jack

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction Positioning a floor jack z If you spill brake fluid, be sure to wash it off with water to prevent it from damaging the parts or paint. z Do not drive with the air cleaner filter removed, or excessive engine wear could result.
  • Page 518 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Introduction NOTICE CAUTION Make sure to place the floor jack cor- When jacking, be sure to observe the rectly, or your vehicle may be dam- following to reduce the possibility of aged. death or serious injury: When using a floor jack, follow the instructions of the manual provided with the jack.
  • Page 519: Engine And Chassis

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Engine and Chassis Section 7−2 DO−IT−YOURSELF MAINTENANCE Engine and Chassis D Checking the engine oil level ......D Checking the engine coolant level .
  • Page 520: Checking The Engine Oil Level

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Engine and Chassis Checking the engine oil level CAUTION Low level Full level Be careful not to touch the hot ex- haust manifold. NOTICE Be careful not to drop engine oil on the vehicle components. Add oil O.K.
  • Page 521 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Engine and Chassis ENGINE OIL SELECTION SAE 0W−20 is filled into your Toyota vehicle at manufacturing, and the best 3ZR−FAE engine— choice for good fuel economy and good “Toyota Genuine Motor Oil” is used in starting in cold weather.
  • Page 522 How to read oil container labels 1AZ−FE engine— Either or both API registered marks are “Toyota Genuine Motor Oil” is used in added to some oil containers to help you your Toyota vehicle. Toyota recommends select the oil you should use.
  • Page 523 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Engine and Chassis The 5W portion of the oil viscosity rating indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather. 5W−30 indicates viscosity when the oil is at its operating...
  • Page 524 Oils with a lower “Toyota Genuine Motor Oil” is used in value before the W allow for easier your Toyota vehicle. Toyota recommends starting of the engine in cold weather.
  • Page 525 DO−IT−YOURSELF MAINTENANCE: Engine and Chassis 2AD−FTV (with DPF catalytic converter) and 2AD−FHV (with DPNR catalytic con- verter) engines— “Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota recommends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of matching quality can also be used.
  • Page 526: Checking The Engine Coolant

    “LOW” line, add cool- phosphates and organic acids.) ant. Bring the level between the “FULL” “Toyota Super Long Life Coolant” is a mix- and “LOW” lines. ture of 50% coolant and 50% deionized If the coolant level drops within a short water.
  • Page 527 If any of the above parts are extremely dirty or you are not sure of their condi- tion, take your vehicle to any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. CAUTION To prevent burning yourself, be care-...
  • Page 528: Checking Tire Inflation Pressure

    Possibility of blowouts from an If a tire frequently needs refilling, have it overheated tire checked by any authorized Toyota dealer Poor sealing of the tire bead or repairer, or another duly qualified and Wheel deformation and/or tire sepa- equipped professional.
  • Page 529 The tires on your Toyota have built−in or snow chains. treadwear indicators to help you know when the tires need replacement. When CAUTION the tread depth wears to 1.6 mm (0.06...
  • Page 530: Rotating Tires

    Toyota. Using tires whose previous history is un- known is a risk. Toyota recommends all four tires, or at least both front or rear tires be re- placed at a time as a set. See “If you have a flat tire” on page 459 in Section 4 for tire change procedure.
  • Page 531: Installing Snow Tires And Chains

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Engine and Chassis Installing snow tires and chains See “If you have a flat tire” on page 459 WHEN SNOW TIRES in Section 4 for tire change procedure. CHAINS When rotating tires, check for uneven Snow tires or chains are recommended wear and damage.
  • Page 532 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Engine and Chassis SNOW TIRE INSTALLATION Side chain Snow tires should be installed on all wheels. Installing snow tires on the front wheels only can lead to an excessive difference in road grip capability between the front and rear tires, which could cause loss of Cross chain vehicle control.
  • Page 533: Replacing Wheels

    Correct replacement wheels are available versely affect vehicle handling. at any authorized Toyota dealer or repair- When driving with chains installed, er, or another duly qualified and equipped be sure to drive carefully. Slow professional.
  • Page 534: Aluminum Wheel Precautions

    When using tire chains, be careful not dling characteristics resulting in to damage the aluminum wheels. loss of control. Toyota recommends the use of Toyota Four−wheel drive models: genuine wheel nuts and wrench de- Do not use wheels of different signed for your aluminium wheels.
  • Page 535: Electrical Components

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components Section 7−3 DO−IT−YOURSELF MAINTENANCE Electrical components D Checking battery condition ......D Battery recharging precautions .
  • Page 536: Checking Battery Condition

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components Checking battery condition— —Precautions The electricity stored in the battery will CAUTION discharge gradually even when the vehicle is not in use, due to natural discharge BATTERY PRECAUTIONS and the draining effects of certain electri- cal appliances.
  • Page 537 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —Checking battery exterior c. Tighten the hold−down clamp only Terminals Ground cable enough to keep the battery firmly in place. Overtightening may damage the battery case. NOTICE z Be sure the engine and all accesso- ries are off before performing main- tenance.
  • Page 538 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —Checking battery fluid O.K. Upper line Lower line CHECKING BY FLUID LEVEL LINES ADDING DISTILLED WATER The fluid (electrolyte) level must be be- 1. Remove the vent plugs. tween the upper and lower lines. 2.
  • Page 539: Battery Recharging

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components Battery recharging Checking and replacing fuses precautions During recharging, the battery is pro- ducing hydrogen gas. Therefore, before recharging: 1. If recharging with the battery installed on the vehicle, be sure to disconnect the ground cable. 2.
  • Page 540 Pull the sus- tem. Have any authorized Toyota dealer or pected fuse straight out and check it. repairer, or another duly qualified and...
  • Page 541: Adding Washer Fluid

    This NOTICE product is available at any authorized Do not use engine antifreeze or any Toyota dealer or repairer and most auto other substitute because it may dam- parts stores or another duly qualified age your vehicle’s paint.
  • Page 542: Replacing Light Bulbs

    LEDs. If any of the LEDs burn out, take your vehicle to any authorized Toyota dealer or repairer, or another duly qualified and equipped professional to have the light replaced. CAUTION...
  • Page 543 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —Headlights Light bulbs Type Headlights (high) Headlights (low) Front turn signal lights Parking lights Front fog lights Rear turn signal lights Back−up lights Rear fog lights License plate light 1. Right side only: Remove the clip and Interior light move it aside to allow easy access to the light bulbs.
  • Page 544 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components Low beam High beam (inside) (outside) Type A 2. Type B (low beam) only: Turn the cover counterclockwise and remove High beam (outside) Low beam (inside) Type B 3. Open the hood. Turn the bulb base counterclockwise to the front of the vehicle as shown.
  • Page 545 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components : See “Model code” on page x for de- tails. 4. Unplug the connector while depress- ing the lock release. If the connector is tight, wiggle it.
  • Page 546 5. Plug in a new bulb into the connec- tor and install it into the mounting hole. Aiming is not necessary after replacing the bulb. When aiming adjustment is nec- essary, contact any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional.
  • Page 547: Parking Lights

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —Parking lights Type A 1. Right side only: Remove the clip and move it aside to allow easy access to the light bulbs. Type B 2. Turn the bulb base counterclockwise. : ALA30R−AWFXYW, ALA30R−AWFGYW, ALA30L−AWFXYW, ALA30L−AWFGYW, ACA30L−AWMXKW, ACA30L−AWMGKW, ACA30L−AWPXKW...
  • Page 548 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components Reinstalling clip...
  • Page 549: Front Turn Signal Lights

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —Front turn signal lights Type A 1. Right side only: Remove the clip and move it aside to allow easy access to the light bulbs. Type B 2. Turn the bulb base counterclockwise. : ALA30R−AWFXYW, ALA30R−AWFGYW, ALA30L−AWFXYW, ALA30L−AWFGYW, ACA30L−AWMXKW, ACA30L−AWMGKW, ACA30L−AWPXKW...
  • Page 550 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components Reinstalling clip...
  • Page 551: Front Fog Lights

    Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —Front fog lights 1. Turn the steering wheel in the oppo- 2. Remove the clip using a flathead site direction of the front fog light screwdriver wrapped in a rag. that you wish to replace. For example, if you wish to replace the front fog light on the left side, turn the steering wheel to the right.
  • Page 552 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components 3. Move section “A” of the fender liner 4. To unplug the connector, depress the to the inner side of the vehicle, part- lock release while pulling downward. ly removing it and thereby allowing access to the front fog light.
  • Page 553 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —Rear turn signal and back−up lights Use a flathead screwdriver. 5. Turn the bulb base counterclockwise. a: Rear turn signal light b: Back−up light...
  • Page 554 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —License plate lights —Rear fog lights (with spare tire) Use a flat−bladed screwdriver.
  • Page 555 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components —License plate lights (without spare tire) Use a Phillips−head screwdriver.
  • Page 556 Finish RAV4_EE DO−IT−YOURSELF MAINTENANCE: Electrical components...
  • Page 557: Specifications

    Finish RAV4_EE SPECIFICATIONS Section 8 SPECIFICATIONS D Dimensions ........D Weights .
  • Page 558 Finish RAV4_EE SPECIFICATIONS Dimensions mm (in.) 4335 (170.7) Without spare tire 4365 (171.9) 4385 (172.6) Overall length With spare tire 4415 (173.8) 4415 (173.8) With spare tire cover 4445 (175.0) 1815 (71.5) Overall width 1855 (73.0) 1685 (66.3) Overall height 1720 (67.7) Wheel base...
  • Page 559 Finish RAV4_EE SPECIFICATIONS Weights Engine Gross vehicle mass (GVM), kg (lb.): Model: 2070 (4563) 3ZR−FAE, 1AZ−FE, 2AD−FTV and 2AD− 2110 (4651) 2140 (4718) Type: 2190 (4828) 3ZR−FAE and 1AZ−FE engines Maximum permissible axle capacity 4 cylinder in line, 4 cycle, gasoline (MPAC), kg (lb.): 2AD−FTV and 2AD−FHV engines Front...
  • Page 560 Finish RAV4_EE SPECIFICATIONS Fuel Service specifications Fuel type: ENGINE Gasoline engine Gasoline engine only— EU area: Valve clearance (1AZ−FE engine, cold), Unleaded gasoline conforming to mm (in.): European standard EN228, Re- Intake 0.19—0.29 (0.007—0.012) search Octane Number of 95 or Exhaust 0.30—0.40 (0.012—0.016) higher...
  • Page 561 With filter 5.9 (6.2, 5.2) Without filter 5.5 (5.8, 4.8) ACEA C2 “Toyota Genuine Motor Oil” is used in NOTICE your Toyota vehicle. Toyota recommends the use of approved “Toyota Genuine Using engine oil other than ACEA C2 Motor Oil”. Another motor oil of matching may damage the catalytic converter.
  • Page 562 Finish RAV4_EE SPECIFICATIONS Recommended viscosity (SAE): 2AD−FTV (without DPF catalytic con- verter) engine— 3ZR−FAE engine— —Diesel fuel that contains between 50 ppm and 500 ppm of sulfur Preferred Preferred Temperature range anticipated before next oil change Temperature range anticipated before next oil change 1AZ−FE engine—...
  • Page 563 Without power heater 7.3 (7.7, 6.4) next oil change Coolant type: Your Toyota vehicle is filled with “Toyota Super Long Life Coolant” at the factory. Please contact any authorized Toyota In order to avoid technical problems, dealer or repairer, or another duly quali- only “Toyota...
  • Page 564 Warranty Booklet”. When changing manual transaxle gear oil, use only “Toyota Genu- ine Manual Transmission Gear Oil LV API GL−4 SAE 75W” to aid in assuring opti- mum transaxle performance. Notice: Using a manual transaxle gear oil other than “Toyota Genuine Manual Transmission Gear Oil LV API GL−4...
  • Page 565 Booklet”. When changing the automatic FLUID TC” assuring transaxle fluid, Toyota recommends the optimum transaxle performance. Other use of “Toyota Genuine ATF WS” to aid in transaxle fluids of matching quality can assuring optimum transaxle performance. also be used. Other automatic transaxle fluids matching quality can also be used.
  • Page 566 Finish RAV4_EE SPECIFICATIONS TRANSFER (four−wheel drive models) BRAKES Oil capacity, L (qt., Imp. qt.): Minimum pedal clearance when depressed 0.45 (0.48, 0.40) with a force of 490 N (50 kgf, 110 lbf) with the engine running, mm (in.): Oil type: Hypoid gear oil API GL−5 3ZR−FAE, 2AD−FTV and 2AD−FHV en- gines...
  • Page 567 Finish RAV4_EE SPECIFICATIONS Tires Fuses Tire size: 215/70R16 99H 225/65R17 101H 235/55R18 99H Cold tire inflation pressure, kPa (kgf/cm or bar, psi): 220 (2.2, 32) Wheel nut torque, N·m (kgf·m, ft·lbf): 103 (10.5, 76) NOTE: For a complete information on tires (e.g.
  • Page 568 Finish RAV4_EE SPECIFICATIONS 8. ECU−B 10 A: Main body ECU (wire- 23. RDI 30 A: Electric cooling fan less remote control system, electric 24. CDS 30 A: Electric cooling fan power steering system, power door 25. H−LP CLN 30 A: Headlight cleaner lock, smart entry and start system), clock, audio system, navigation system, meters and gauges...
  • Page 569 Finish RAV4_EE SPECIFICATIONS 8. EFI NO.2 10 A: Multiport fuel injection system/sequential multiport fuel injec- tion system 9. EFI NO.3 7.5 A: Multiport fuel injection system/sequential multiport fuel injec- tion system 10. EFI MAIN 20 A: Multiport fuel injection system/sequential multiport fuel injec- tion system, “EFI NO.1”, “EFI NO.3”...
  • Page 570 Finish RAV4_EE SPECIFICATIONS 8. STOP 10 A: Stop/tail lights, high mounted stoplight, shift lock system, multiport fuel injection system/sequen- tial multiport fuel injection system, anti− lock brake system, traction control sys- tem, VSC+ system, downhill assist control system, hill−start assist control system 9.
  • Page 571 Finish RAV4_EE SPECIFICATIONS 26. IGN 7.5 A: SRS airbag system, multi- port fuel injection system/sequential multiport fuel injection system, steering lock system, smart entry and start sys- tem, starting system 27. GAUGE2 7.5 A: Meters and gauges 28. DEF 30 A: Rear window defogger, “MIR HTR”...
  • Page 572 Finish RAV4_EE SPECIFICATIONS...
  • Page 573: Index

    Finish RAV4_EE INDEX Section 9 INDEX...
  • Page 574 Appearance care Cleaning the interior ....Protecting your Toyota from Carbon monoxide caution ... . corrosion .
  • Page 575 Finish RAV4_EE INDEX Cold weather Driving tips Operation ......Driving in the rain ....Compact disc changer .
  • Page 576 Finish RAV4_EE INDEX Jump starting ..... Loosening wheel nuts ....Overheating .
  • Page 577 Finish RAV4_EE INDEX Hands−free phone system ... . Light bulbs ......Hazard switch .
  • Page 578 Folding rear view ....Protecting your Toyota from Outside rear view ....
  • Page 579 Finish RAV4_EE INDEX Side doors ......Passenger airbag manual Smart entry and start system on−off .
  • Page 580 Finish RAV4_EE INDEX Vanity mirrors ..... . . Vehicle identification number ..Vehicle stability control+system .

Table of Contents

Save PDF
