TIG welding

5.8.1

Welding torch and workpiece line connection

1
Item Symbol Description
1
2
3
4
5
6
7
099-005183-EW501
17.12.2010
2
0
Welding torch
Welding torch hose package
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
19-pole connection socket (analogue)
For connecting analogue remote controls
Welding current cable, polarity selection
Welding current to the central connector/torch, enables polarity selection.
• TIG: Connection socket for "-" welding current
Connection socket, "+" welding current
• TIG welding:
Workpiece
Design and function
3
6
4

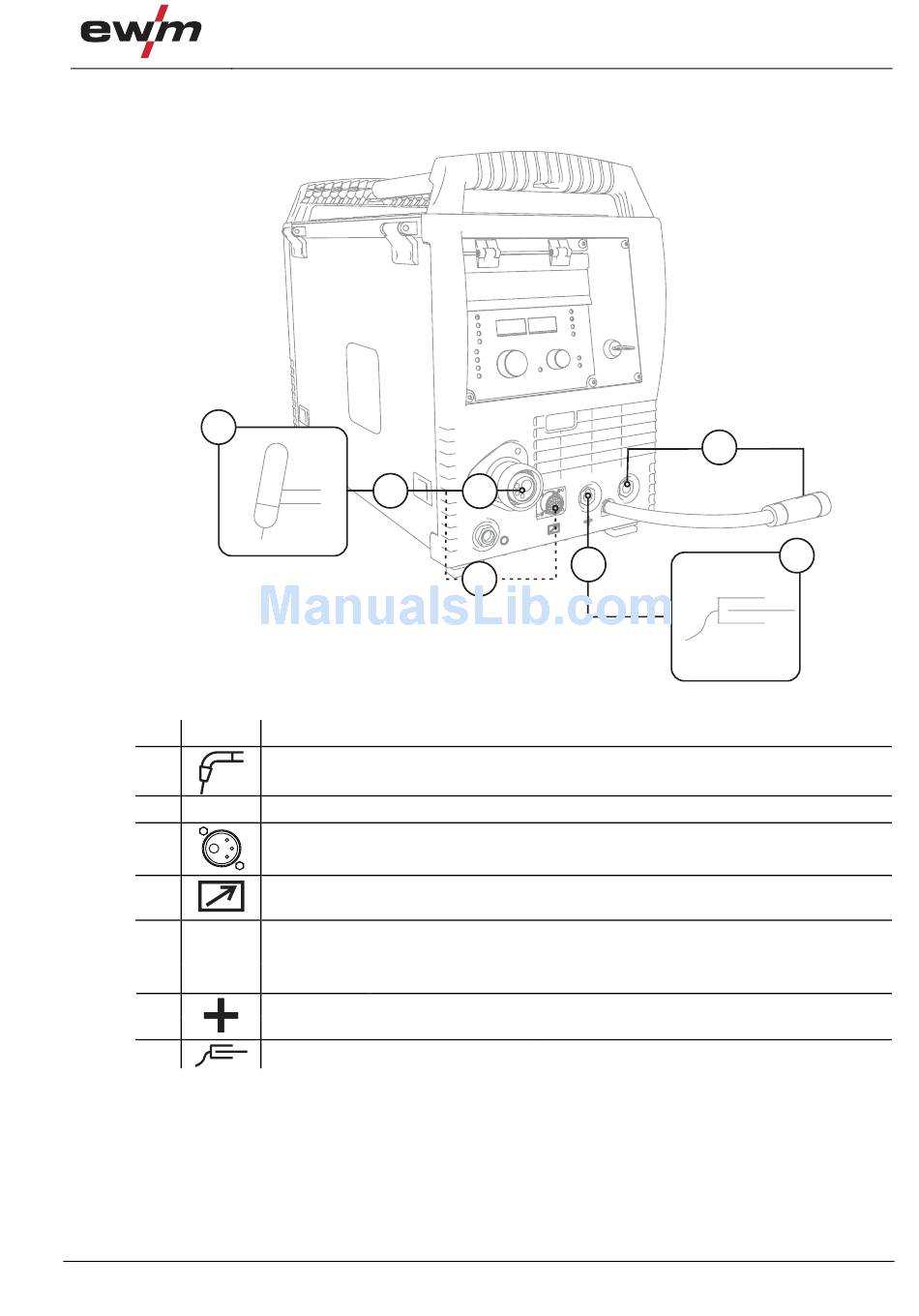

Figure 5-43
Workpiece connection
TIG welding
5
7
