5.7.1.2

MIG/MAG cored wire welding with a negative wire electrode

Item Symbol Description
1
2
3
4
5
6
7
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Insert the plug on the workpiece lead into the "+" welding current connection socket and lock.
• Welding current lead, insert polarity selection into the "-" welding current connection socket and lock.
Where applicable:
Only MIG/MAG torches with special functions (additional control lead):
• Insert the torch control lead plug into the 19-pole connection socket and lock in place.
099-005183-EW501
17.12.2010
0
Welding torch
Welding torch hose package
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
19-pole connection socket (analogue)
Connection for welding torch control lead
Connection socket, "+" welding current
Connection socket, "-" welding current
Workpiece
Design and function

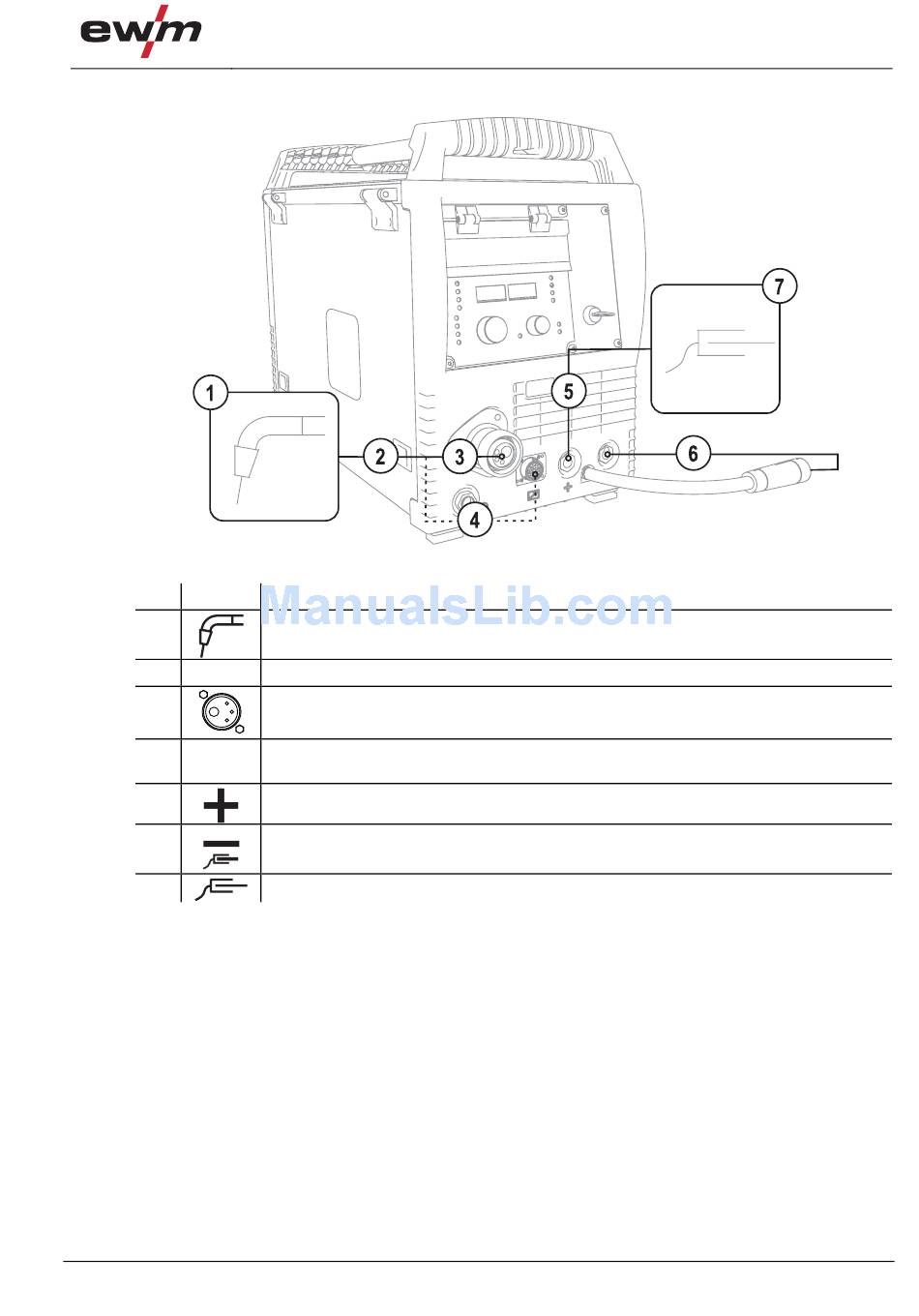

Figure 5-5
MIG/MAG welding
31
