Connecting The Electrode Holder And Workpiece Lead - EWM Phoenix 335 Progress Puls FA KGE Operating Instructions Manual

5.9.1

Connecting the electrode holder and workpiece lead

5
Item Symbol Description
1
2
3
4
5
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert the polarity selection plug in the park socket and lock in place by turning to the right.
The polarity depends on the manufacturer instructions given on the filler material
packaging.
099-005183-EW501
17.12.2010
2
1
0
Workpiece
Connection socket, "+" welding current
• MMA welding:
"-" welding current connection socket
• MMA welding:
Park socket, polarity selection plug
Retainer for the polarity selection plug in MMA mode or for transport.
Electrode holder
Design and function
3
4

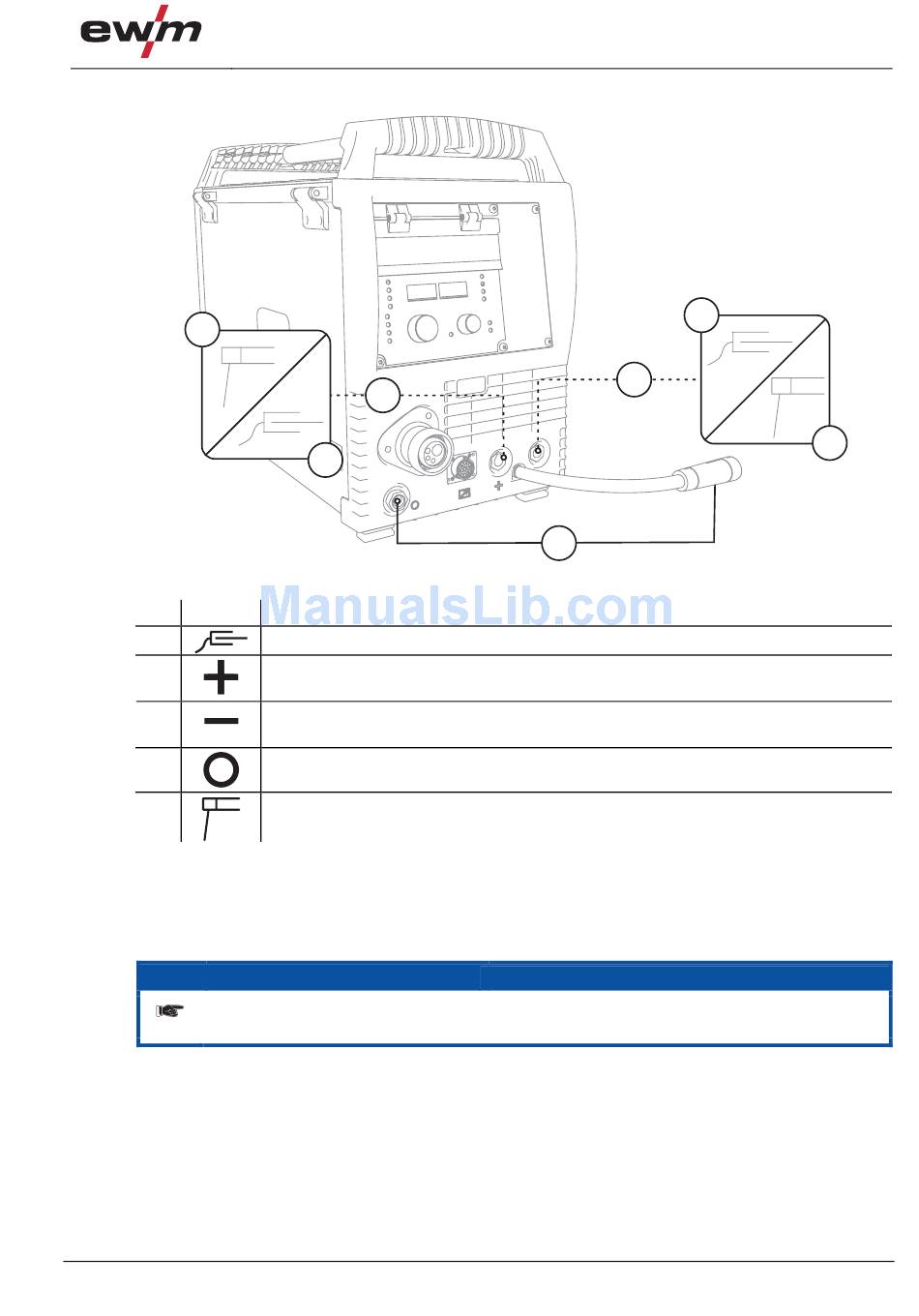

Figure 5-50
Workpiece connection
electrode holder connection
