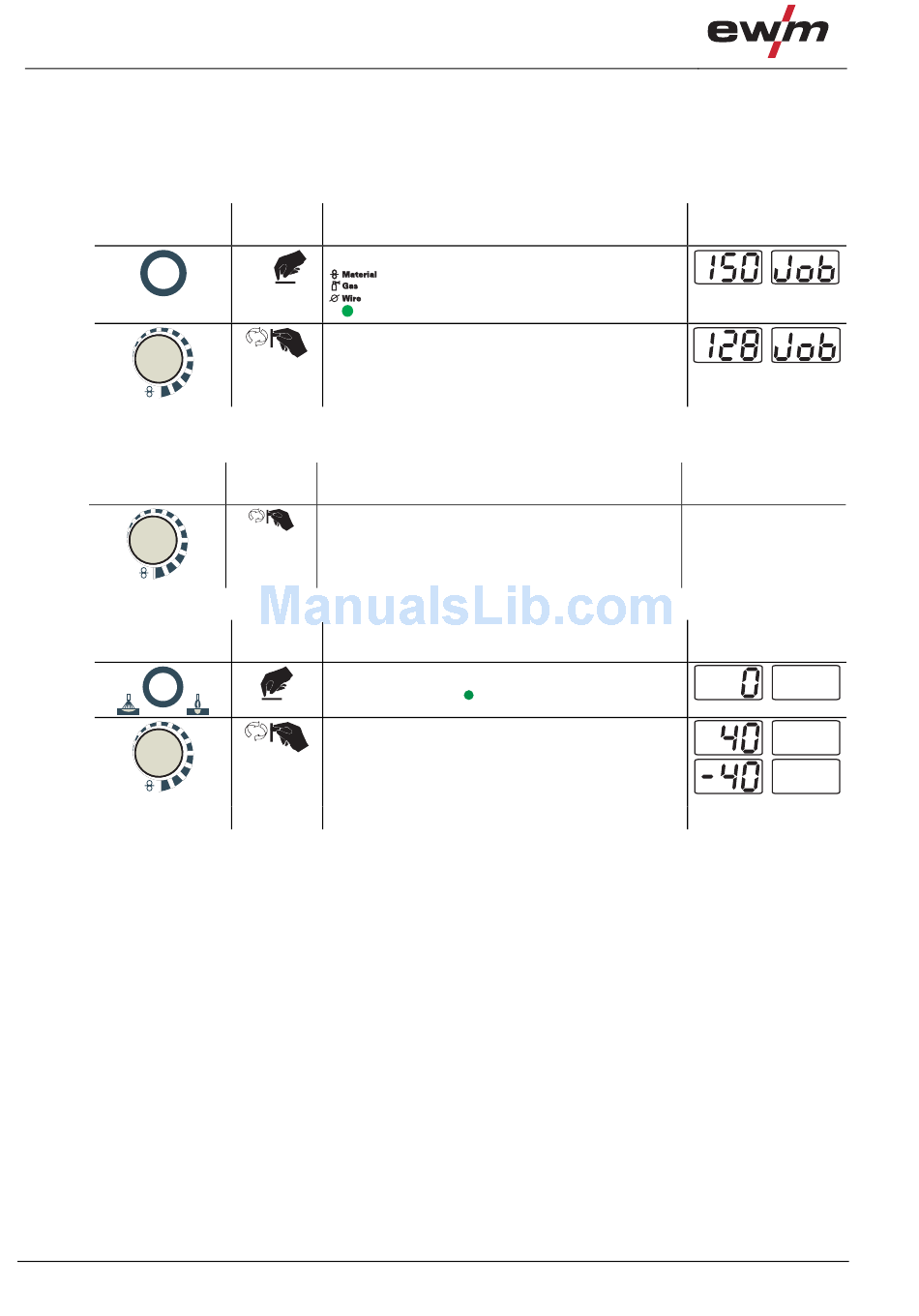

Welding task selection

• Select JOB 128 (MMA welding task).
It is only possible to change the JOB number when no welding current is flowing.
On decompact welding systems, the "JOB list" sticker is located on the inside on the wire feed unit cover;
with compact machines it is on the right-hand power source cover.
Operating
element
JOB-
LIST
m/min
5.9.3

Welding current setting

The welding current is normally set using the "Wire speed" rotary dial.
Operating
element
m/min
5.9.4

Arcforce

Operating
element
DYN
- +
m/min
88
Action Result
Select JOB number input
1 x
comes on
Set the JOB number
The machine adopts the required setting after
approx. 3 seconds
Action Result
Welding current is set
Action Result
Select arcforcing welding parameter
LED for the button
Arcforcing setting for electrode types:
(Setting range -40 to 40)
Negative values
Values around zero Basic
Positive values
is on.
Rutile
Cellulose
Display
Displays
Setpoint setting
Display
