Design and function
MIG/MAG welding
5.7.1.3

MIG/MAG cored wire welding with a positive wire electrode

To connect the positive wire electrode, follow the procedure in the "MIG/MAG standard
welding" chapter!
5.7.2

Inserting the wire spool

Standard D300 pin reels can be used. Adapters (see accessories) are required when
using standardised basket coils (DIN 8559).
Item Symbol Description
1
2
• Loosen knurled nut from spool holder.
• Fix welding wire reel onto the spool holder so that the carrier pin locks into the spool bore.
• Fasten wire spool using knurled nut.
32
1
0
Carrier pin
For fixing the wire spool
Knurled nut
For fixing the wire spool
NOTE
NOTE

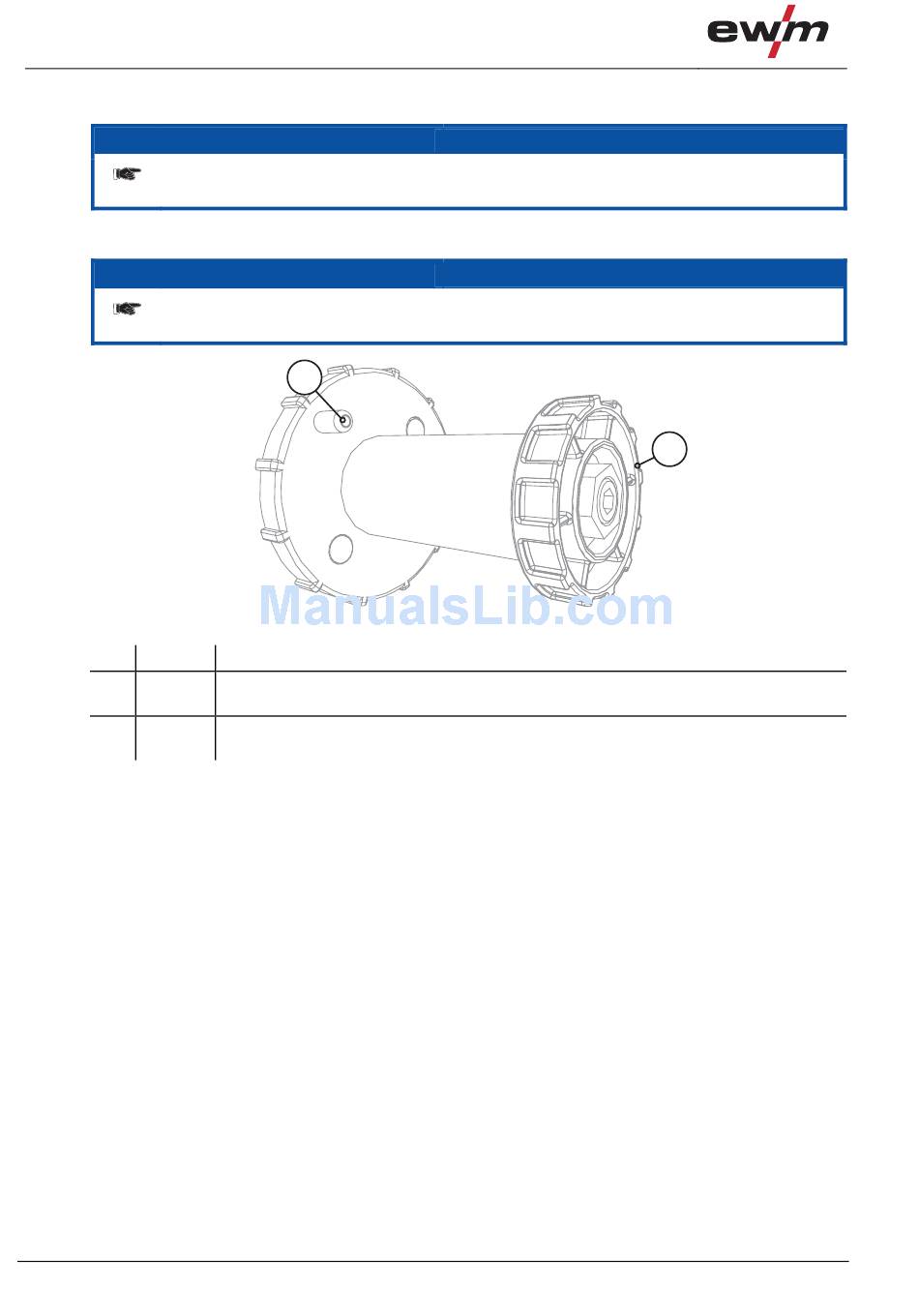

Figure 5-6
2
