Item
Symbol Description
1
2
3
4
m/min
5
6
DYN
7
8
9
10
099-005183-EW501
17.12.2010

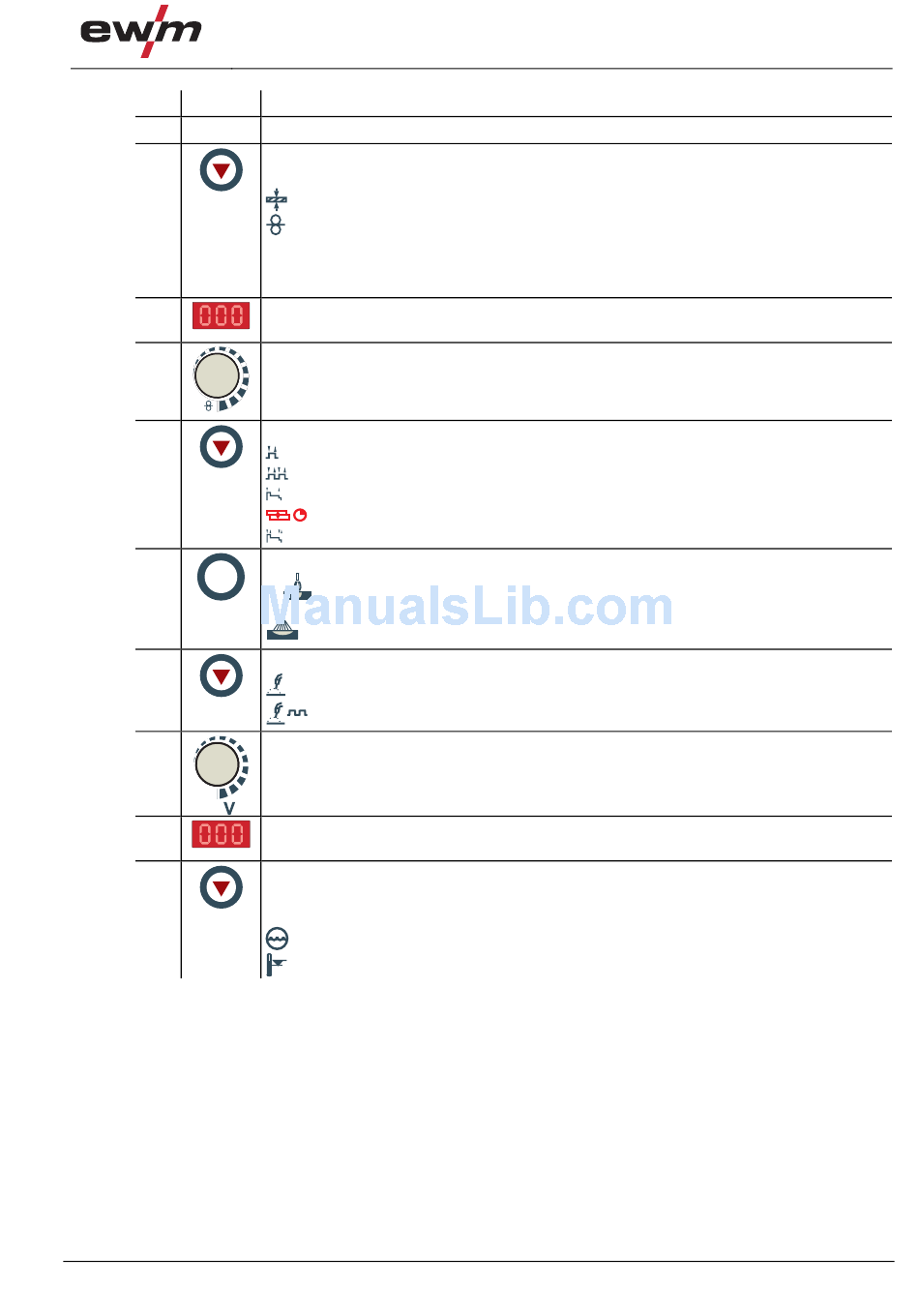

Machine description – quick overview
0
Lid (see chap. "Machine control – concealed operating elements")
Button, Parameter selection left
AMP
Welding current
Material thickness
Wire speed
After each completed welding process, the last parameter values used for the
HOLD
welding process are shown on the display in the main program; the signal
light is on
Display, left
Welding current, material thickness, wire speed, hold values
Welding parameter setting, rotary dial
For setting the welding performance, for selecting the JOB (welding task) and for
setting other welding parameters.
Select operating mode button
Non-latched
Latched
Signal light lights up in green: Special non-latched
Signal light lights up in red: MIG spots
Special latched
Dynamics/choke effect button
+
Arc harder and narrower
-
Arc softer and wider
Button, Select welding type
MIG/MAG standard welding
MIG/MAG pulse arc welding
Arc length correction/selection of welding program, rotary dial
•
Correction
of the
arc length from -9.9 V to +9.9 V.
•
Selection of welding programs 0 to 15 (not possible if accessory components, such
as program torches, are connected).
Display, right
Welding voltage, program number
Button, Parameter selection (right)
Welding voltage
VOLT
Program number
PROG
Coolant error
Temperature error
Machine control – Operating elements
21
