Operating Elements In The Machine - EWM Phoenix 335 Progress Puls FA KGE Operating Instructions Manual

Item Symbol Description
Super-
15
puls
16 Material
Gas
Wire
17
JOB-
LIST
18
19
4.2.2

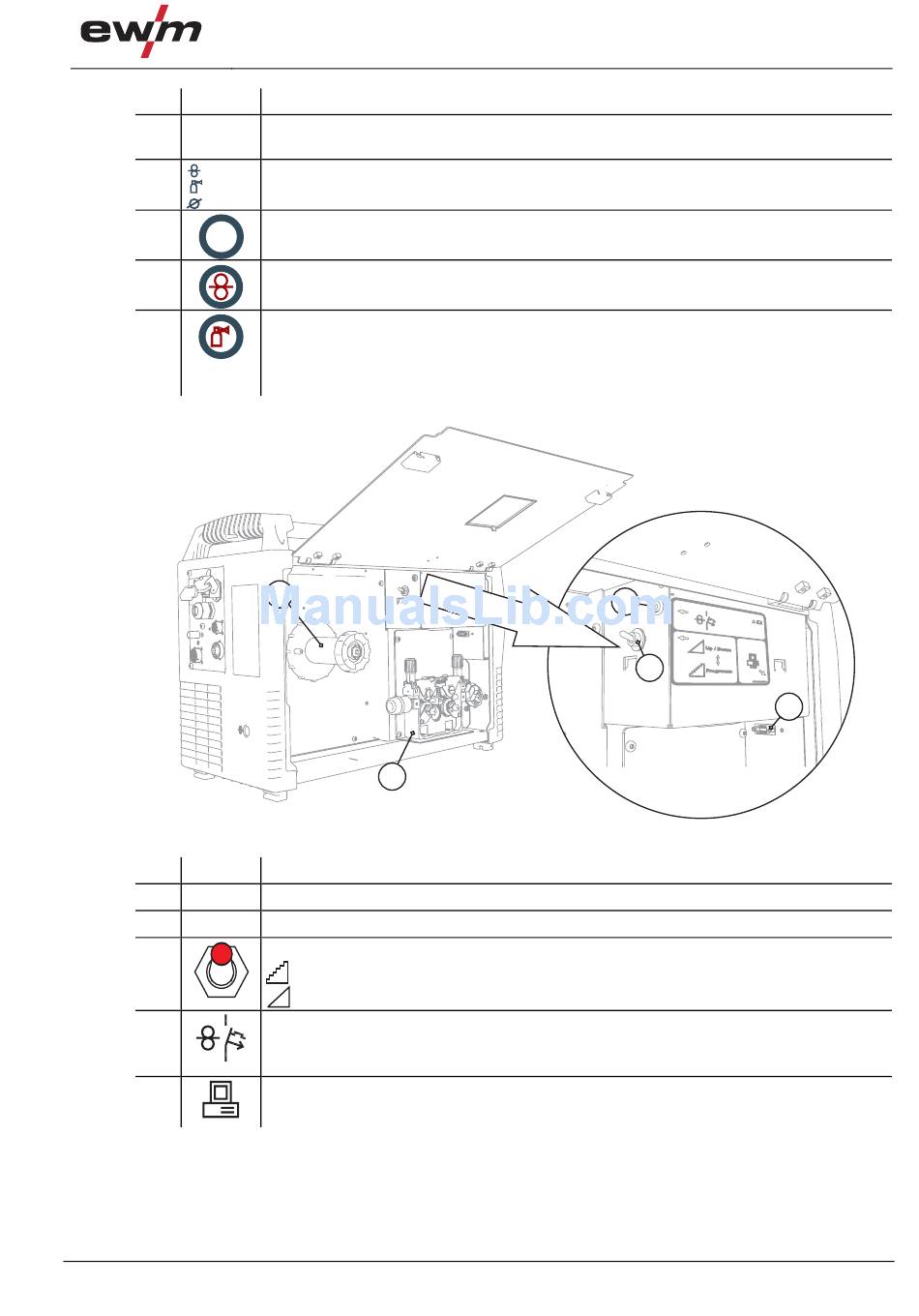

Operating elements in the machine

Item Symbol Description
1
2
3
4
42V/4A
5
COM
099-005183-EW501
17.12.2010
Machine description – quick overview
0
Signal lamp, super pulse function
Lights up when the super pulse function is active.
Signal light, JOB-List
Illuminates upon display or selection of the JOB number
Key button, JOB-List
Selection of the welding task (JOB) from the JOB list
Wire inching button
See also "Inching the Wire Electrode" chapter
Gas test / rinse button
• Gas test: For setting the shielding gas quantity
• Rinse: For rinsing longer tube packages
See also "Shielding Gas Supply" chapter
1
2
0
Wire spool retainer
Wire delivery unit
Welding torch function changeover switch (special welding torch required)
Programm
Changing over programs or JOBs
Infinite adjustment of welding performance.
Up / Down
Key button, automatic cutout
Wire feed motor supply voltage fuse
press to reset a triggered fuse
PC interface, serial (D-Sub connection socket, 9-pole)
Machine control – Operating elements
4
3
Figure 4-5
5
