The correct wire speed is not known and is to be determined.
•
Select the appropriate JOB (see "JOB list" sticker)
•
Switch to the material thickness display
•
Set the material thickness as appropriate (e.g. 5 mm)
•
Switch to the wire speed display
The resulting wire speed will be shown (e.g. 8.4 m/min).
5.7.8.2
Operating point setting using material thickness, welding current, wire speed
Given below is a description of the setting work via the wire speed parameters as an example of
operating point setting.
Operating
element
m/min
5.7.8.3
Arc length correction setting
The arc length can be corrected as follows.
Operating
element
5.7.8.4
Accessory components for operating point setting
The operating point can also be set with various accessory components such as
•
remote controls
•
special torches
•
PC software
•
robot and industrial bus interfaces (optional mechanised welding interface required – not possible for
all machines in this series!)
You will find an overview of accessory components in the "Accessories" chapter. See the operating
instructions for the machine in question for a more detailed description of the individual machines and
their functions.
099-005183-EW501
17.12.2010
Action
Result

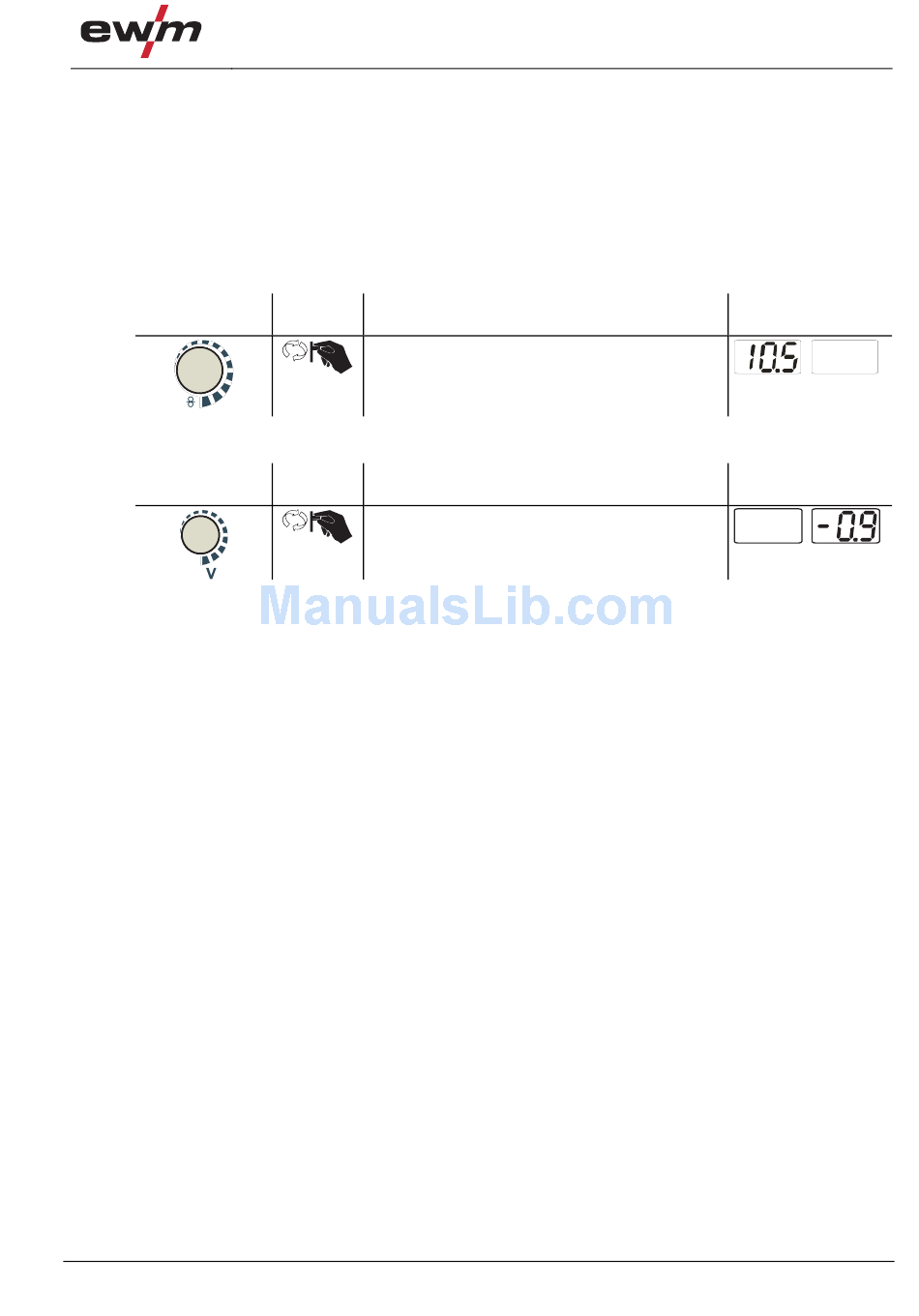

Increase or reduce welding performance via the
wire speed parameter.
Display example: 10.5 m/min
Action
Result
"Arc length correction" setting
(Display example: -0.9V,
setting range -9.9 V to +9.9 V)
Design and function
MIG/MAG welding
Display
Display
39
