Design and function

TIG welding

5.2.5

Standard MIG/MAG torch

The MIG welding torch trigger is essentially used to start and stop the welding process.
Operating elements
Torch trigger
5.2.6

MIG/MAG special-torches

5.2.6.1

Switching between Push/Pull and intermediate drive

No improper repairs and modifications!
To prevent injuries and damage to the machine, only competent personnel (authorised
service personnel) are allowed to repair or modify the machine.
Unauthorised manipulations will invalidate the warranty!
• Instruct competent personnel (authorised service personnel) to repair the machine.
Dangers resulting from failure to perform test after conversion!
Before reconnection, "Inspection and Testing during Operation" according to
IEC/BS EN 60974-4 "Arc welding systems – Inspection and Testing during Operation"
has to be performed!
• Perform test to IEC / DIN EN 60974-4!
The plugs are located directly on the M3.7X printed circuit board.
Plug Function
on X24 Operation with Push/Pull welding torch (factory setting)
on X23 Operation with intermediate drive
5.2.7

Welding task selection

For selection of the welding task and for general operation see the relevant Control operating instructions.
5.3 TIG welding
5.3.1

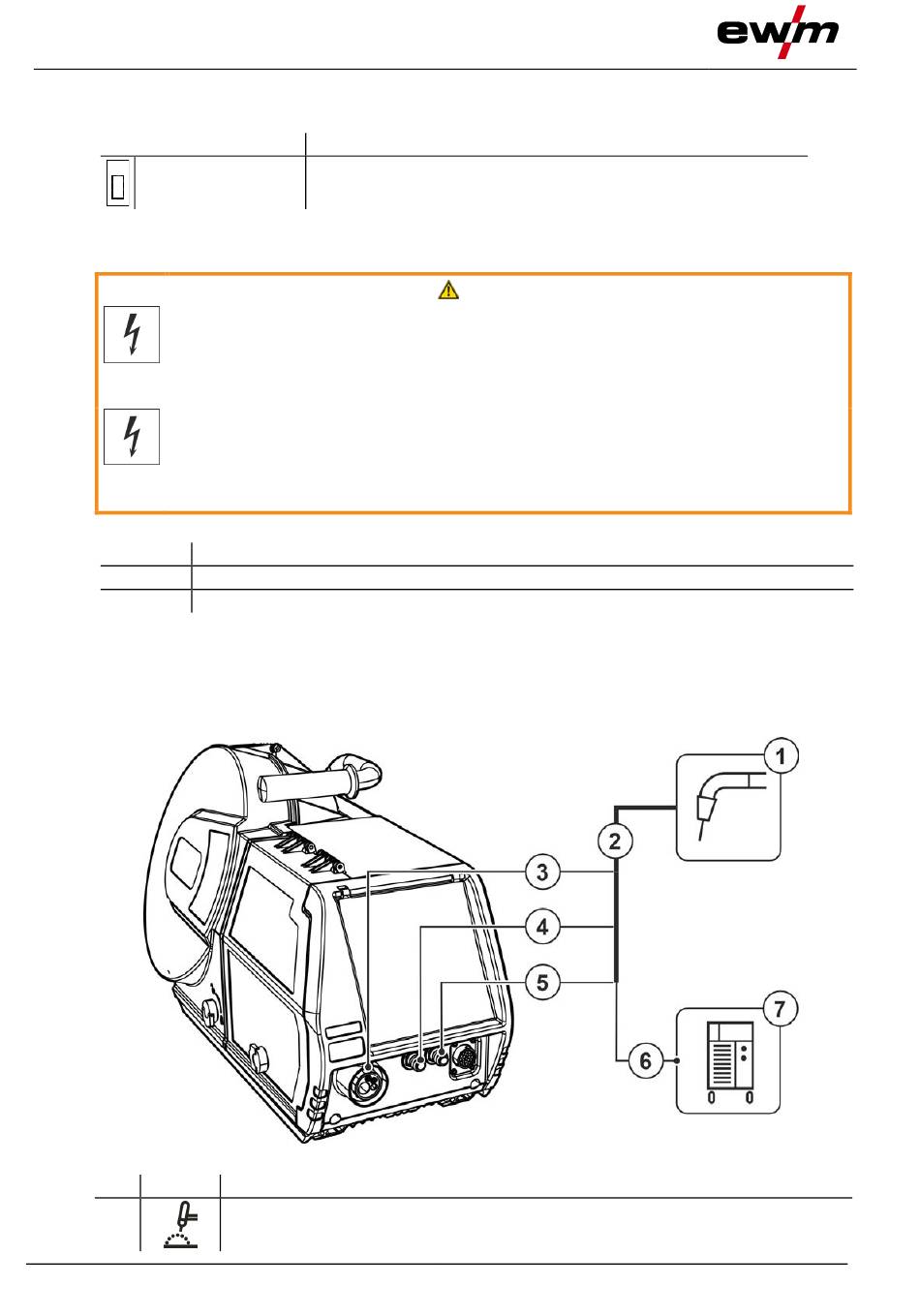

Welding torch connection

Item Symbol
1
34
Functions
• Start/stop welding
Description 0
Welding torch
WARNING
Figure 5-18
099-005613-EW501
05.12.2023
