Design and function
MIG/MAG welding
5.7.4

Inching the wire electrode

Risk of injury due to welding wire escaping from the welding torch!
The welding wire can escape from the welding torch at high speed and cause bodily
injury including injuries to the face and eyes!
• Never direct the welding torch towards your own body or towards other persons!
Risk of injury due to moving parts!
The wire feed units are equipped with moving parts, which can trap hands, hair,
clothing or tools and thus injure persons!
• Do not reach into rotating or moving parts or drive components!
• Keep casing covers closed during operation!
Depending on the design of the machine, the design of the wire feed may be the reverse
of that shown!
Item Symbol Description
1
2
3
4
5
6
7
8
9
10
34
9
10
0
Pressure units
Clamping units
Knurled nut
For fixing the wire spool
Counterpressure rollers
Wire holding nipple
Guide tube
Drive rollers
"Undetachable" knurled screws
Wire feed nipple with wire stabiliser
"Wire inlet nipple" fixing screw
CAUTION
1
2
7
8

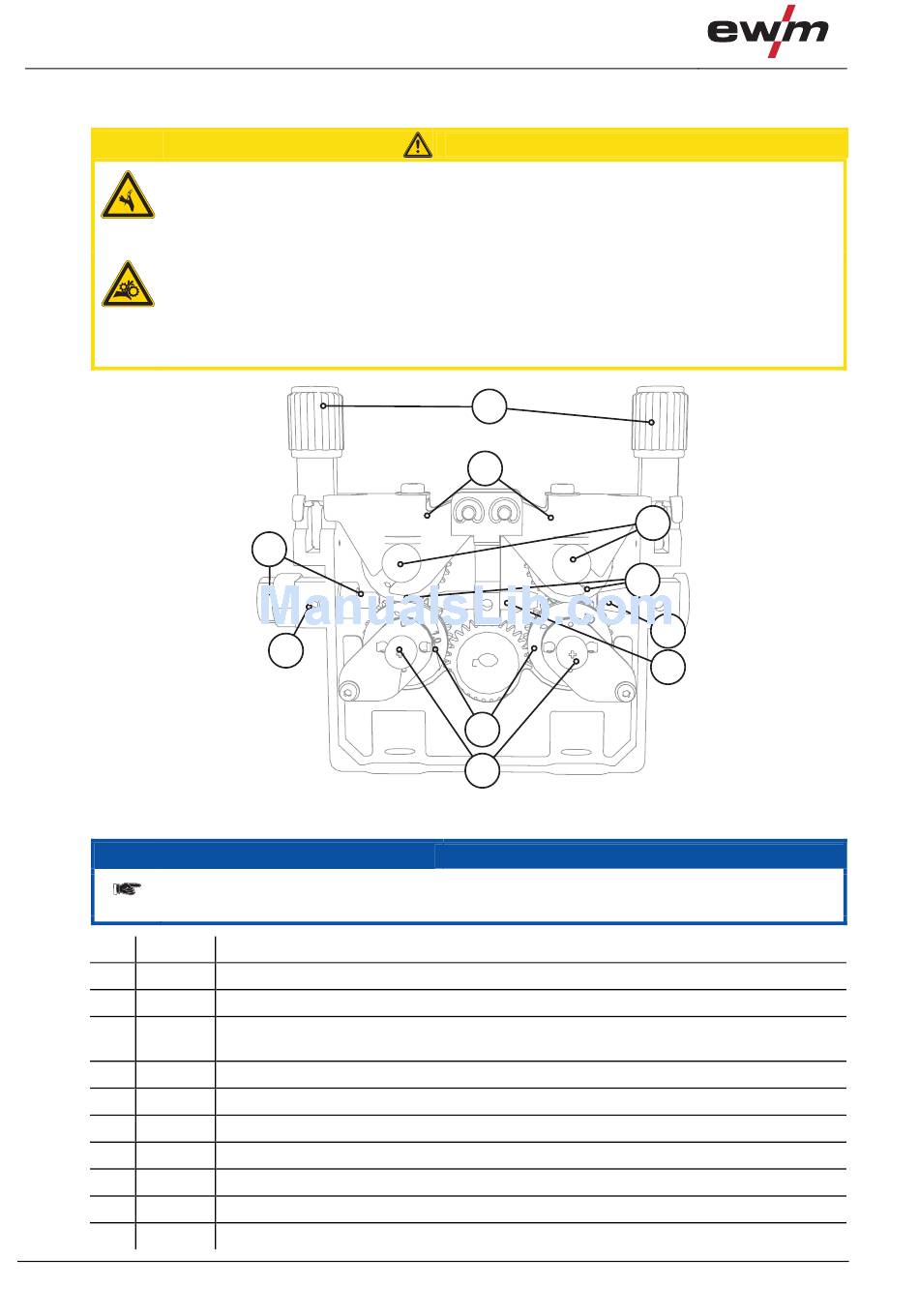

Figure 5-8
NOTE
3
4
5
6
099-005183-EW501
17.12.2010
