MIG/MAG welding
Creating user-defined JOB lists
A consecutive memory range where accessories such as the POWERCONTROL 2 torch can be
used to switch between JOBs will be created.
•
Set special parameter P12 to "2".
•
Set "Program or Up/Down function" changeover switch to "Up/Down" position.
•
Select an existing JOB which is closest to the required result.
•
Copy JOB to one or more target JOB numbers.
If any JOB parameters need to be changed, select the target JOBs in sequence and change the
parameters individually.
•
Set special parameter P13 to the lower limit and
•
Set special parameter P14 to the upper limit of the target JOBs.
•
Set "Program or Up/Down function" changeover switch to "Program" position.
JOBs can be changed over in the specified range using the accessory component.
Copying JOBs, "Copy to" function
The possible target range is between 129 - 169.
•
First configure special parameter P12 to P12 = 2 or P12 = 1!
Operating
element
JOB-
LIST
m/min
-
JOB-
LIST
m/min
JOB-
LIST
By repeating the last two steps, the same source JOB can be copied to multiple target JOBs.
If the control does not register any user activity for longer than 5 seconds, the parameter display is shown
once more and the copy process is complete.
Lower and upper limits of the remote JOB changeover process (P13, P14)
The highest and lowest JOB numbers which can be selected using accessory components, such as the
PowerControl 2 torch.
Avoids an accidental changeover into undesirable or undefined JOBs.
Hold function (P15)
Hold function active (P15 = 1)
•
Mean values for the last main program parameters used for welding are displayed.
Hold function not active (P15 = 0)
•
Setpoint values for the main program parameters are displayed.
76

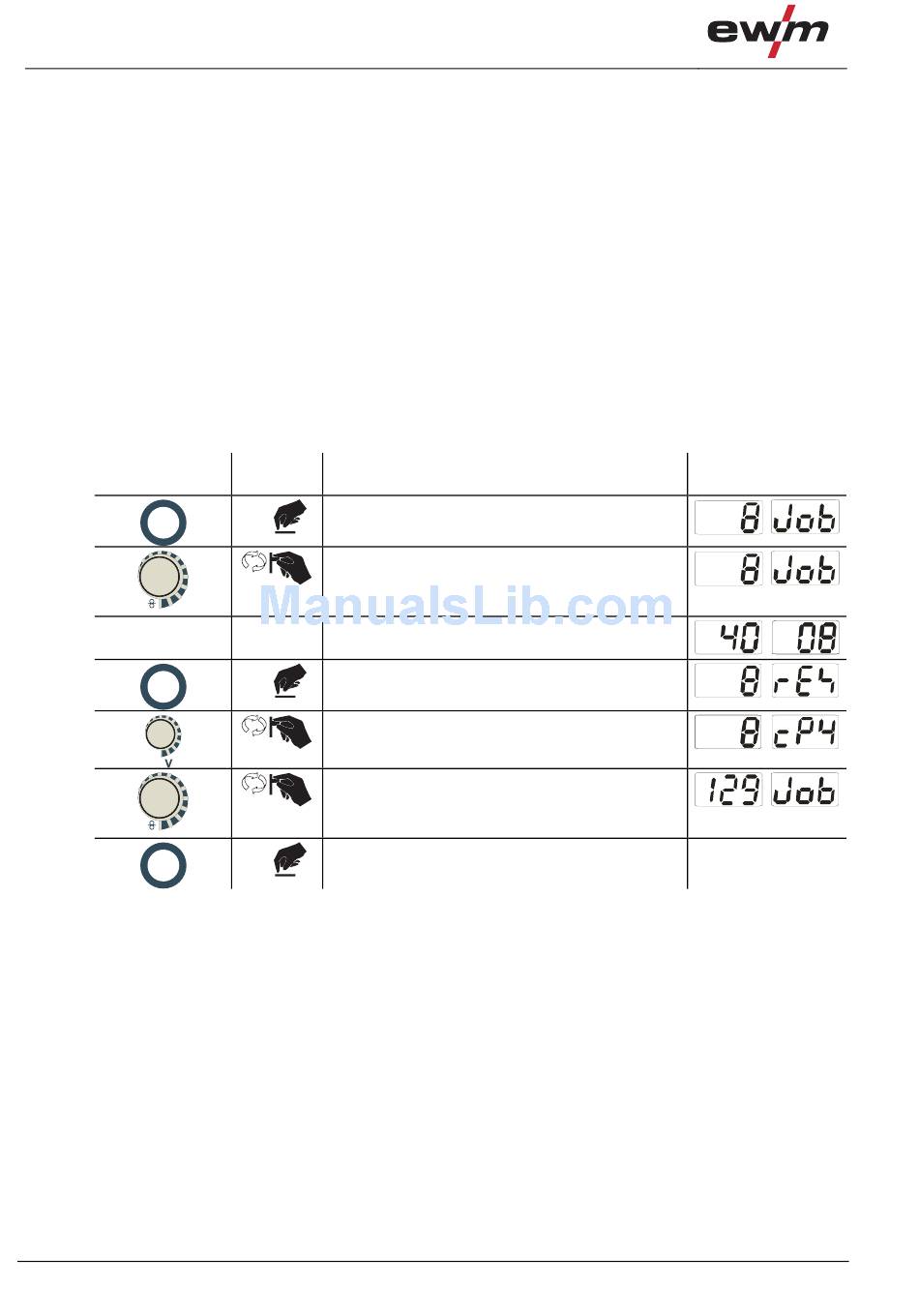

Action
Result
Select JOB list
1 x
Select the source JOB
Wait for around 3 seconds until the JOB has
-
been transferred
Keep button pressed for around 5s
1 x
Setting to copy function ("Copy to")
Select JOB number of the target JOB
Save
1 x
The JOB is copied to the new position
