Design and function
MIG/MAG welding
5.7.1.1

MIG/MAG standard welding

1
Item Symbol Description
1
2
3
4
5
6
7
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Insert the plug on the workpiece lead into the "-" welding current connection socket and lock.
• Welding current lead, insert polarity selection into the "+" welding current connection socket and lock.
Where applicable:
Only MIG/MAG torches with special functions (additional control lead):
• Insert the torch control lead plug into the 19-pole connection socket and lock in place.
30
2
0
Welding torch
Welding torch hose package
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
19-pole connection socket (analogue)
Connection for welding torch control lead
Welding current cable, polarity selection
Welding current to central connection/torch. Permits polarity selection for MIG/MAG
welding.
• Standard applications:
"-" welding current connection socket
• MIG/MAG welding:
Workpiece
6
3
4

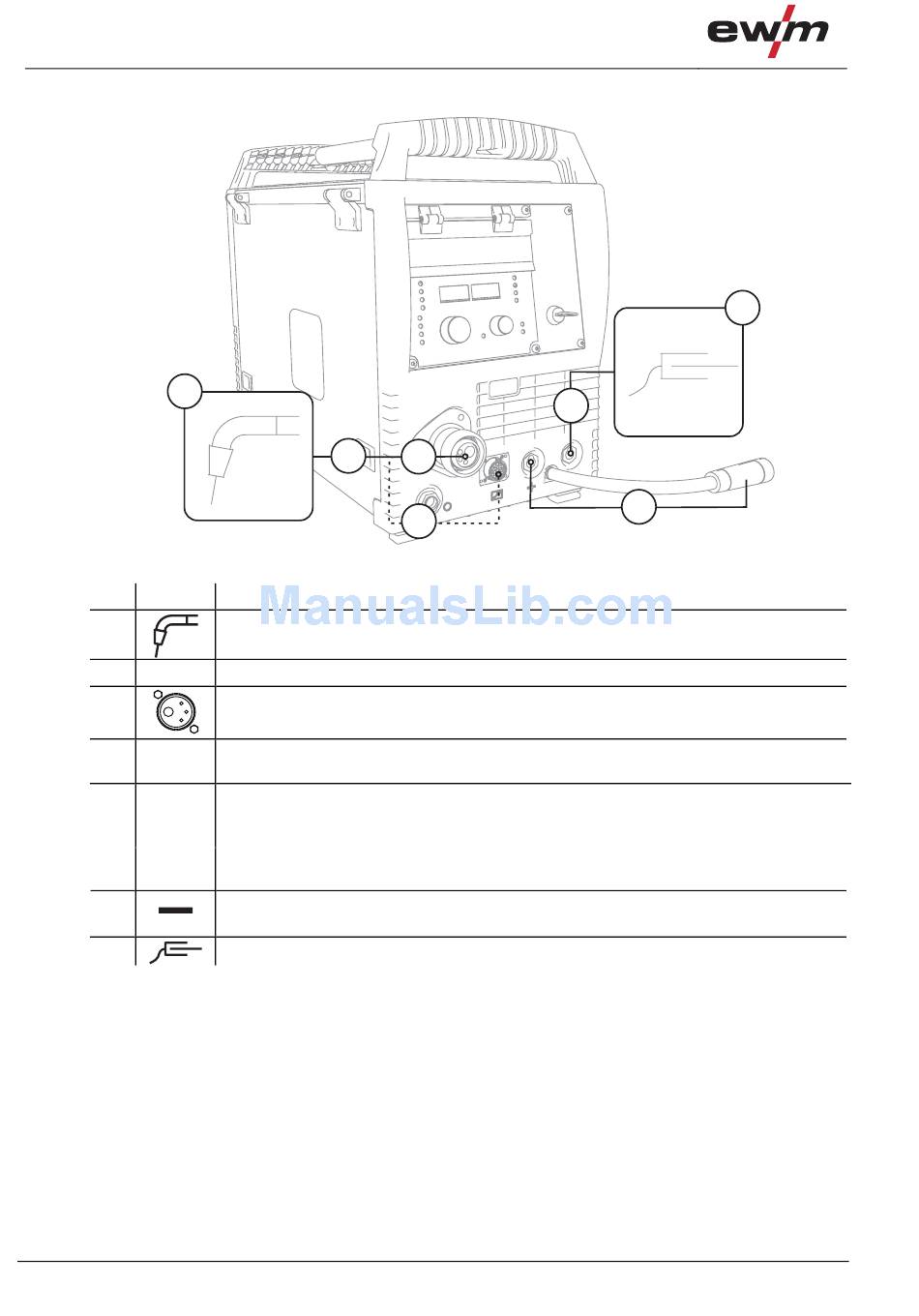

Figure 5-4
Connection for "+" welding current connection
socket
Workpiece connection
7
5
