Design and function

Cooling module connection

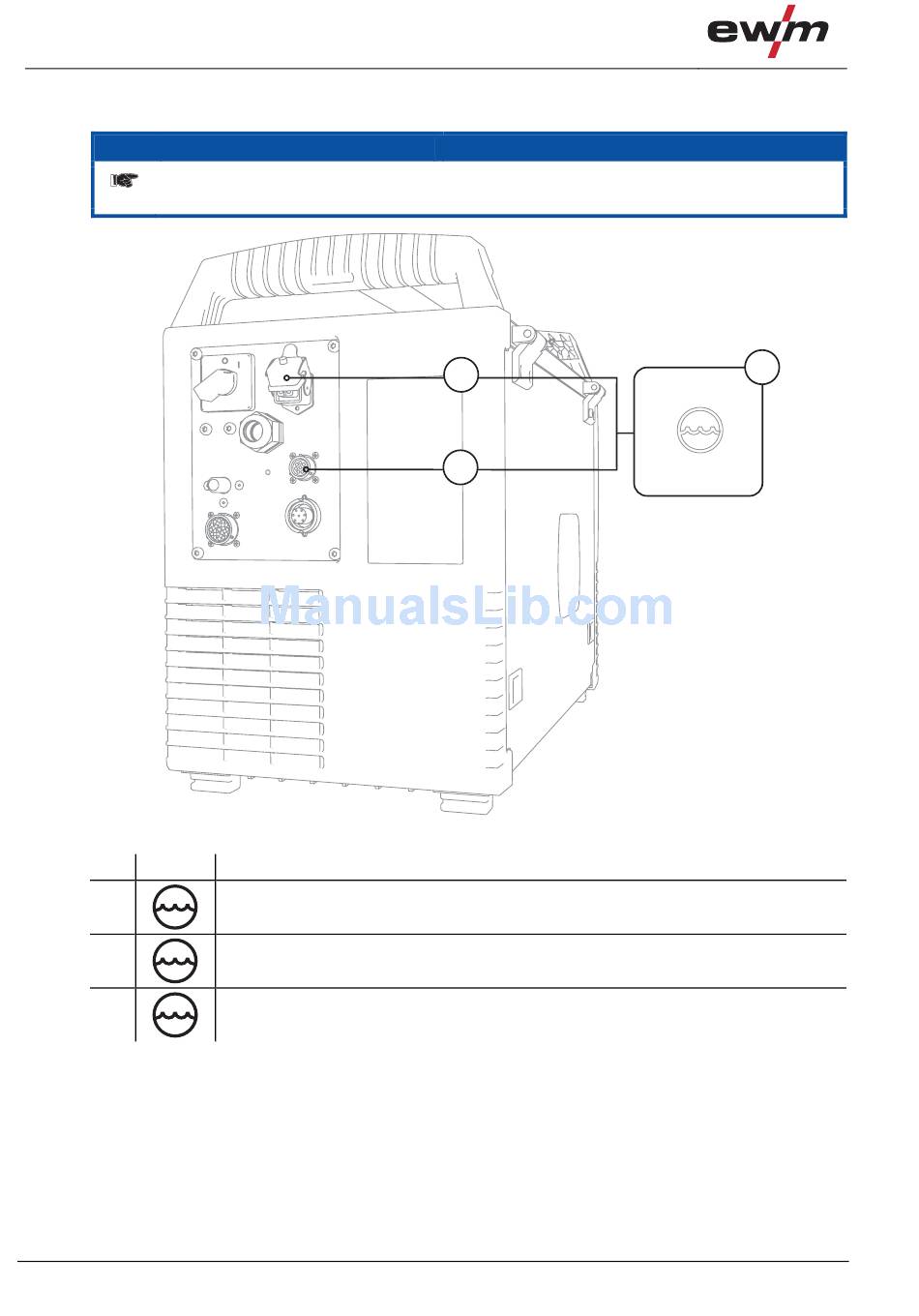

5.6 Cooling module connection
Observe the fitting and connection instructions given in the relevant operating
instructions for the cooling unit.
Item Symbol Description
1
2
3
• Insert and lock the 8-pole control lead plug on the cooling unit into the 8-pole connection socket on the
welding machine.
• Insert and lock the 4-pole supply plug on the cooling unit into the 4-pole connection socket on the
welding machine.
28
0
4-pole connection socket
Cooling unit voltage supply
8-pole connection socket
Cooling unit control lead
Cooling module
NOTE
1
2
Figure 5-3
3
