Specifying Your Genlock Settings - Matrox MXO2 Installation And User Manual

54
Under Setup Level , select the pedestal setting that you want for your NTSC
4
analog video from the Analog NTSC pedestal menu:
$
$
¦ Note
can switch the pedestal setting as needed before capturing or recording to tape.

Specifying your genlock settings

¦ Note
You can select the source to which you want to genlock all devices connected to
your MXO2 system, as well as adjust the timing offset for all MXO2 video
outputs.

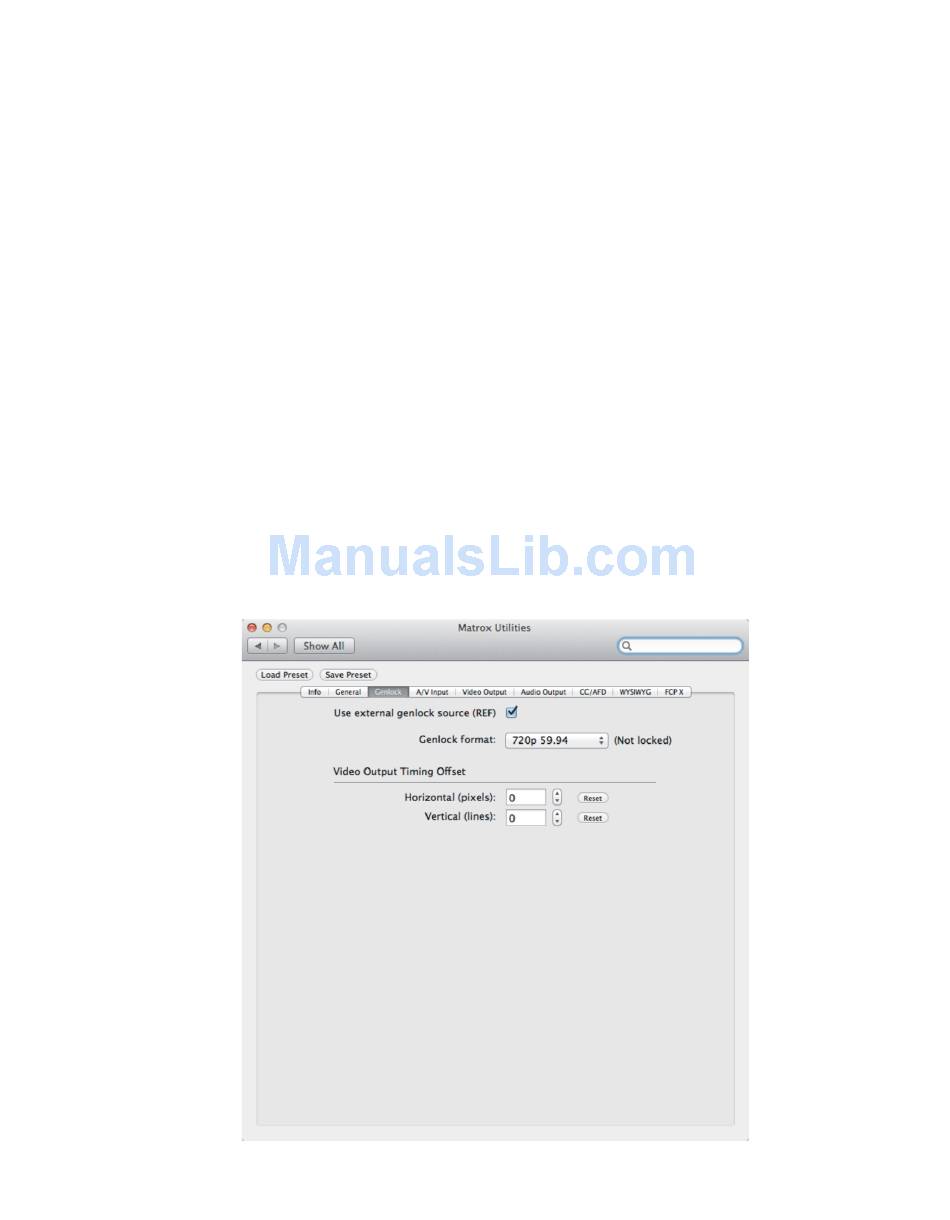

1 From the Apple menu, click System Preferences , and then click the
Matrox Utilities
Click Genlock .
2
Chapter 7, Configuring Your MXO2 System
7.5 IRE Applies the standard NTSC pedestal of 7.5 IRE.
Applies a pedestal of 0 IRE. You should select this option when
0 IRE
working with a commercial DV device that uses the Japanese analog
NTSC pedestal of 0 IRE. For example, if the video appears too bright
when you play back DV clips on your NTSC monitor, you can change the
pedestal to 0 IRE to output your DV clips at the correct brightness.
If your device has a different NTSC pedestal for input and output, you
This section does not apply to Matrox MXO2 Mini.
icon.
