163

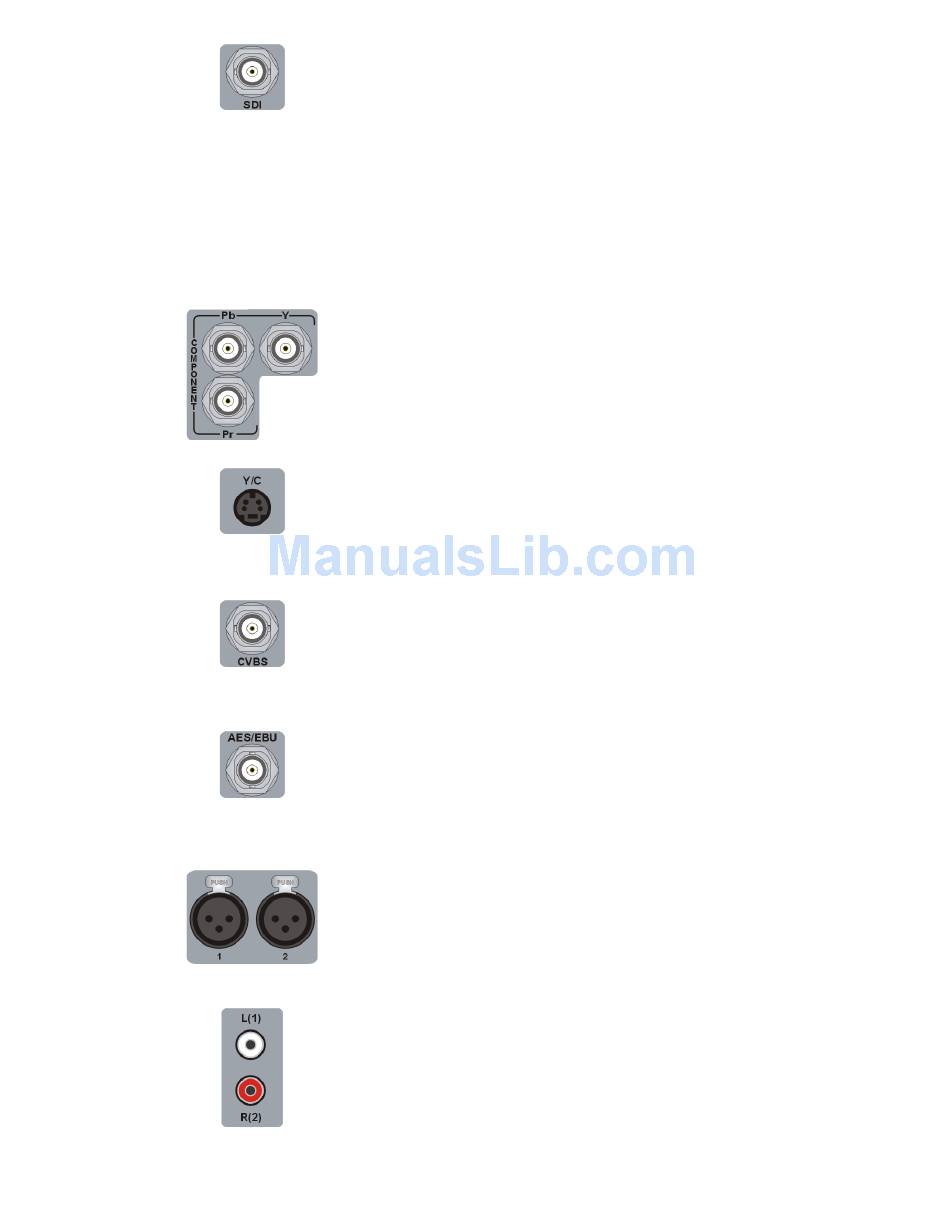

SDI Provides an input for use with a digital SDI device. This
input supports HD-SDI and SD-SDI video, and up to 16
channels of embedded audio. You can also use this input to
capture closed captioning and AFD data (see "Matrox 4VANC
capture and playback" on page 66). Connect an SDI
video/audio cable from a camera, VTR, or other video input
source.
Component video (Y, Pb, Pr) Provide inputs for use with an
analog component device, and support HD and SD video.
Connect component Y, Pb, Pr video cables from a camera,
VTR, or other video input source.
Y/C (S-Video) Provides an input for use with an analog
S-Video device (SD only). Connect an S-Video cable from a
camera, VTR, or other video input source.
Composite video (CVBS) Allows you to input SD video
from an analog NTSC or PAL device. Connect a composite
video cable from a camera, VTR, or other video input source.
AES/EBU digital audio Allows you to input stereo digital
audio. Connect a coaxial BNC audio cable from a camera,
VTR, audio mixer, or other audio input source.
¦ Note Not available on MXO2 LE.
Analog audio (balanced) Allows you to input balanced
stereo analog audio. Connect XLR cables from a camera, VTR,
audio mixer, or other audio input source.
Analog audio (unbalanced) Allows you to input unbalanced
stereo analog audio. Connect RCA cables from a camera, VTR,
audio mixer, or other audio input source.
Inputs
