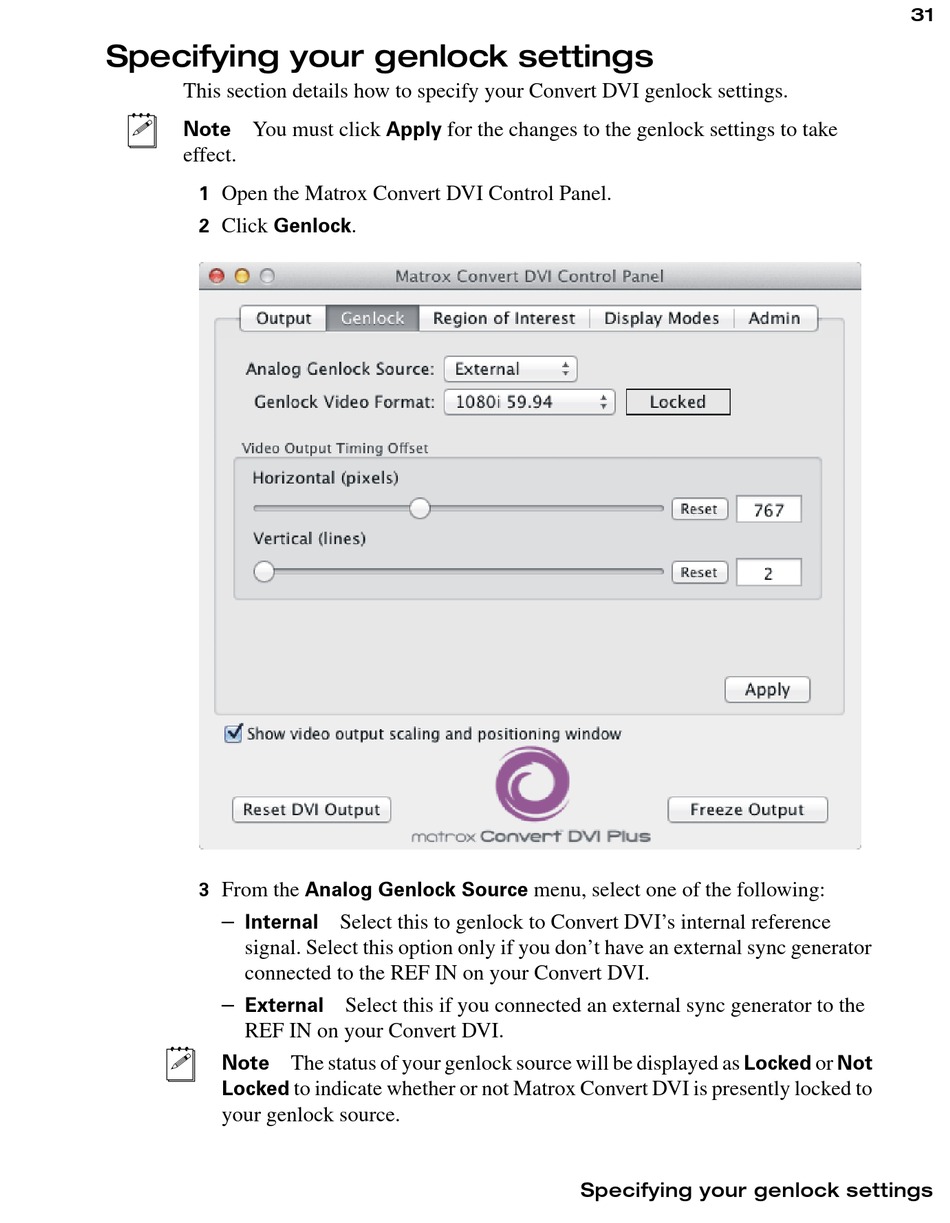

Specifying your genlock settings

This section details how to specify your Convert DVI genlock settings.
¦ Note You must click Apply for the changes to the genlock settings to take
effect.
Open the Matrox Convert DVI Control Panel.
1
Click Genlock .
2
From the Analog Genlock Source menu, select one of the following:
3
Internal
$
signal. Select this option only if you don't have an external sync generator
connected to the REF IN on your Convert DVI.
External
$
REF IN on your Convert DVI.
¦ Note The status of your genlock source will be displayed as Locked or Not
Locked
your genlock source.
Select this to genlock to Convert DVI's internal reference
Select this if you connected an external sync generator to the
to indicate whether or not Matrox Convert DVI is presently locked to
