• Total power consumption

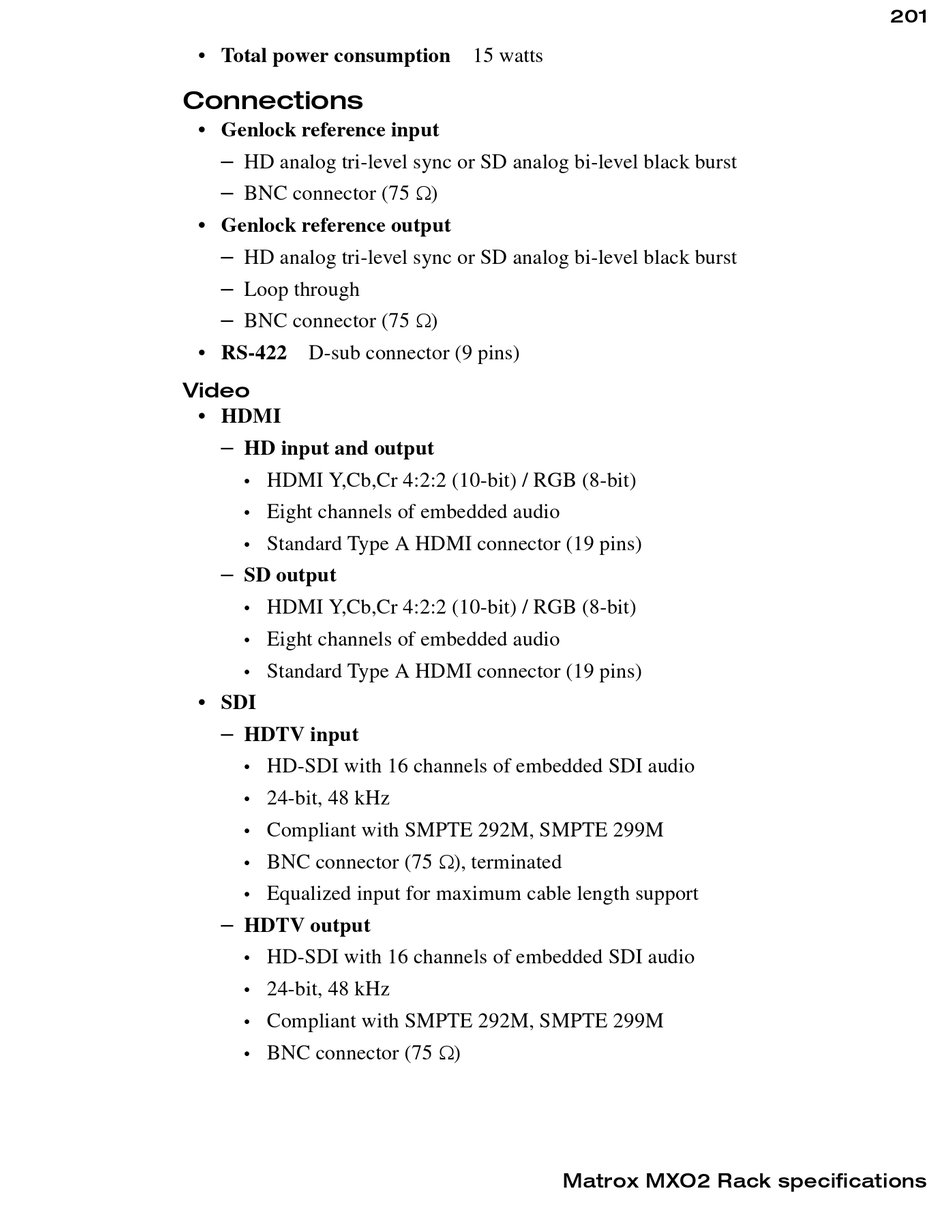

Connections

• Genlock reference input
HD analog tri-level sync or SD analog bi-level black burst
$
BNC connector (75  )
$
• Genlock reference output
HD analog tri-level sync or SD analog bi-level black burst
$
Loop through
$
BNC connector (75  )
$
• RS-422 D-sub connector (9 pins)
Video
• HDMI
HD input and output
$
HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
•
Eight channels of embedded audio
•
Standard Type A HDMI connector (19 pins)
•
SD output
$
HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
•
Eight channels of embedded audio
•
Standard Type A HDMI connector (19 pins)
•
• SDI
HDTV input
$
HD-SDI with 16 channels of embedded SDI audio
•
24-bit, 48 kHz
•
Compliant with SMPTE 292M, SMPTE 299M
•
BNC connector (75  ), terminated
•
Equalized input for maximum cable length support
•
HDTV output
$
HD-SDI with 16 channels of embedded SDI audio
•
24-bit, 48 kHz
•
Compliant with SMPTE 292M, SMPTE 299M
•
BNC connector (75  )
•
15 watts
Matrox MXO2 Rack specifications
201
