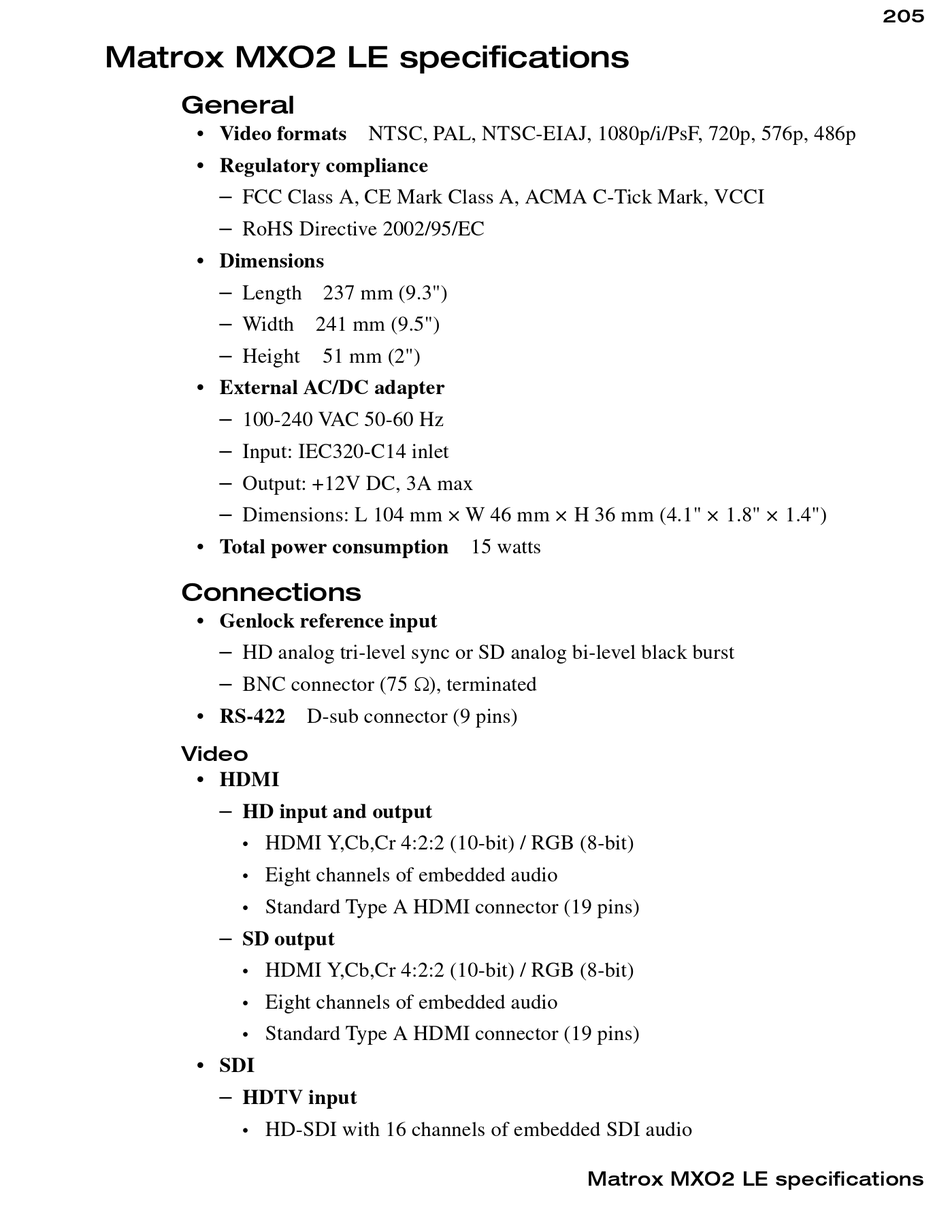

Matrox MXO2 LE specifications

General

• Video formats NTSC, PAL, NTSC-EIAJ, 1080p/i/PsF, 720p, 576p, 486p
• Regulatory compliance
FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
$
RoHS Directive 2002/95/EC
$
• Dimensions
Length 237 mm (9.3")
$
Width 241 mm (9.5")
$
Height
$
• External AC/DC adapter
100-240 VAC 50-60 Hz
$
Input: IEC320-C14 inlet
$
Output: +12V DC, 3A max
$
Dimensions: L 104 mm × W 46 mm × H 36 mm (4.1" × 1.8" × 1.4")
$
• Total power consumption

Connections

• Genlock reference input
HD analog tri-level sync or SD analog bi-level black burst
$
BNC connector (75  ),  terminated
$
• RS-422 D-sub connector (9 pins)
Video
• HDMI
HD input and output
$
HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
•
Eight channels of embedded audio
•
Standard Type A HDMI connector (19 pins)
•
SD output
$
HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
•
Eight channels of embedded audio
•
Standard Type A HDMI connector (19 pins)
•
• SDI
HDTV input
$
HD-SDI with 16 channels of embedded SDI audio
•
51 mm (2")
15 watts
