Using the Matrox PCIe host adapters

For MXO2 Rack to be detected on a Mac desktop system, power must be
supplied to MXO2 Rack (see
be connected to your computer before starting up your system.
¡ Important Do not disconnect the Matrox PCIe cable from the adapter, or
MXO2 Rack, when your Mac system is running. To safely remove the Matrox
PCIe host Expresscard/34 adapter, see
ExpressCard/34 adapter"
MXO2 Rack
PCIe cable
"Powering MXO2 Rack"
on page 8.
²Caution To ensure functionality and avoid
damaging the PCIe cable or host connector,
you must connect the PCIe cable as shown in
"Ensuring proper PCIe cable connection"
page 25.
Matrox PCIe
host adapter
OR

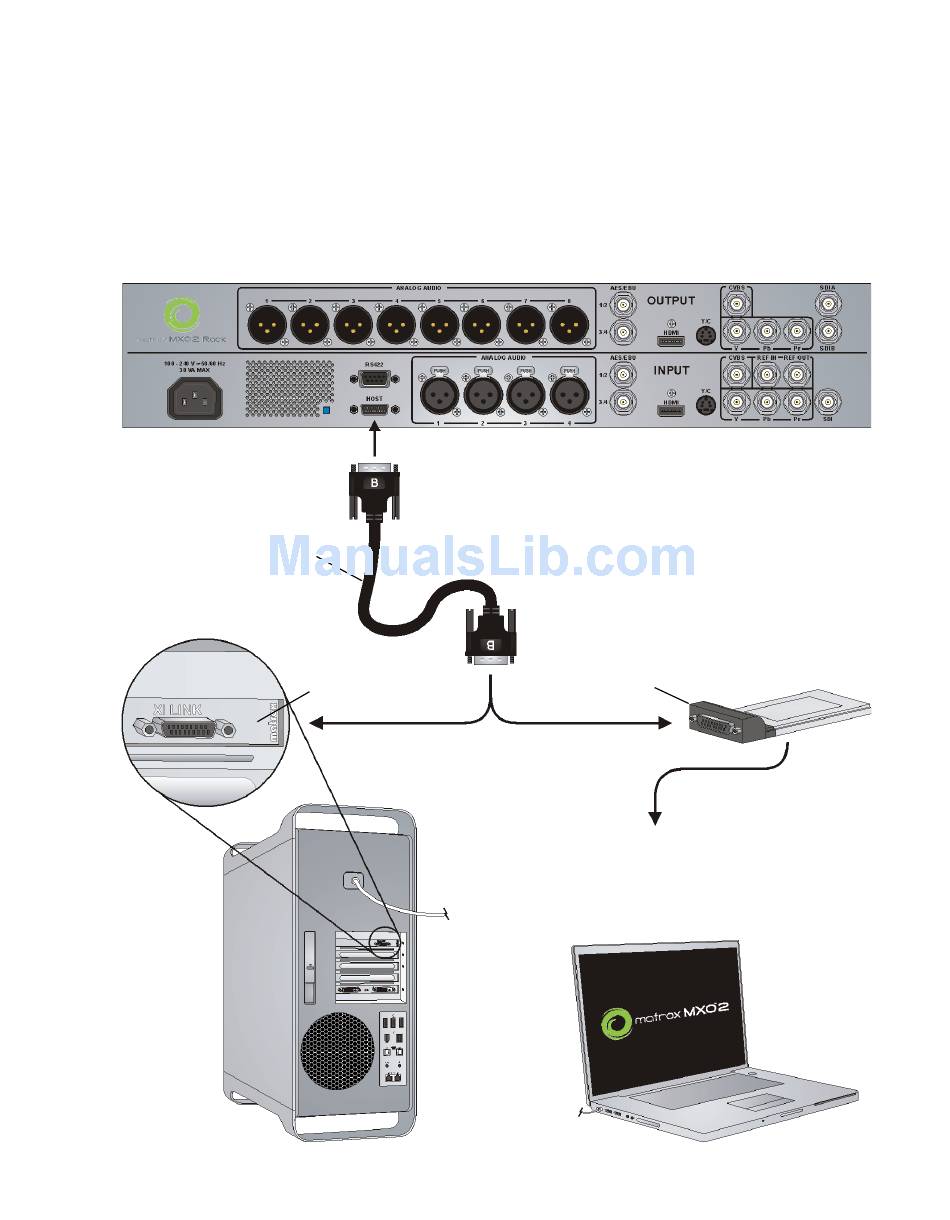

Connecting MXO2 Rack to your Mac system
on page 24), and it must
"Removing your PCIe host
Matrox PCIe host
ExpressCard/34
adapter
To your laptop's ExpressCard/34
slot (see "Installing your PCIe host
ExpressCard/34 adapter (for
laptops)" on page 7).
27
on
