Matrox MXO2 Installation And User Manual page 85

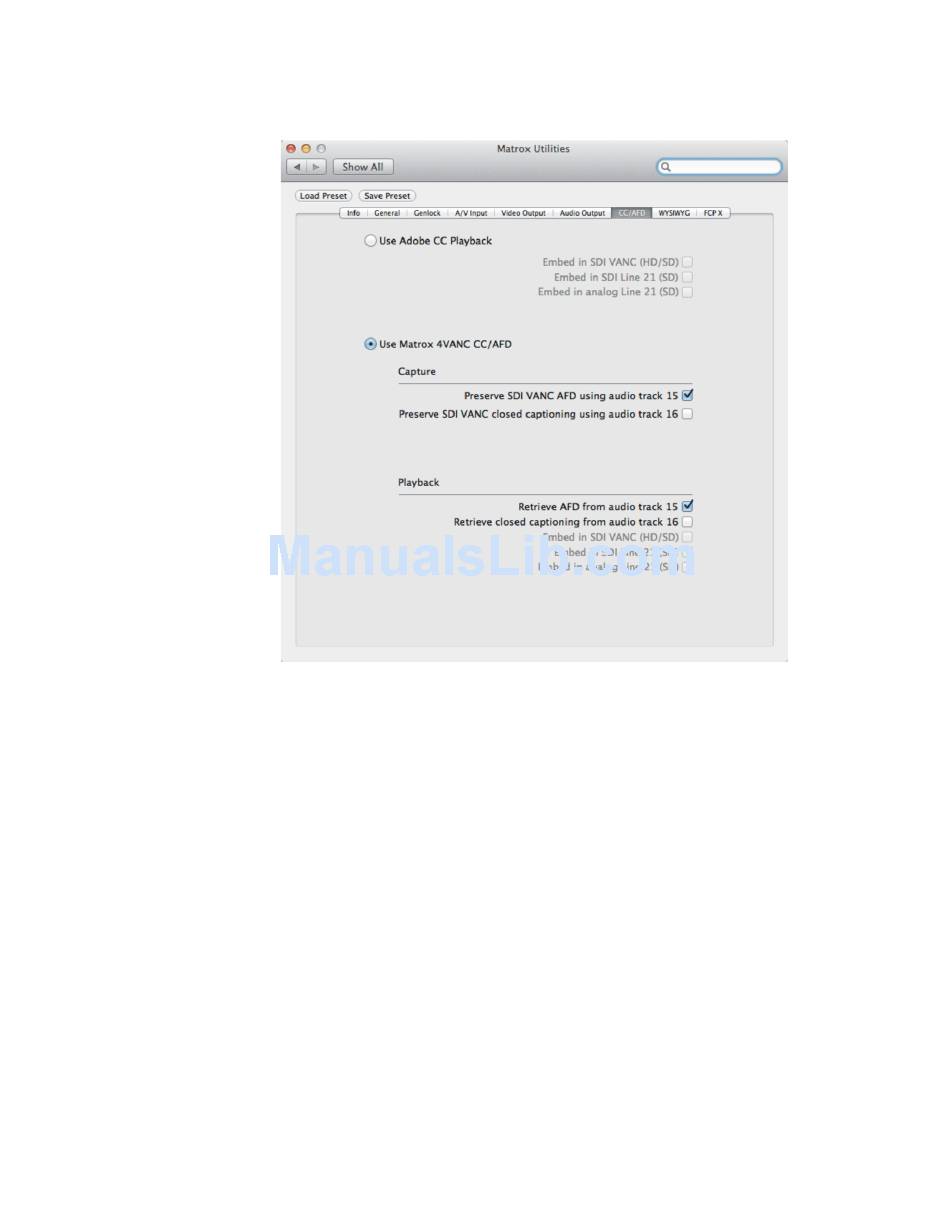

From the Apple menu, click System Preferences , and then click the
1
Matrox Utilities
Click CC/AFD .
2
Select Use Matrox 4VANC CC/AFD .
3
Under Capture , select Preserve SDI VANC AFD using audio track 15 to
4
capture the AFD data from your source video's VANC using SDI audio track
15.
¦ Note
To capture AFD data, you must select SDI as your video input source
(see "Specifying your A/V input settings"
to your capture source and not an external genlock source (see
your genlock settings"
Under Playback , select Retrieve AFD from audio track 15 to retrieve the
5
Matrox 4VANC AFD data from audio track 15 in your video application,
and play back the video with the AFD data restored to the VANC using
MXO2's SDI output.
Specify the appropriate settings in your video application. For information
6
on how to set your video application settings to capture, play back, and
export Matrox 4VANC AFD, see
Supported Programs."
icon.
on page 54).
Chapter 9, "Using Matrox MXO2 with
on page 55). You must also genlock
Closed captioning and AFD
