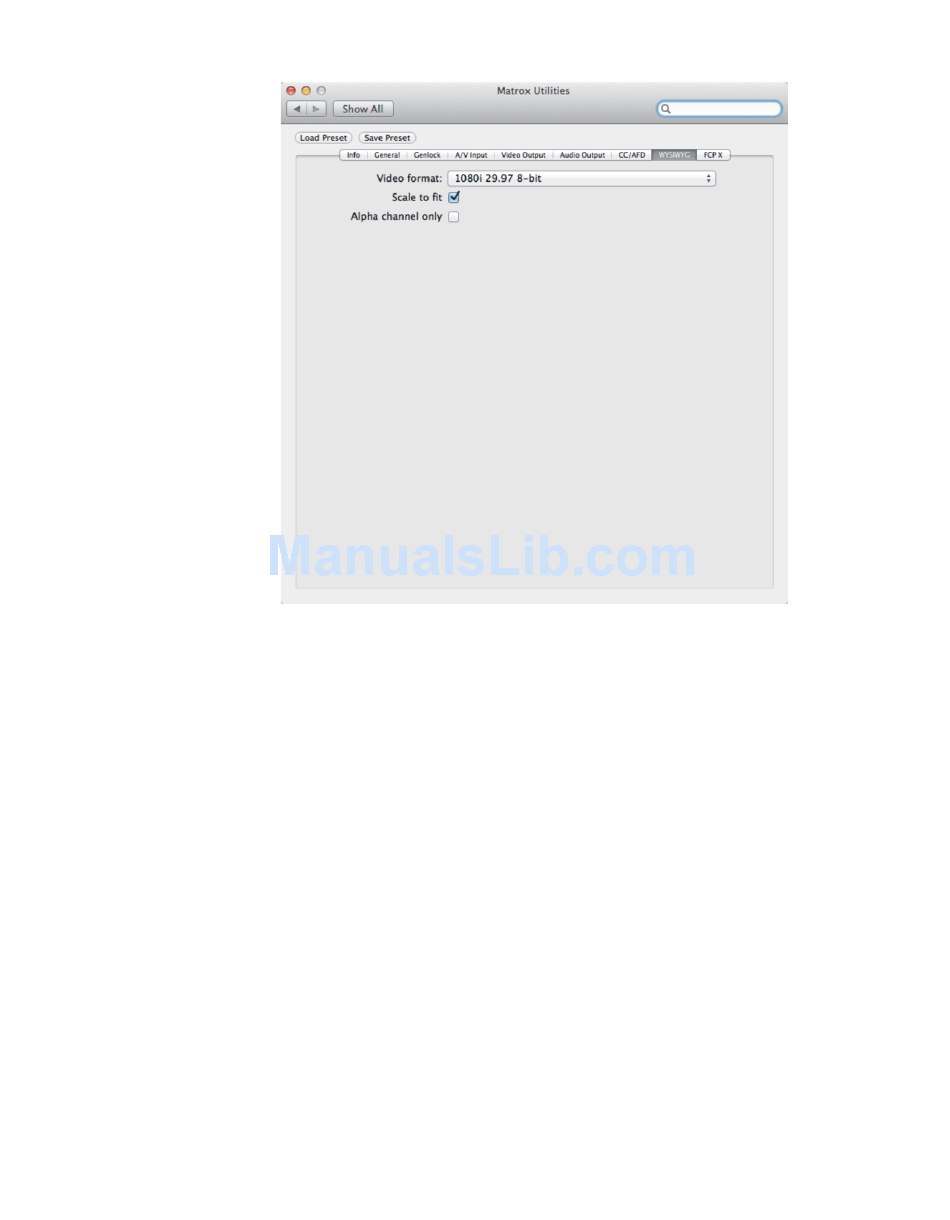

Click WYSIWYG .
2
From the Video format menu, select the format that matches your
3
composition/image, or the format that is closest in resolution and aspect
ratio. The video format at which your composition/image is output from
MXO2 is set in the Video Output pane (see step 6).
¦ Note To view a 1:1 representation of your composition/image on an HDMI
monitor that does not support 1:1 pixel mapping, select your monitor's native
resolution as the video format, and disable Scale to fit .
If the selected video format does not match your composition/image, select
4
Scale to fit to upscale/downscale your project to fit the selected video
format. Clear this option to display your composition/image at its exact
resolution (1:1) within the selected video format.
Select Alpha channel only to output only the alpha channel from your
5
composition/image.
Specify the Video Output settings in the Matrox preferences window as
6
described in "Specifying your video output settings"
¦ Note
To output your composition/image at the video format selected in step
3, select Follow Application from the Set main channel format to list, and
make sure that the MXO2 output that you will use for monitoring is set to
output the Main channel under Channel Selection .
Specifying your Matrox WYSIWYG settings
on page 58.
71
