Typical Matrox MXO2 Rack connections
In the following typical connection examples, we've connected a monitor to view
the signal that will be recorded, and separate source and record decks. You may,
however, use the same deck as both your source and record device by making the
input and output connections to a single deck. For details on the Matrox MXO2
Rack connectors, see

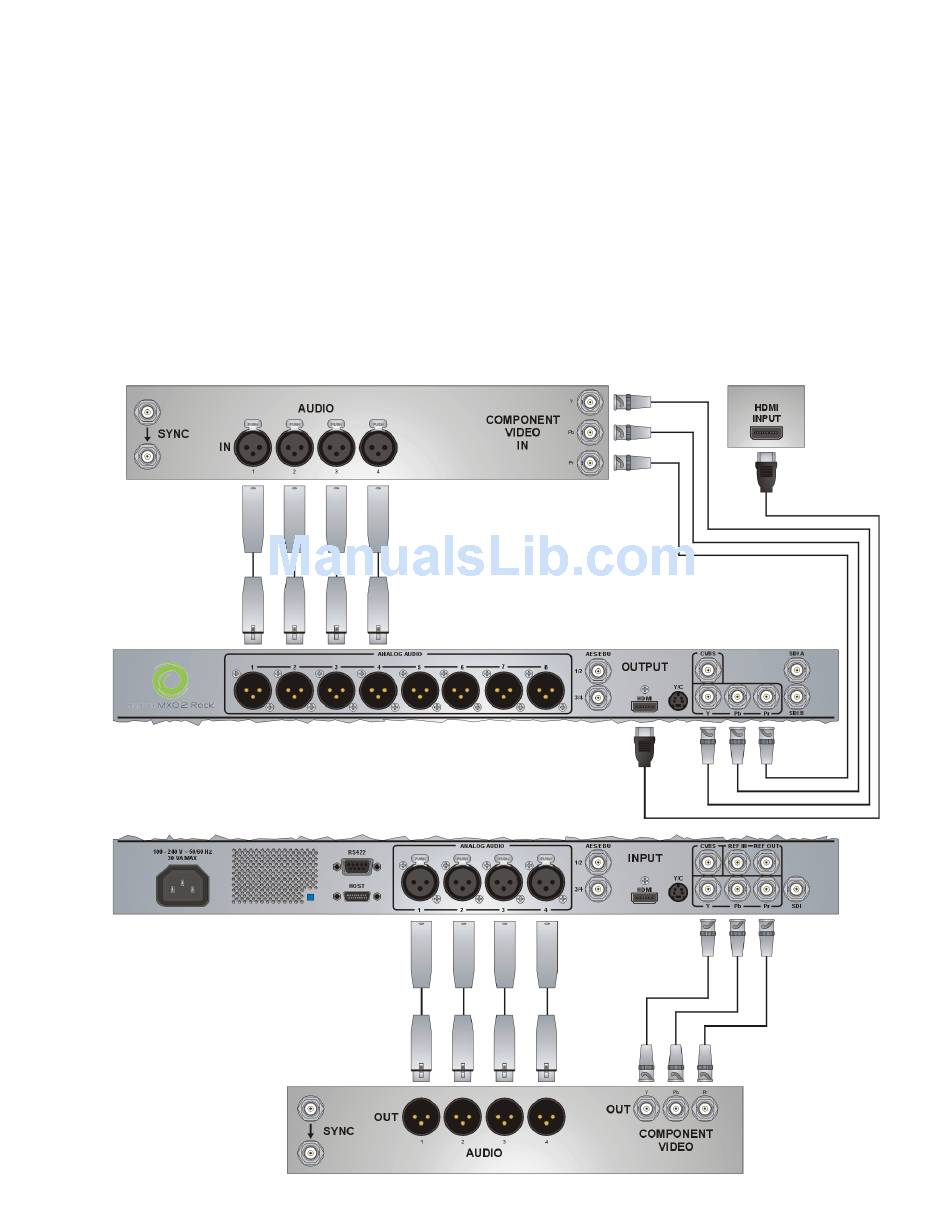

Analog component video connections
In this illustration, we're using analog component connectors for video, XLR
connectors for audio, and an HDMI connector for video monitoring. The video is
genlocked using MXO2's internal genlock.
MXO2 Rack (partial view)
MXO2 Rack (partial view)
Source
(Deck 1)
Appendix B, "Matrox MXO2
Recorder (Deck 2)
Connectors."
Typical Matrox MXO2 Rack connections
29
HDMI
monitor
