In Premiere Pro, specify your playback settings as detailed in
a
your playback settings"

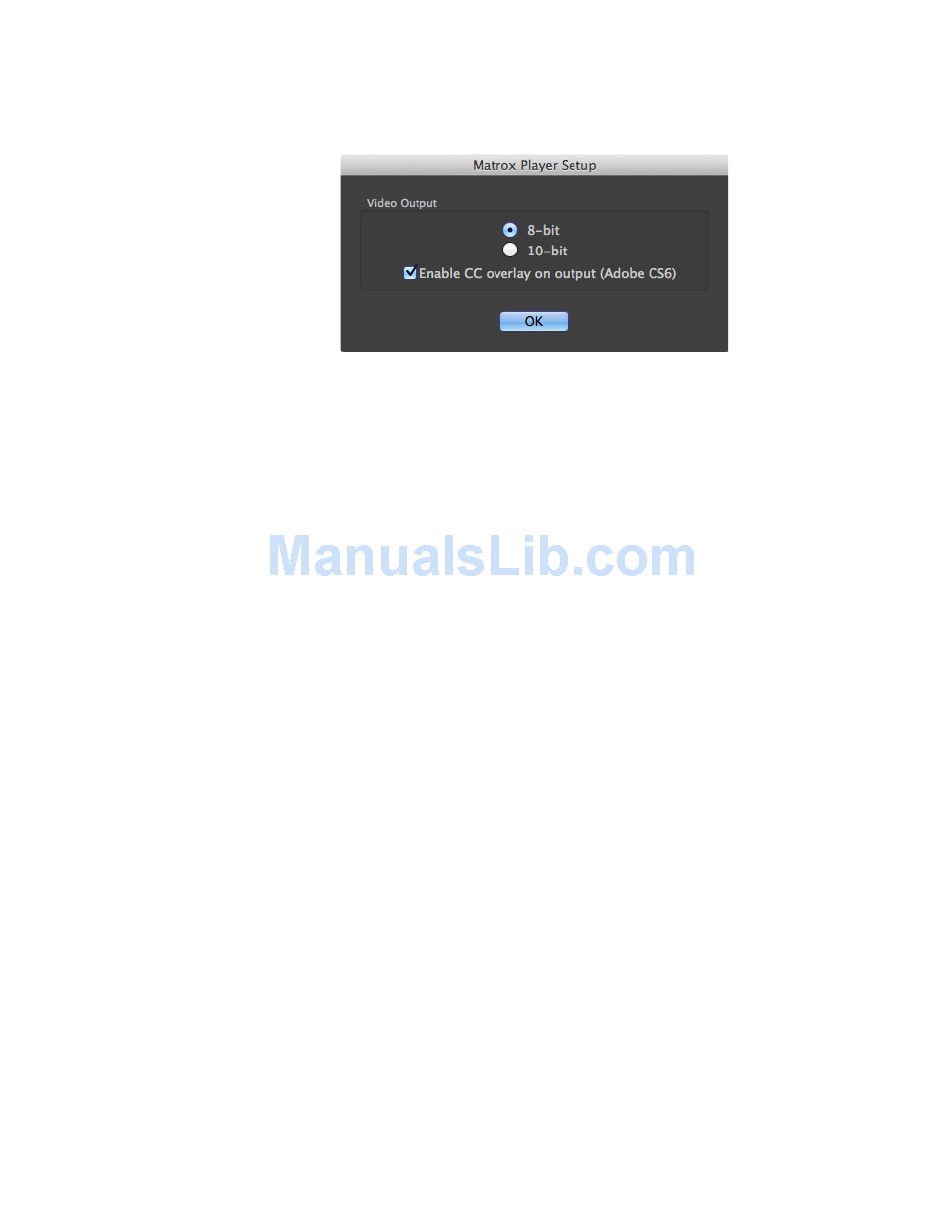

settings, make sure to select the Enable CC overlay on output (Adobe
option in the Matrox Player Setup dialog.
CS6)
From the Program monitor pop-up menu, choose Closed Captioning
b
Display > Enable
Play back your sequence.
c

Setting up Matrox device control

Matrox device control lets you control any device that supports the RS-422
SMPTE time code protocol when capturing or exporting material to tape in
Adobe Premiere Pro. To use device control, you must connect your source device
or recorder as follows:
• MXO2, MXO2 Rack, and MXO2 LE Connect the RS-422 connector on
your MXO2 hardware to the serial device control port on your source device
or recorder using an RS-422 serial cable (see
connection"
on page 17,
page 28, or
"MXO2 LE RS-422 serial connection"
¦ Note
When using an analog RS-422 device on MXO2, MXO2 Rack, or
MXO2 LE, you must genlock to an external broadcast-quality analog sync
source. If you're using an SDI RS-422 device and you don't have an external
broadcast-quality analog sync source, you can genlock to your SDI video
source for capture. For export to tape, you can set your genlock source to the
MXO2 internal reference and configure the setting on your deck to genlock
to the SDI video input. For details on how to set your genlock source, see
"Specifying your genlock settings"
• MXO2 Mini MXO2 Mini does not feature an RS-422 serial connector.
You can, however, use a suitable serial adapter to connect the serial device
port on your source device or recorder to your computer. For a list of
supported device control adapters, see the Matrox MXO2 Support section of
our website at www.matrox.com/video/support.
on page 82. When specifying your playback
.
"MXO2 Rack RS-422 serial connection"
on page 54.
Working with Adobe Premiere Pro
"Defining
"MXO2 RS-422 serial
on page 37).
99
on
