Typical Matrox MXO2 Mini connections

In the following typical connection examples, we've connected a monitor to view
the signal that will be recorded, and separate source and record decks. You may,
however, use the same deck as both your source and record device by making the
input and output connections to a single deck. For details on the Matrox MXO2
Mini connectors, see

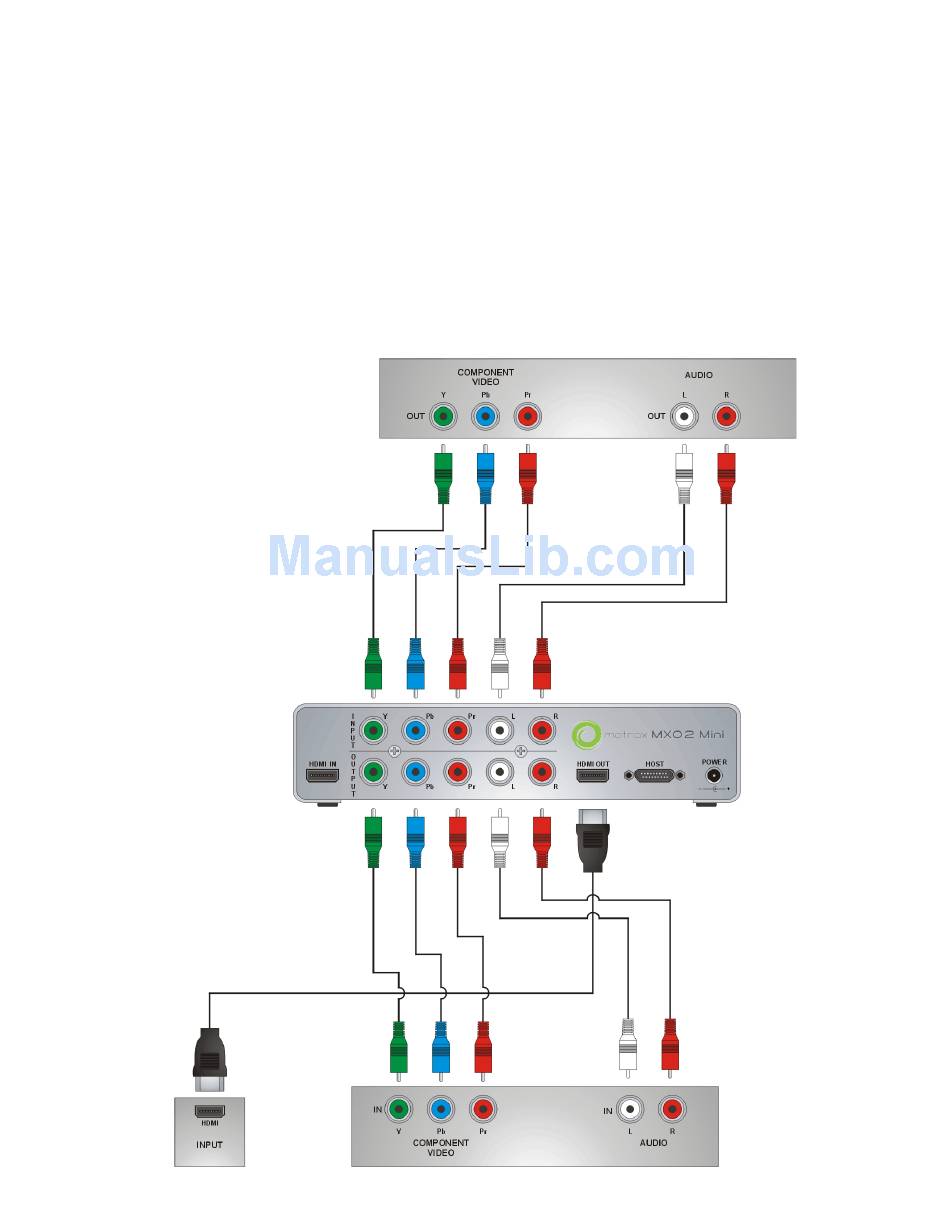

Analog component video connections

In this illustration, we're using component connectors for video, RCA connectors
for audio, and an HDMI connector for video monitoring. The video is genlocked
to the input source using MXO2 Mini's built-in genlock.
MXO2 Mini
HDMI
monitor
Chapter 6, Connecting External Devices to Matrox MXO2 Mini
Appendix B, "Matrox MXO2
Source
(Deck 1)
Connectors."
Recorder
(Deck 2)
