Using Matrox MXO2 Dock

For instructions on how to connect and use Matrox MXO2 Dock, see
E, "Connecting and Using Matrox MXO2 Dock,"

Using the Matrox MXO2 Thunderbolt adapter

Use the Matrox MXO2 Thunderbolt adapter to connect MXO2 Rack to your
computer's Thunderbolt port. When doing this, it may take up to ten seconds for
your MXO2 Rack to be detected by your system and its applications.
¡ Important Make sure that the Matrox PCIe cable is connected to the adapter
and MXO2 Rack before connecting the adapter to your computer via the
Thunderbolt cable. If you want to disconnect or connect MXO2 Rack when your
system is running, you must do it by disconnecting/connecting the Thunderbolt
cable. Do not disconnect the Matrox PCIe cable from the adapter, or MXO2
Rack, when your Mac system is running.

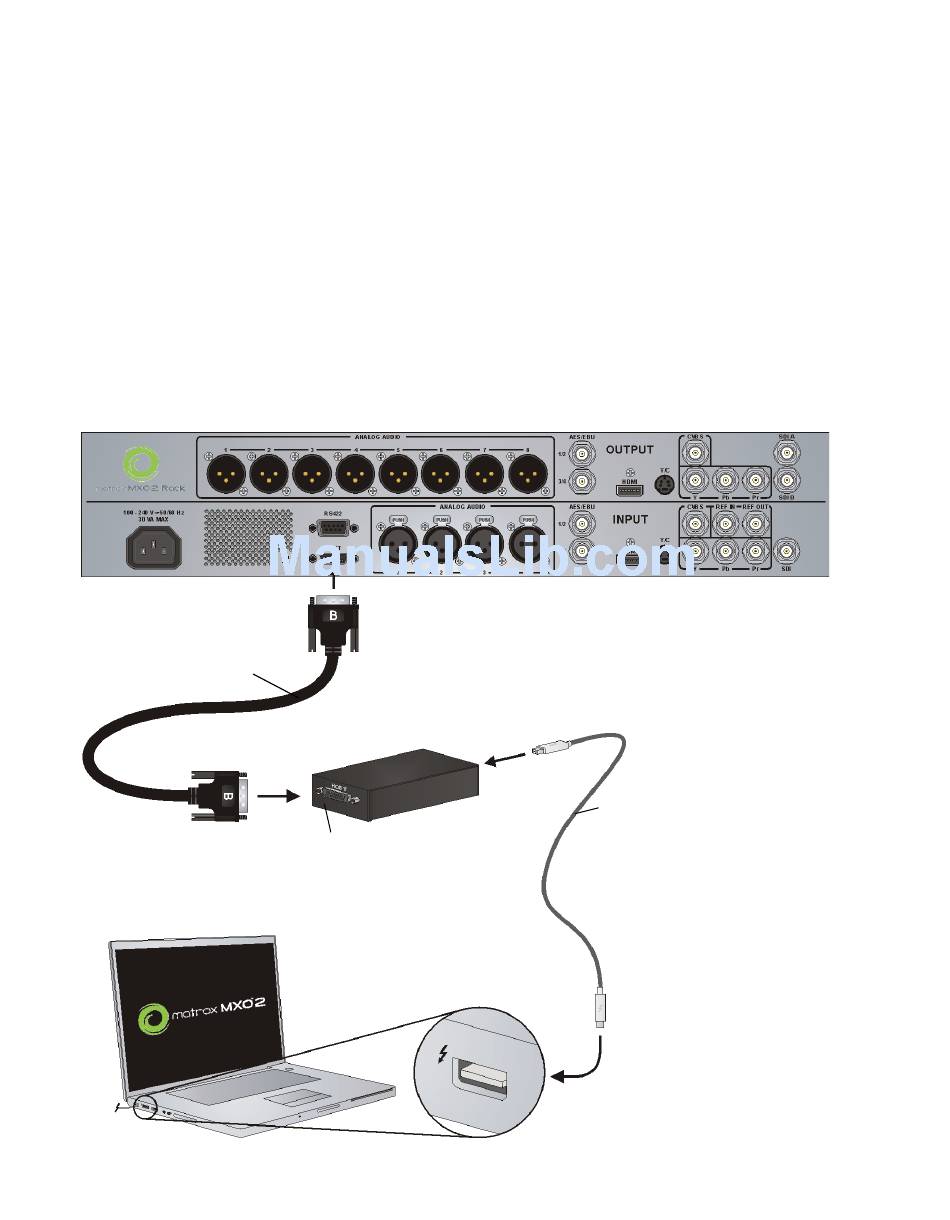

MXO2 Rack
PCIe cable
Chapter 4, Connecting External Devices to Matrox MXO2 Rack
²Caution To ensure functionality and avoid
damaging the PCIe cable or host connector,
you must connect the PCIe cable as shown in
"Ensuring proper PCIe cable connection"
page 25.
Matrox MXO2
Thunderbolt adapter
on page 185.
Thunderbolt cable
(Not included. A
Thunderbolt cable is
required to connect the
Matrox MXO2 Thunderbolt
adapter to your computer.)
To your computer's
Thunderbolt port.
