46

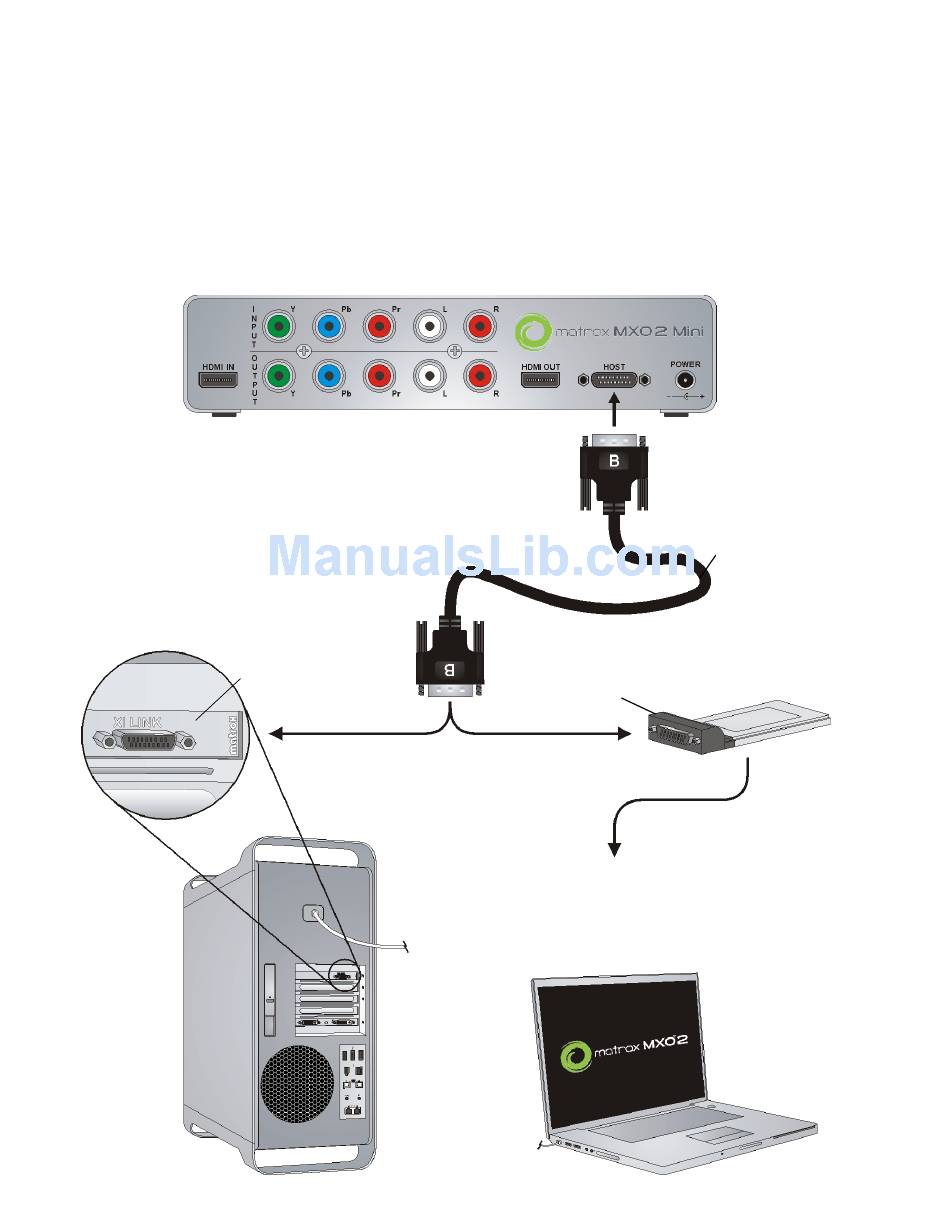

Using the Matrox PCIe host adapters

For MXO2 Mini to be detected on a Mac desktop system, power must be
supplied to MXO2 Mini (see
be connected to your computer before starting up your system.
¡ Important Do not disconnect the Matrox PCIe cable from the adapter, or
MXO2 Mini, when your Mac system is running. To safely remove the Matrox
PCIe host Expresscard/34 adapter, see
ExpressCard/34 adapter"
²Caution To ensure functionality and
Chapter 6, Connecting External Devices to Matrox MXO2 Mini
on page 8.
avoid damaging the PCIe cable or host
connector, you must connect the PCIe cable
as shown in "Ensuring proper PCIe cable
connection" on page 44.
Matrox PCIe
host adapter
"Powering MXO2 Mini"
"Removing your PCIe host
Matrox PCIe host
ExpressCard/34
adapter
OR
To your laptop's ExpressCard/34
slot (see "Installing your PCIe host
ExpressCard/34 adapter (for
laptops)" on page 7).
on page 42), and it must
MXO2 Mini
PCIe cable
