Using Matrox MXO2 Dock

For instructions on how to connect and use Matrox MXO2 Dock, see
E, "Connecting and Using Matrox MXO2 Dock,"

Using the Matrox MXO2 Thunderbolt adapter

Use the Matrox MXO2 Thunderbolt adapter to connect MXO2 to your
computer's Thunderbolt port. When doing this, it may take up to ten seconds for
your MXO2 to be detected by your system and its applications.
¡ Important Make sure that the Matrox PCIe cable is connected to the adapter
and MXO2 before connecting the adapter to your computer via the Thunderbolt
cable. If you want to disconnect or connect MXO2 when your system is running,
you must do it by disconnecting/connecting the Thunderbolt cable. Do not
disconnect the Matrox PCIe cable from the adapter, or MXO2, when your Mac
system is running.

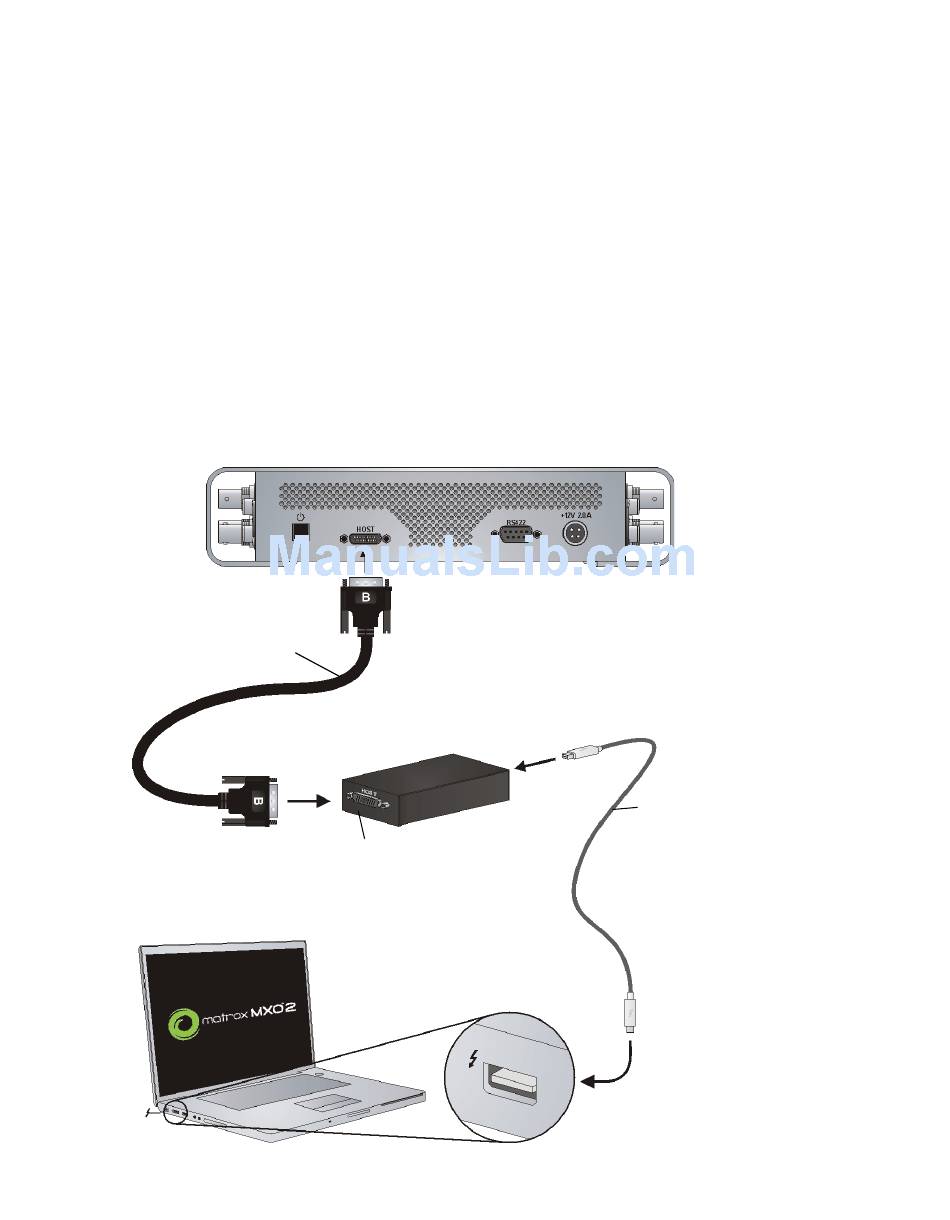

PCIe cable
²Caution
damaging the PCIe cable or host connector, you
must connect the PCIe cable as shown in
"Ensuring proper PCIe cable connection"
page 14.
Matrox MXO2
Thunderbolt adapter
Connecting MXO2 to your Mac system
on page 185.
MXO2
(side view)
To ensure functionality and avoid
Thunderbolt cable
(Not included. A
Thunderbolt cable is
required to connect the
Matrox MXO2 Thunderbolt
adapter to your computer.)
To your computer's
Thunderbolt port.
15
Appendix
on
