Matrox MXO2 Installation And User Manual page 31

shut down your Mac system. That is, when you shut down your Mac system, your
MXO2 turns off. Starting up your Mac system turns your MXO2 on. To manually
turn your MXO2 on, press the power button. To turn off your MXO2, press and
hold the power button for at least two seconds.
¡ Important When MXO2 is connected to a Mac system that is running, do not
disconnect MXO2 from its power source, or power off MXO2. Shut down your
Mac system before removing power from MXO2. If using a battery to power
MXO2, ensure that the battery is sufficiently charged.

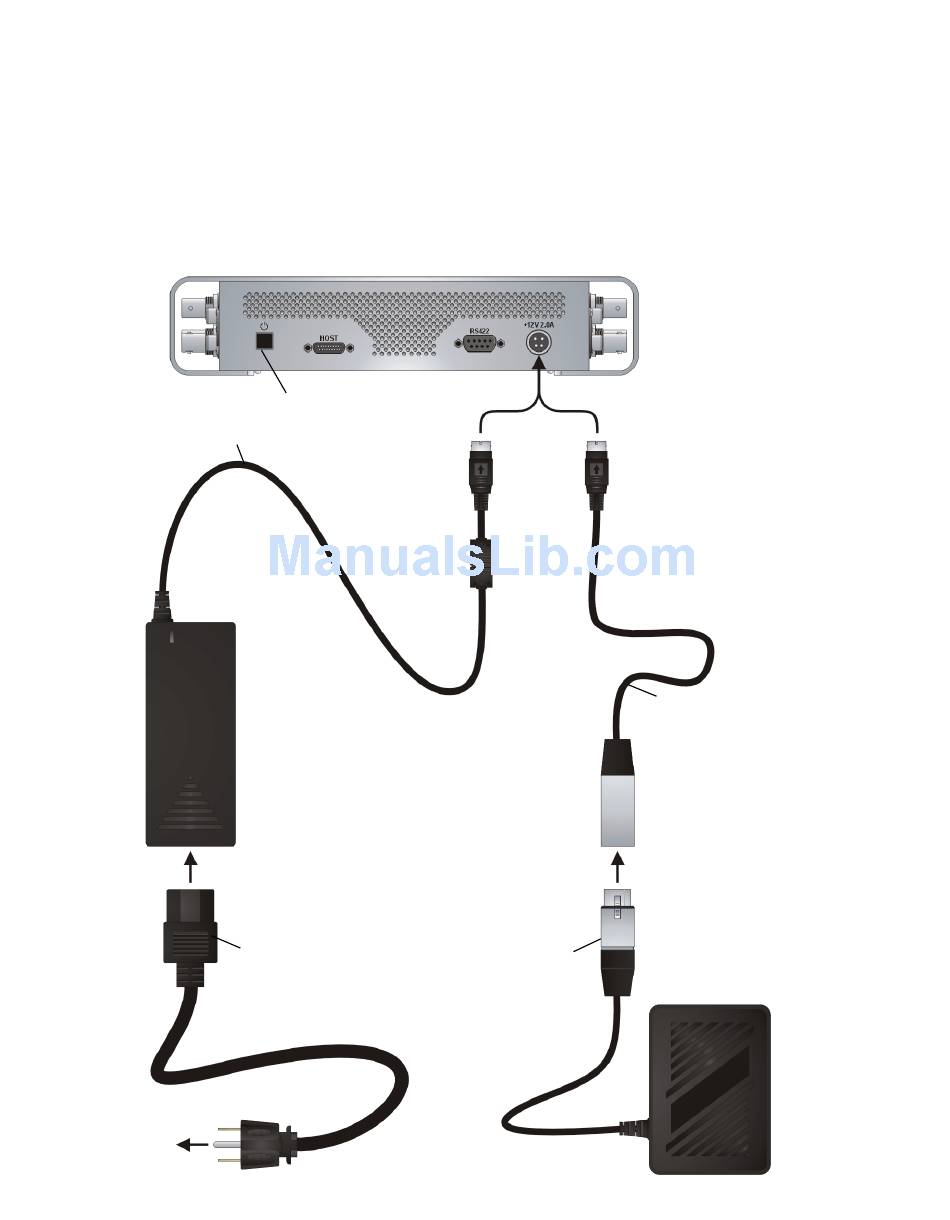

Power button
External
power supply
Power cord
To AC
outlet
OR
²Caution When
Female 4-pin
XLR cable
MXO2
(side view)
disconnecting the power
supply from MXO2,
make sure that you slide
back the casing on the
connector to release the
locking mechanism.
Matrox battery
power cable
Battery on a
universal battery
adapter
Powering MXO2
13
