Digital video connections

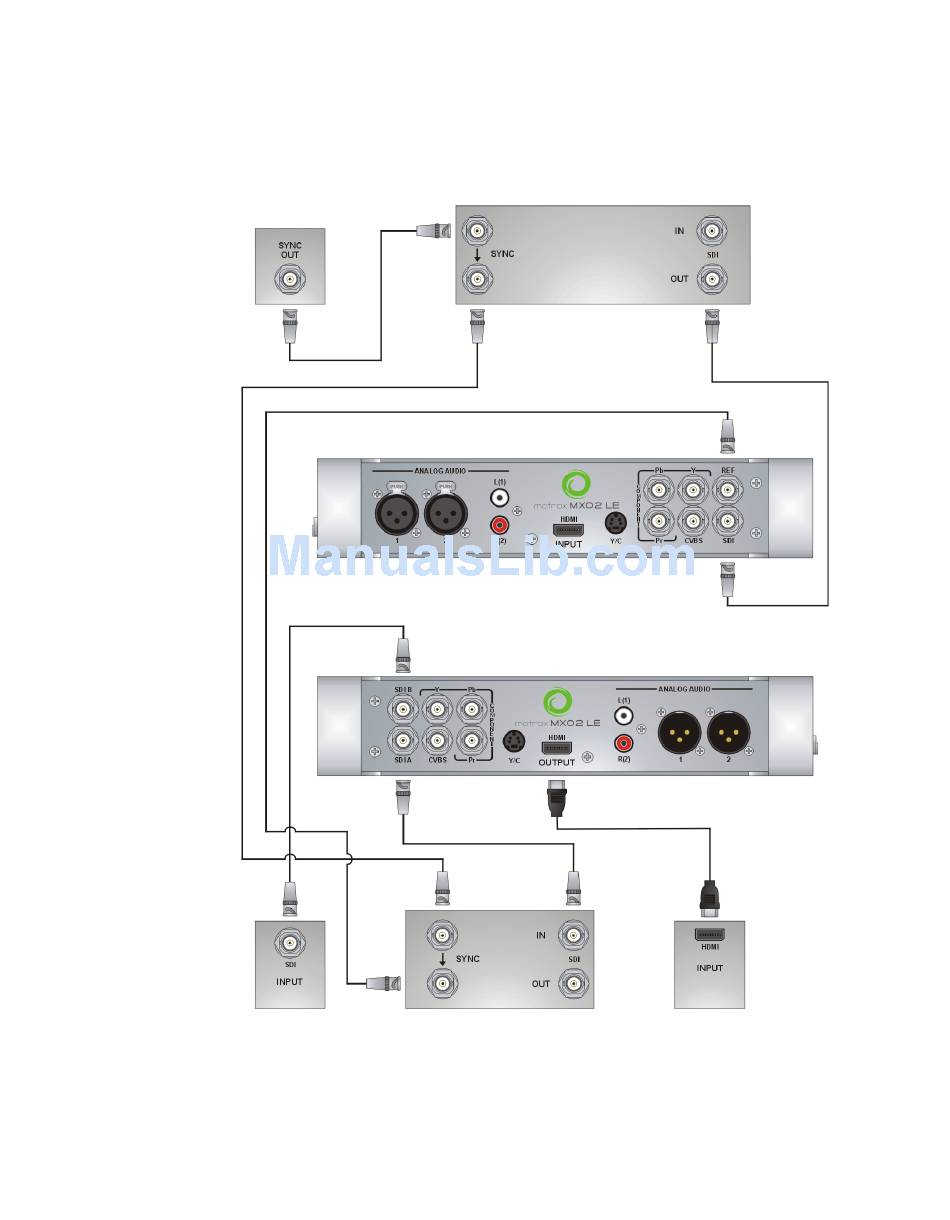

In this illustration, we're using SDI connectors for video and audio, an SDI
connector for video monitoring, and we're monitoring the audio on a surround
sound speaker system through an HDMI connector. The video is genlocked using
a tri-level sync generator.
Tri-level
sync
generator
Video monitor
MXO2 LE Inputs
MXO2 LE Outputs
Recorder (Deck 2)
Typical Matrox MXO2 LE connections
Source
(Deck 1)
Surround sound
speaker system
39
