Output connector descriptions (MXO2 Mini)

This section describes the Matrox MXO2 Mini outputs. For other MXO2
products, see
HD to SD downscaling, SD to HD upscaling, and cross conversion are supported
on all video outputs simultaneously. To select your video output settings, see
"Specifying your video output settings"
track in your video application to any MXO2 Mini audio output (see
your audio output settings"
can output from the MXO2 Mini outputs, see
MXO2 outputs"
¦ Note
Analog A/V cables connected to Matrox MXO2 Mini must be limited to
less than three meters to comply with EEC and EMC directives.

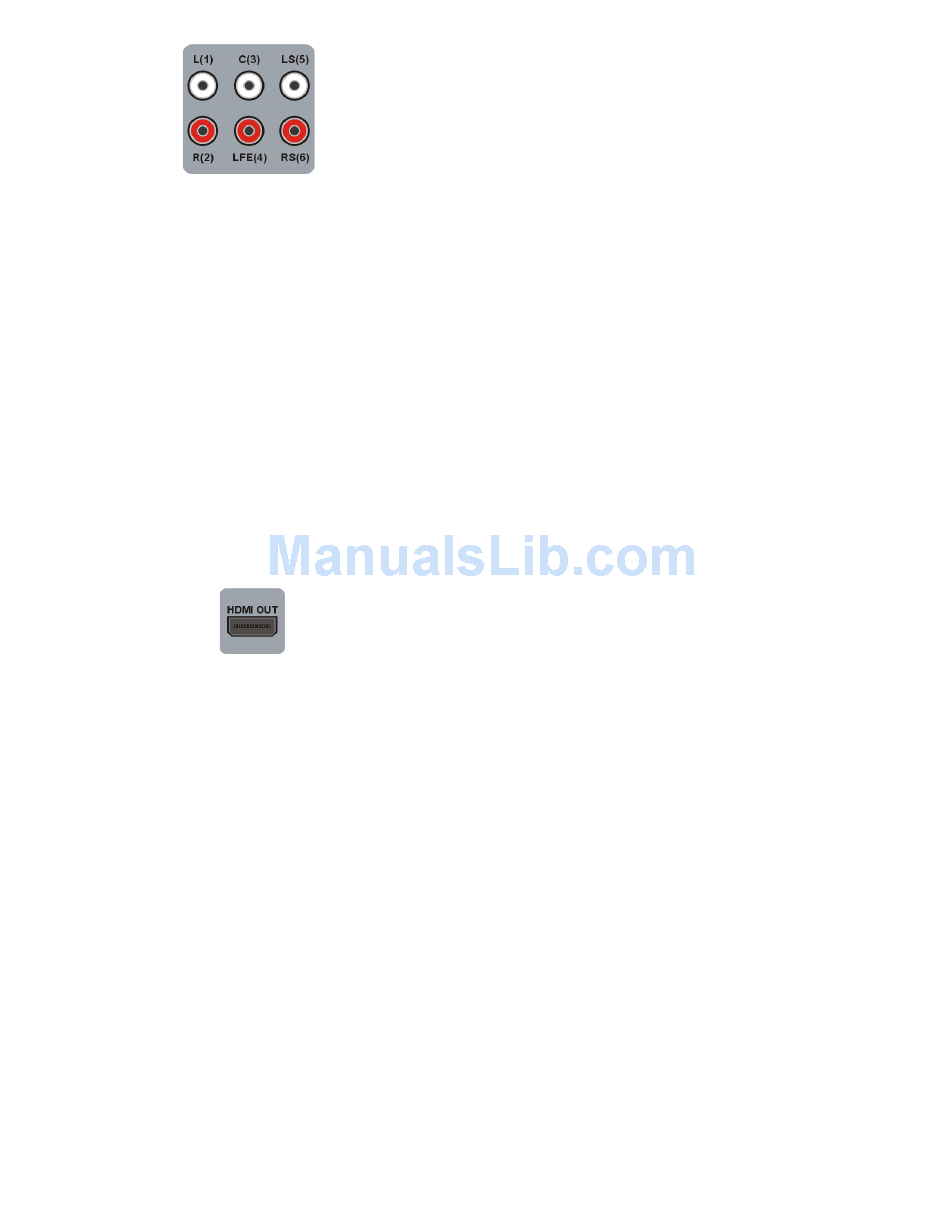

Analog audio (unbalanced) Provide outputs for unbalanced
analog audio. Matrox MXO2 offers outputs for channels one to
six, or three stereo pairs suitable for 5.1 surround sound
monitoring. Connect RCA cables to a VTR, audio mixer,
speakers, or other audio device.
"Output connector descriptions"
on page 62). For a list of the video formats that you
on page 184.
HDMI Provides an output for HD/SD HDMI video, and up to
eight channels of embedded audio, to a digital HDMI device.
HDCP is not supported on this output. This output supports 1:1
pixel mapping for accurate monitoring on your HDMI display
of NTSC, PAL, 1280×720, and 1920 ×1080 video. Connect a
standard HDMI video/audio cable to an HDMI monitor, VTR,
or other digital HDMI device. You can also connect directly to a
home theatre system for surround sound monitoring.
¦ Note The HDMI output supports YUV and RGB
devices.
HDMI monitor calibration is available through this output. Use
the Matrox HDMI Calibration Utility to calibrate your HDMI
monitor (see Chapter 8, "Calibrating Your HDMI Monitor for
Video").
on page 169.
on page 58. You can also map any audio
"Video formats supported on
171
"Specifying
Outputs
