Replacing the Controller Port

TOOLS:
5mm Nutspinner
PARTS USED:
MW00016-01 2x D Connectors Hexagonal Sockets
PROCEDURE:

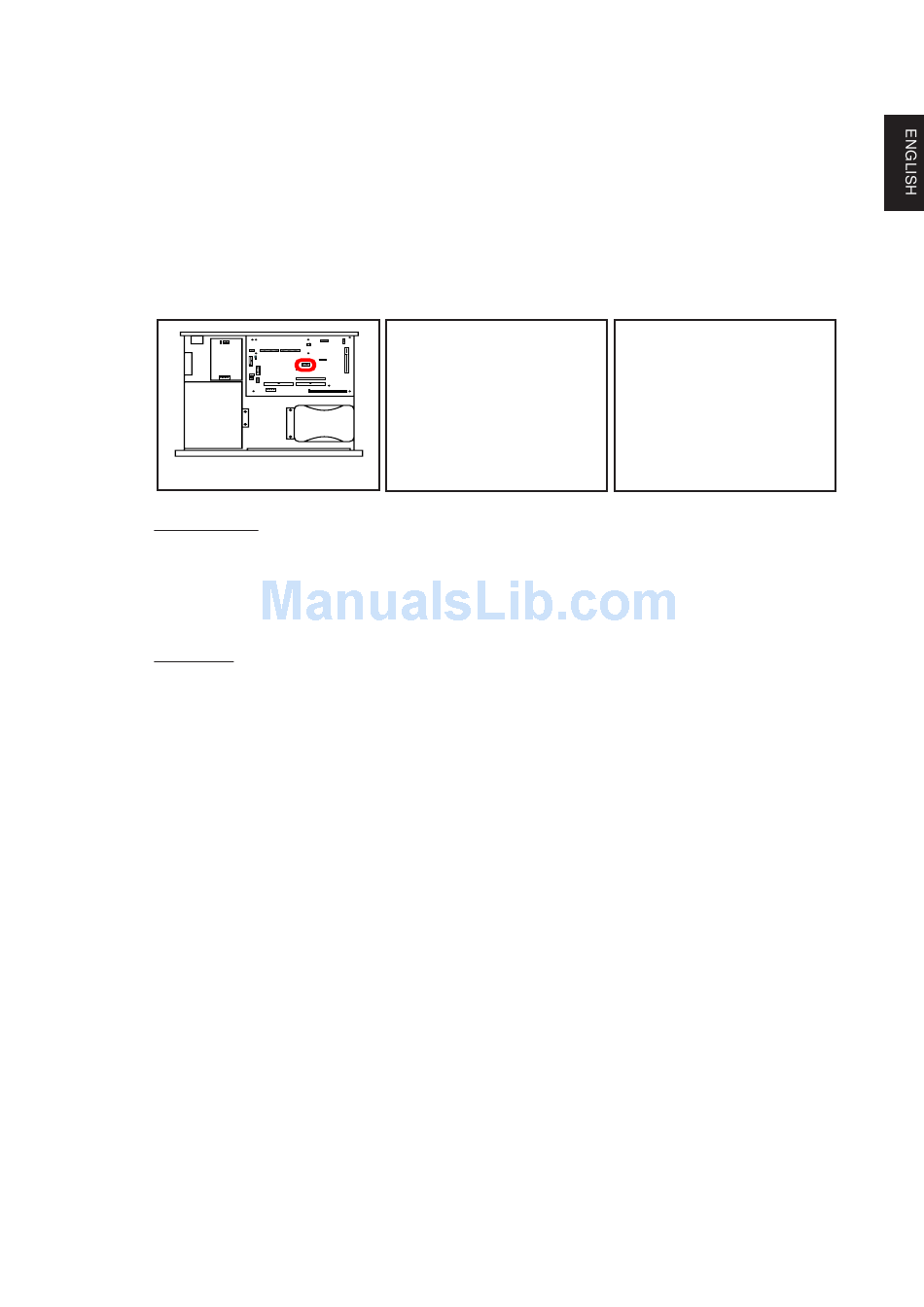

figure 1
Disassembly
1. Remove the two hexagonal screws from the controller port on the rear of the unit with the
Nutspinner.
2. Remove the controller port cable from the motherboard serial port socket marked PL20. (See
page *DA_MOTHERBOARD_LAYOUT* for motherboard layout)
Assembly
1. Connect the controller port cable to the motherboard where the socket is marked serial port
and PL20. (See page *DA_MOTHERBOARD_LAYOUT* for motherboard layout)
2. Insert the D-connector into the rear panel and use 2x hexagonal screws to secure the cable to
the chassis.
figure 2
35
figure 3
