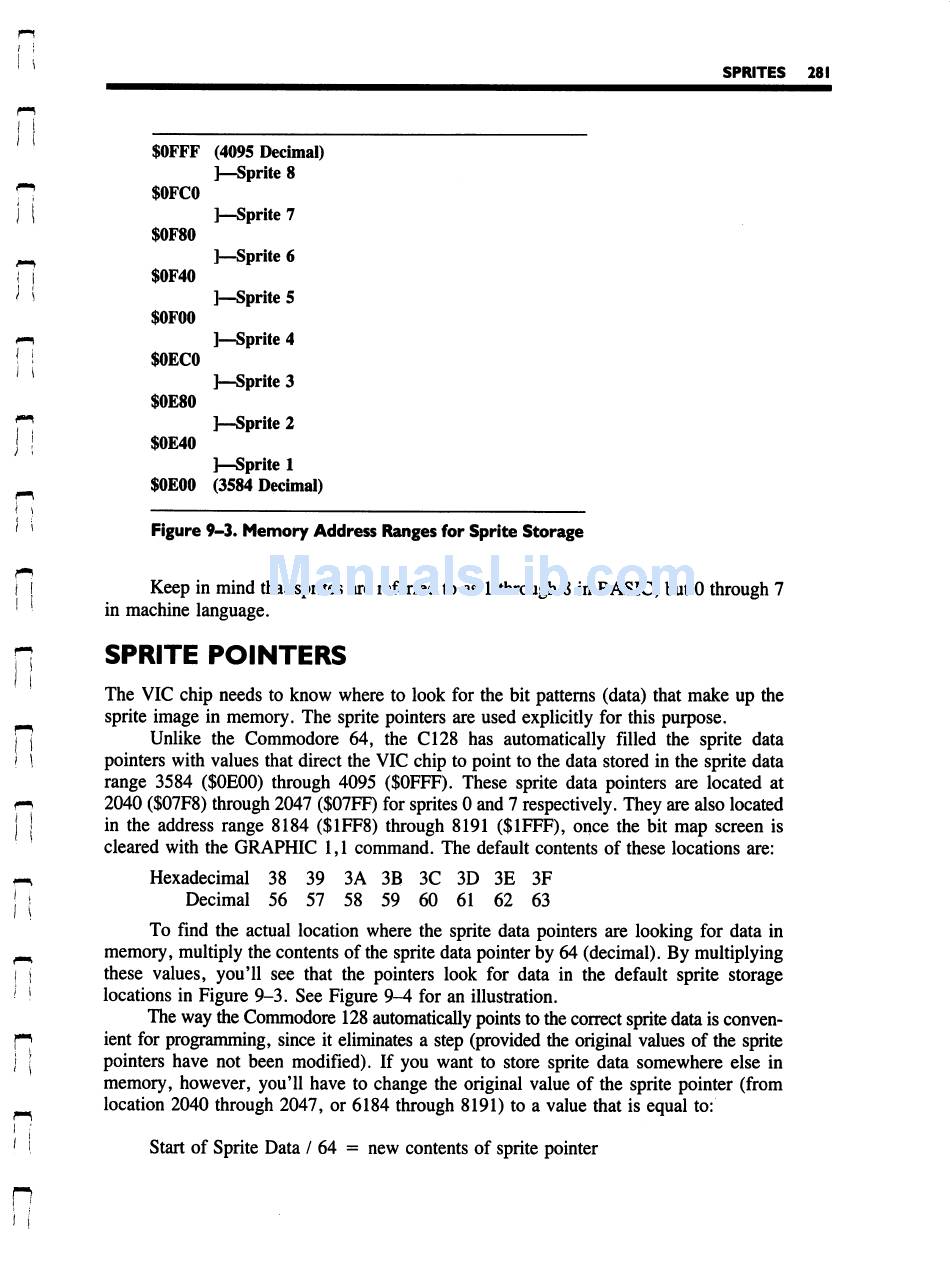

SPRITES 281
$OFFF (4095 Decimal)
]—Sprite 8
R $0FC0
| I ]-Sprite7
$0F80
^ ]—Sprite 6
j i $0F40
i \ ]—Sprites
$0F00
<-^ ]—Sprite 4
! $0EC0
[ ]—Sprite 3
$0E80
P ]—Sprite 2
j ! $0E40
]—Sprite 1
_ $0£00 (3584 Decimal)
' ' Figure 9-3. Memory Address Ranges for Sprite Storage
i | Keep in mind that sprites are referred to as 1 through 8 in BASIC, but 0 through 7
! • in machine language.
q SPRITE POINTERS
The VIC chip needs to know where to look for the bit patterns (data) that make up the
sprite image in memory. The sprite pointers are used explicitly for this purpose.
R Unlike the Commodore 64, the C128 has automatically filled the sprite data
f 1 pointers with values that direct the VIC chip to point to the data stored in the sprite data
range 3584 ($0E00) through 4095 ($0FFF). These sprite data pointers are located at
r-> 2040 ($07F8) through 2047 ($07FF) for sprites 0 and 7 respectively. They are also located
j I in the address range 8184 ($1FF8) through 8191 ($1FFF), once the bit map screen is
cleared with the GRAPHIC 1,1 command. The default contents of these locations are:
r-s Hexadecimal 38 39 3A 3B 3C 3D 3E 3F
| i Decimal 56 57 58 59 60 61 62 63
To find the actual location where the sprite data pointers are looking for data in
^ memory, multiply the contents of the sprite data pointer by 64 (decimal). By multiplying
| j these values, you'll see that the pointers look for data in the default sprite storage
• ; ! locations in Figure 9-3. See Figure 9-4 for an illustration.
The way the Commodore 128 automatically points to the correct sprite data is conven-
f""J ient for programming, since it eliminates a step (provided the original values of the sprite
j I pointers have not been modified). If you want to store sprite data somewhere else in
memory, however, you'll have to change the original value of the sprite pointer (from
location 2040 through 2047, or 6184 through 8191) to a value that is equal to:
1 ( Start of Sprite Data / 64 = new contents of sprite pointer
