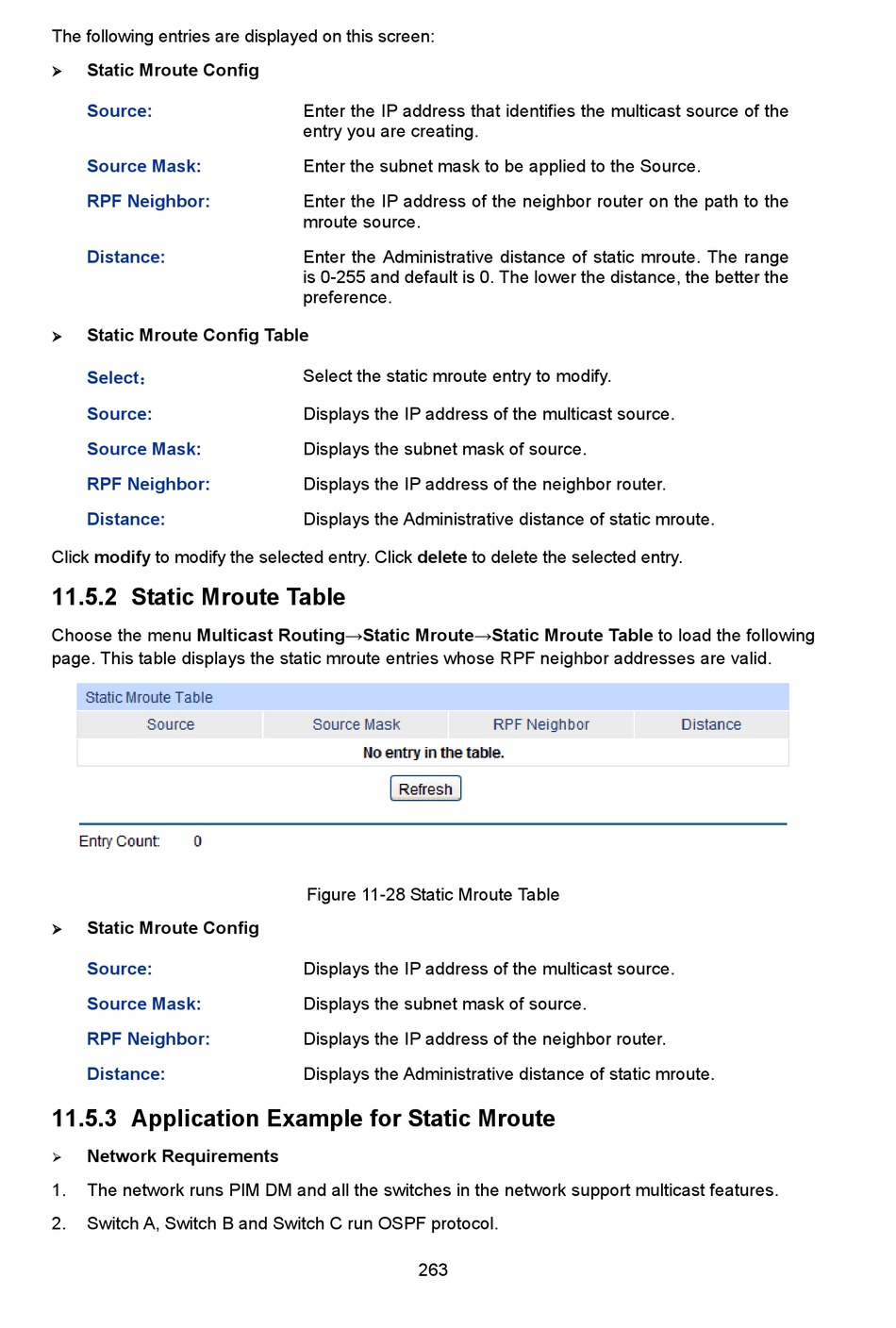

The following entries are displayed on this screen:
Static Mroute Config

Source:
Source Mask:
RPF Neighbor:
Distance:
Static Mroute Config Table

Select：
Source:
Source Mask:
RPF Neighbor:
Distance:
Click modify to modify the selected entry. Click delete to delete the selected entry.

11.5.2 Static Mroute Table

Choose the menu Multicast Routing→Static Mroute→Static Mroute Table to load the following
page. This table displays the static mroute entries whose RPF neighbor addresses are valid.
Static Mroute Config

Source:
Source Mask:
RPF Neighbor:
Distance:

11.5.3 Application Example for Static Mroute

Network Requirements

1. The network runs PIM DM and all the switches in the network support multicast features.
2. Switch A, Switch B and Switch C run OSPF protocol.
Enter the IP address that identifies the multicast source of the
entry you are creating.
Enter the subnet mask to be applied to the Source.
Enter the IP address of the neighbor router on the path to the
mroute source.
Enter the Administrative distance of static mroute. The range
is 0-255 and default is 0. The lower the distance, the better the
preference.
Select the static mroute entry to modify.
Displays the IP address of the multicast source.
Displays the subnet mask of source.
Displays the IP address of the neighbor router.
Displays the Administrative distance of static mroute.
Figure 11-28 Static Mroute Table
Displays the IP address of the multicast source.
Displays the subnet mask of source.
Displays the IP address of the neighbor router.
Displays the Administrative distance of static mroute.
263
