If you are using an access concentration device that cannot handle VLAN IDs,
6.
select one of the available Access Concentrator Query options:
"
When managing from the network side, the following devices must be
assigned an IP address on the same subnet as the USG. You must
remove "old" concentrator types before entering new ones.
Tut Systems Expresso
! ! ! !
Lucent DSL Terminator
! ! ! !
Tut MDU Lite Systems
! ! ! !
RFC1493 Compliant Systems
! ! ! !
RiverDelta 1000B
! ! ! !
Elastic Networks
! ! ! !
These options enable an SNMP query to "ask" the access concentration device
which card, slot, or port the information is coming from. The information can
then be "sent to" and "billed by" the PMS. You must enter the IP address (not
name) and SNMP community of all access concentrators connected to the site.

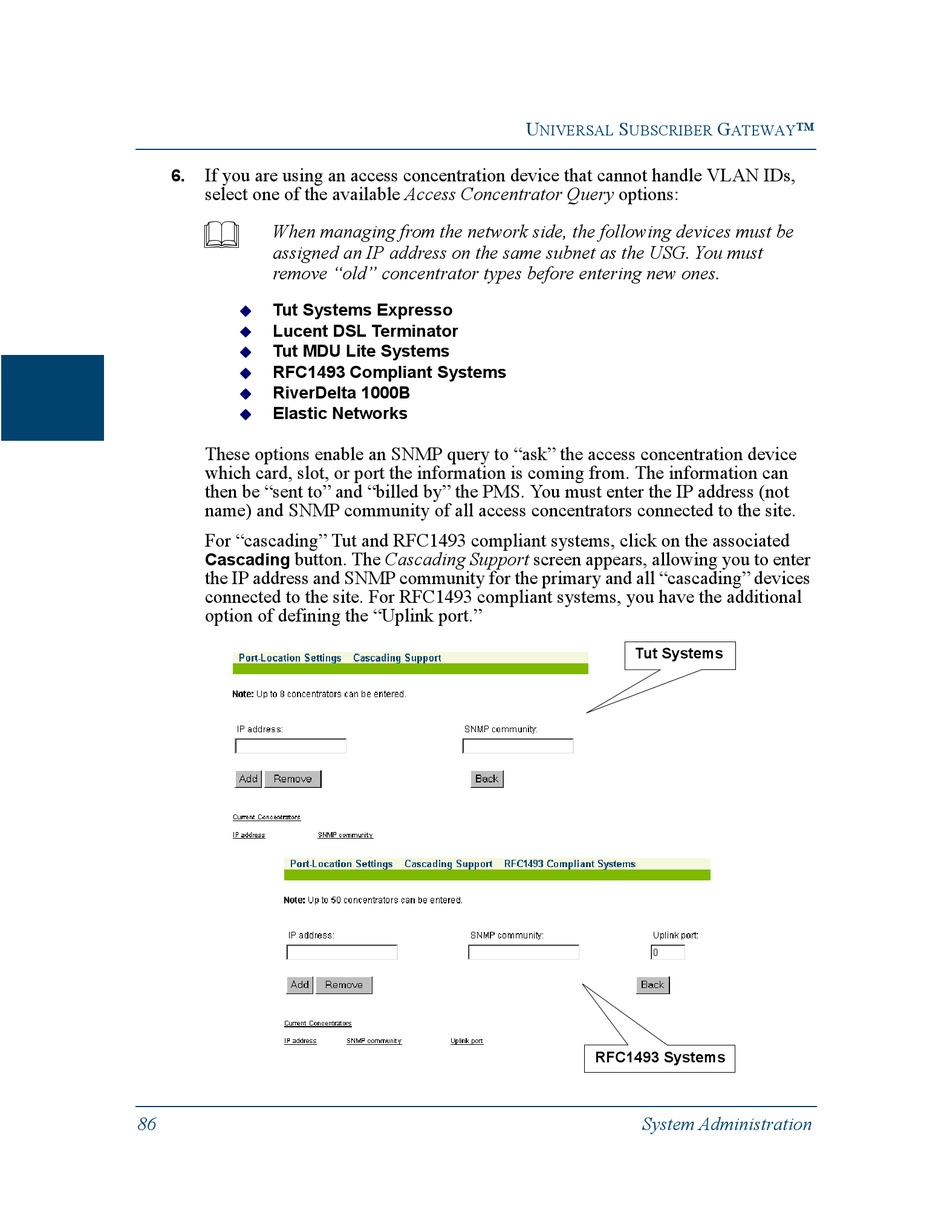

For "cascading" Tut and RFC1493 compliant systems, click on the associated
button. The Cascading Support screen appears, allowing you to enter
Cascading
the IP address and SNMP community for the primary and all "cascading" devices
connected to the site. For RFC1493 compliant systems, you have the additional
option of defining the "Uplink port."
86
U S
NIVERSAL UBSCRIBER
Tut Systems
RFC1493 Systems
System Administration
