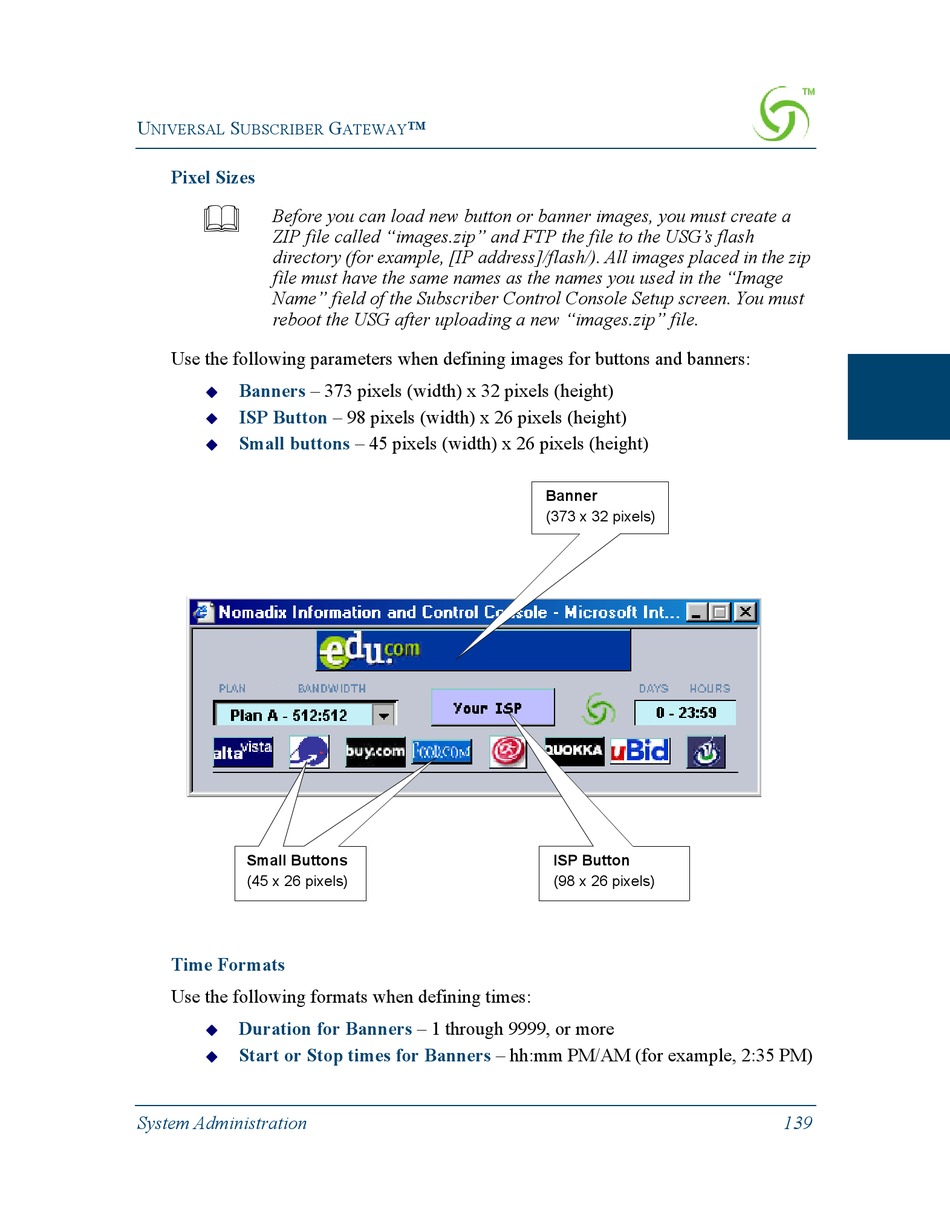

Pixel Sizes

"
Before you can load new button or banner images, you must create a
ZIP file called "images.zip" and FTP the file to the USG's flash
directory (for example, [IP address]/flash/). All images placed in the zip
file must have the same names as the names you used in the "Image
Name" field of the Subscriber Control Console Setup screen. You must
reboot the USG after uploading a new "images.zip" file.
Use the following parameters when defining images for buttons and banners:
Banners – 373 pixels (width) x 32 pixels (height)
! ! ! !
ISP Button
! ! ! !
Small buttons
! ! ! !
Small Buttons
(45 x 26 pixels)

Time Formats

Use the following formats when defining times:
Duration for Banners
! ! ! !
Start or Stop times for Banners
! ! ! !
System Administration
G ™
ATEWAY
– 98 pixels (width) x 26 pixels (height)
– 45 pixels (width) x 26 pixels (height)
– 1 through 9999, or more
– hh:mm PM/AM (for example, 2:35 PM)
Banner
(373 x 32 pixels)
ISP Button
(98 x 26 pixels)
