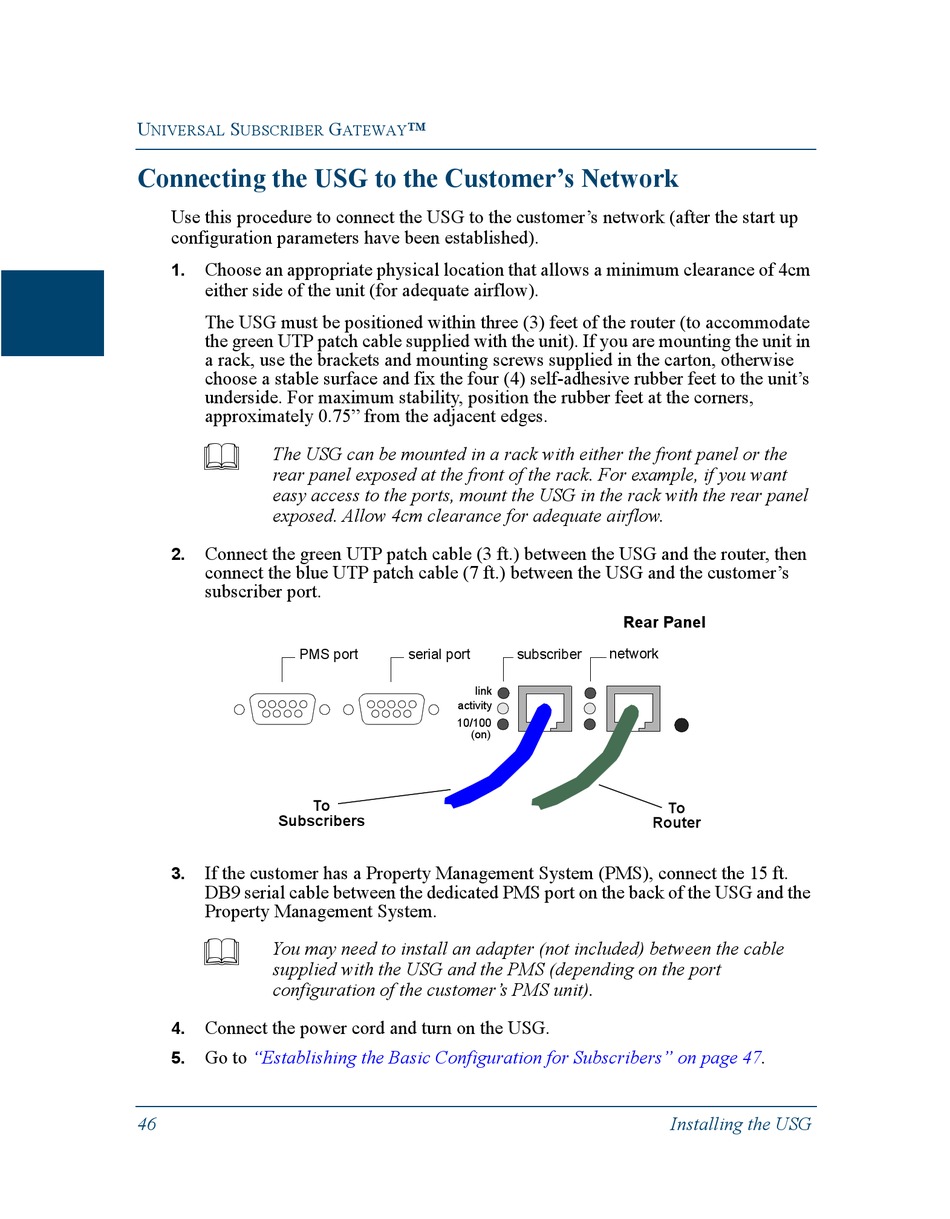

Connecting the USG to the Customer's Network
Use this procedure to connect the USG to the customer's network (after the start up
configuration parameters have been established).
Choose an appropriate physical location that allows a minimum clearance of 4cm
1.
either side of the unit (for adequate airflow).
The USG must be positioned within three (3) feet of the router (to accommodate
the green UTP patch cable supplied with the unit). If you are mounting the unit in
a rack, use the brackets and mounting screws supplied in the carton, otherwise
choose a stable surface and fix the four (4) self-adhesive rubber feet to the unit's
underside. For maximum stability, position the rubber feet at the corners,
approximately 0.75" from the adjacent edges.
"
The USG can be mounted in a rack with either the front panel or the
rear panel exposed at the front of the rack. For example, if you want
easy access to the ports, mount the USG in the rack with the rear panel
exposed. Allow 4cm clearance for adequate airflow.
Connect the green UTP patch cable (3 ft.) between the USG and the router, then
2.
connect the blue UTP patch cable (7 ft.) between the USG and the customer's
subscriber port.
PMS port
To
Subscribers
If the customer has a Property Management System (PMS), connect the 15 ft.
3.
DB9 serial cable between the dedicated PMS port on the back of the USG and the
Property Management System.
"
You may need to install an adapter (not included) between the cable
supplied with the USG and the PMS (depending on the port
configuration of the customer's PMS unit).
Connect the power cord and turn on the USG.
4.
Go to
"Establishing the Basic Configuration for Subscribers" on page
5.
46
G
™
ATEWAY
serial port
link
activity
10/100
(on)
Rear Panel
subscriber
network
To
Router
Installing the USG
47.
