Process Flow (AAA)

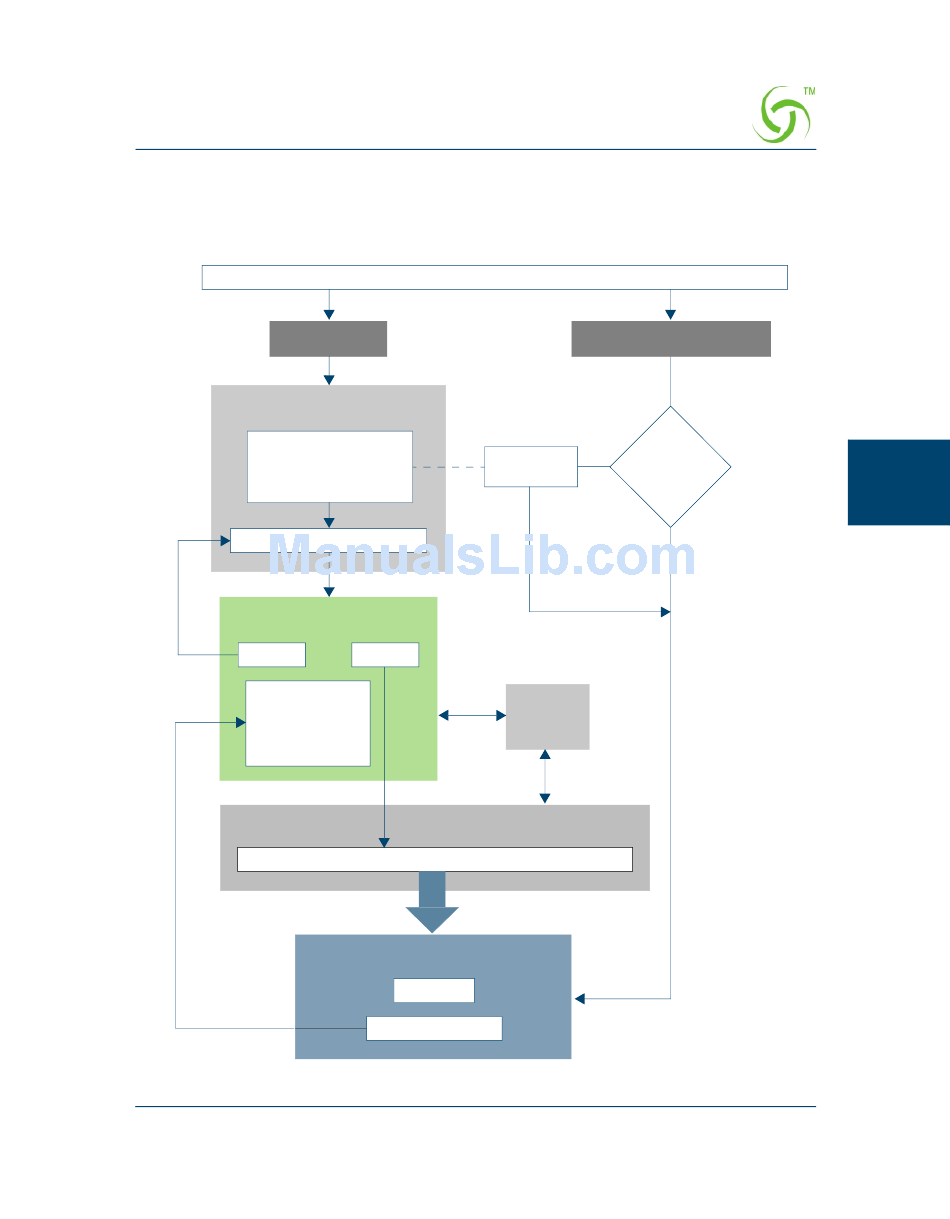

The following flowchart outlines the AAA and billing process. All actions depicted in
the chart are administered and tracked by the USG.
USG detects connection and verifies user against authorization table
New User
Login Page
Specify lease time
required, and
choose a user ID and
password
Provide credit card details
Credit Card Server
Reject
Bill for goods
and services,
and credit
provider's bank
account
Internet and local online services
The Subscriber Interface
G ™
ATEWAY
Purchase
more time
Accept
Internal or External Web Server
Solution Provider's Portal Page
Browsing
Online purchases
Existing Subscriber
Yes
Lease time
has expired
No
Billing
Mirror
Server
