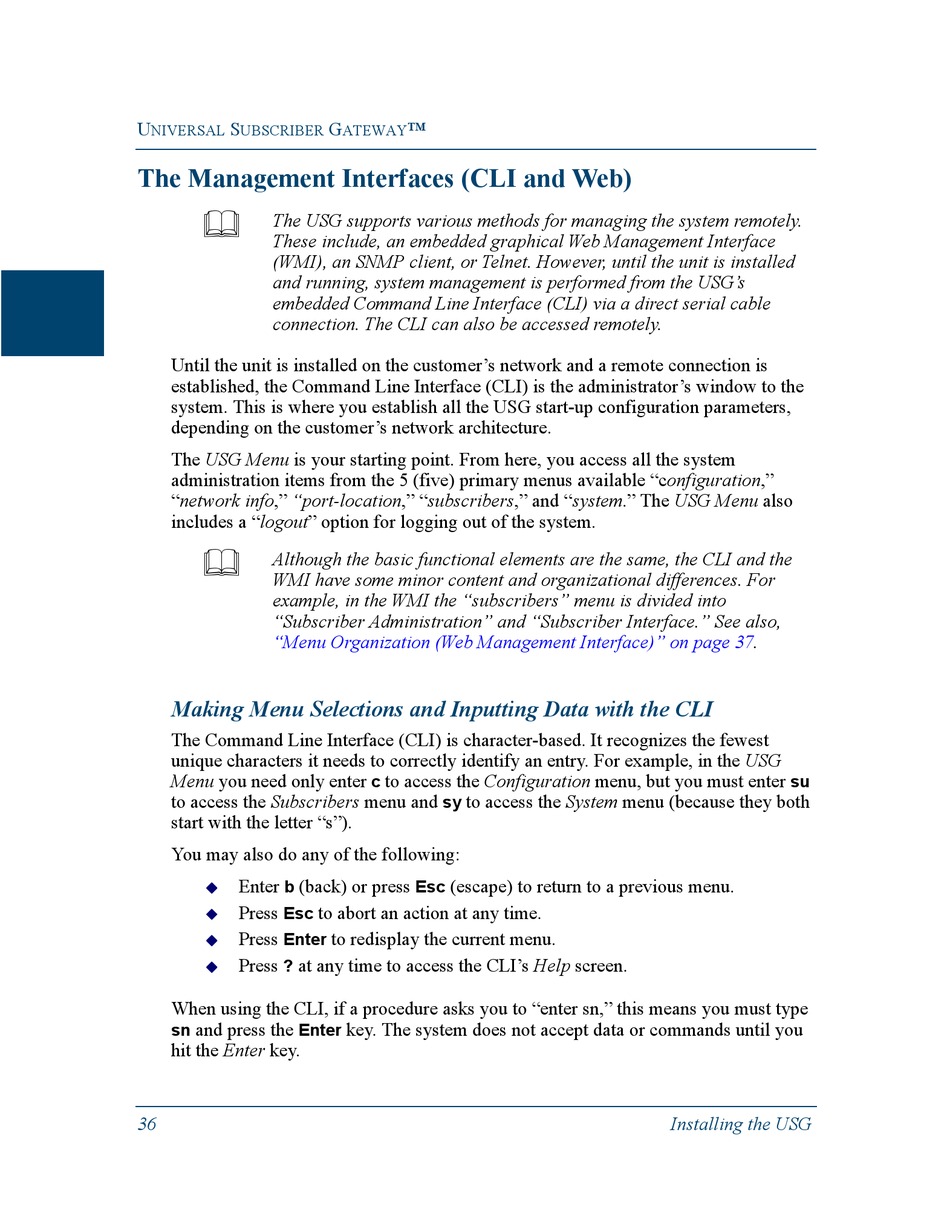

The Management Interfaces (CLI and Web)

"
The USG supports various methods for managing the system remotely.
These include, an embedded graphical Web Management Interface
(WMI), an SNMP client, or Telnet. However, until the unit is installed
and running, system management is performed from the USG's
embedded Command Line Interface (CLI) via a direct serial cable
connection. The CLI can also be accessed remotely.
Until the unit is installed on the customer's network and a remote connection is
established, the Command Line Interface (CLI) is the administrator's window to the
system. This is where you establish all the USG start-up configuration parameters,
depending on the customer's network architecture.
The USG Menu is your starting point. From here, you access all the system
administration items from the 5 (five) primary menus available "configuration,"
"network info," "port-location," "subscribers," and "system." The USG Menu also
includes a "logout" option for logging out of the system.
"
Although the basic functional elements are the same, the CLI and the
WMI have some minor content and organizational differences. For
example, in the WMI the "subscribers" menu is divided into
"Subscriber Administration" and "Subscriber Interface." See also,
"Menu Organization (Web Management Interface)" on page

Making Menu Selections and Inputting Data with the CLI

The Command Line Interface (CLI) is character-based. It recognizes the fewest
unique characters it needs to correctly identify an entry. For example, in the USG
Menu you need only enter
to access the Subscribers menu and
start with the letter "s").
You may also do any of the following:
Enter (back) or press
b
! ! ! !
Press
Esc
! ! ! !
Press
Enter
! ! ! !
Press at any time to access the CLI's Help screen.
?
! ! ! !
When using the CLI, if a procedure asks you to "enter sn," this means you must type
and press the
sn Enter
hit the Enter key.
36
G ™
ATEWAY
to access the Configuration menu, but you must enter
c
to access the System menu (because they both
sy
(escape) to return to a previous menu.
Esc
to abort an action at any time.
to redisplay the current menu.
key. The system does not accept data or commands until you
37.
su
