6A1 – 10 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

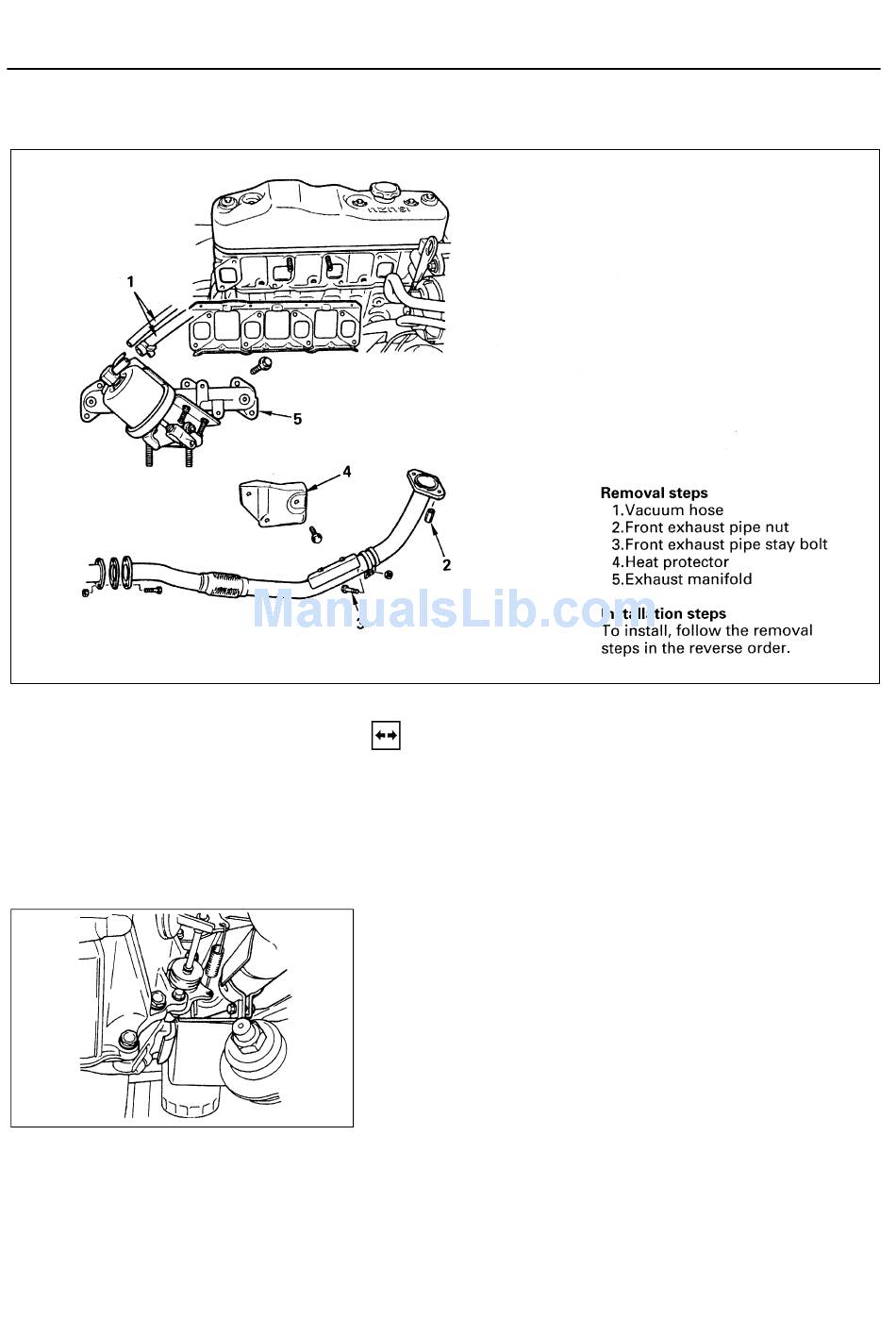

EXHAUST MANIFOLD

REMOVAL
Preparation:
•
1. Vacuum Hose (Exhaust Brake Model)
•
2. Front Exhaust Pipe Nut
•
3. Front Exhaust Pipe Stay Bolt
6A1-10-2.tif
4. Heat Protector
5. Exhaust Manifold
•
Disconnect battery ground cable.
Remove the vacuum actuator hose.
Remove the fixing nuts from exhaust manifold side.
Remove the manifold bolt and nut, then remove the
manifold and gasket.
6A1-10-1.tif
